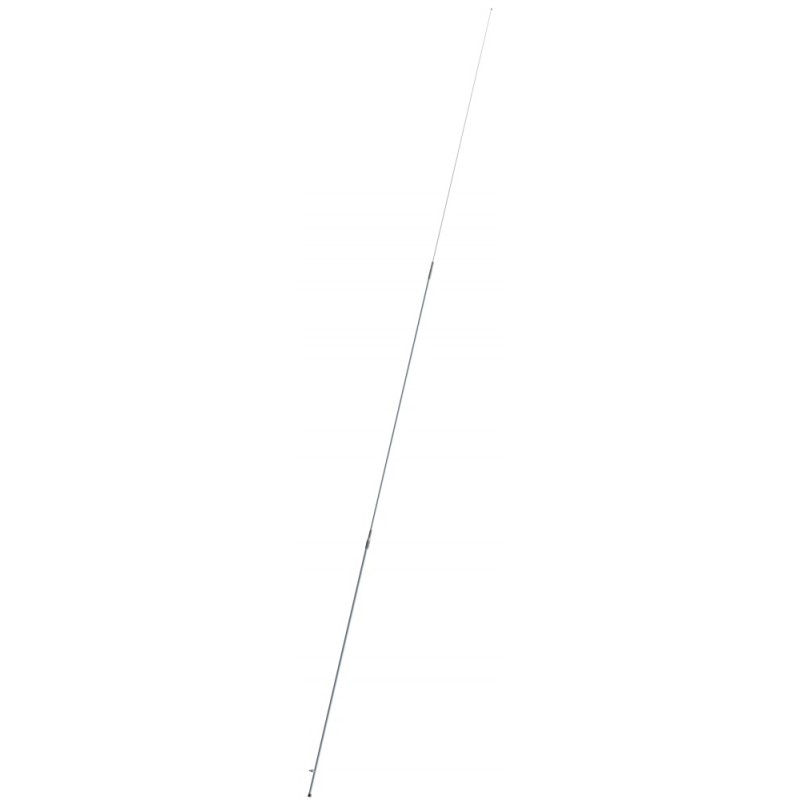

Scan Antenna HF6000 TX/RX 6 m three-part LF/HF Fibreglass Antenna, carton tube, without brackets (13600-002)

Details

• High-quality 6 m HF antenna designed for professional use.
• Specifically engineered for GMDSS installations to ensure reliable maritime communication.
• Rugged construction for long-lasting performance in demanding environments.
• Chrome-plated solid brass joints provide enhanced durability and secure connections.
• Designed for rail mounting and side-fed via open single wire for straightforward installation.
• Offers a full omni-directional radiation pattern for comprehensive signal coverage.

Packaging Information

• Type: Carton tube
• Size: Ø 60 x 2250 mm
• Weight: Approx. 3.4 kg

Electrical Specifications

• Frequency: 1.4–30 MHz (MF and HF)
• Polarization: Vertical
• Max. Input Power: 750 W PEP
• Static Capacitance: 70 pF
• Insulation Resistance: 10 GOhm
• Electric Length: 5950 mm

Mechanical Specifications

• Color: White
• Height: 6 m
• Weight: 2.3 kg
• Diameter: Ø 21 to Ø 5 mm
• Mounting: Rail Bracket Kit (Small) P/N 10000-153 (not supplied)
• Mounting Place: Suitable for rail or pole installations (Ø 30–90 mm)
• Mounting Instruction: Provided with the product
• Materials: PU-painted heavy-duty fiberglass tubes and chromed solid brass for exceptional durability
• Survival Wind Speed: Withstands up to 55 m/s (125 mph)
• Operating Temperature: Functional in temperatures ranging from -55°C to +70°C (IEC 60068-2-1 and IEC 60068-2-2 compliant)
• Connector: Screw terminal for reliable connections
• Cable: Not included (use open single wire)
• Serial No.: Clearly marked on the product label

Ordering Information

• P/N: 13600-002 (Packaged in a carton tube, without brackets)
