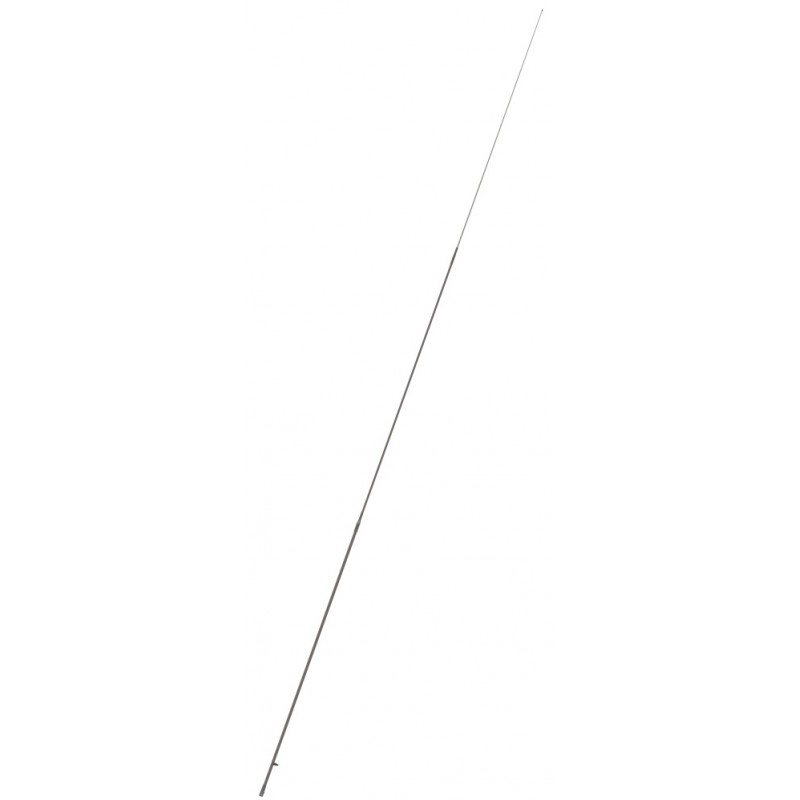

Scan Antenna HF6001 TX/RX 6 m three-part LF/HF Fibreglass Antenna with 1''-14NF threaded base (13600-082)

Details

• High-quality 6 m HF antenna tailored for professional use.
• Specifically designed for GMDSS installations to ensure dependable maritime communication.
• Features a rugged design for durability in challenging environments.
• Chrome-plated solid brass joints enhance structural reliability and performance.
• Mounting compatible with a 4-Way Mount and Upper Support Bracket (not supplied) for convenient lay-down functionality.
• Side-fed via open single wire for straightforward integration.
• Provides a full omni-directional radiation pattern for optimal signal coverage.

Packaging Information

• Type: Carton tube
• Size: Ø 60 x 2900 mm
• Weight: Approx. 3.5 kg

Electrical Specifications

• Frequency: 1.4–30 MHz (MF and HF)
• Polarization: Vertical
• Max. Input Power: 750 W PEP
• Static Capacitance: 70 pF
• Insulation Resistance: 10 GOhm
• Electric Length: 5950 mm

Mechanical Specifications

• Color: White
• Height: 6 m
• Weight: 2.4 kg
• Diameter: Ø 21 to Ø 5 mm
• Mounting: Suitable for deck or wall installations using a ratchet mount and upper support bracket (not supplied)
• Mounting Place: Deck or wall mounting
• Mounting Instruction: Supplied with the product
• Materials: PU-painted heavy-duty fiberglass tubes and chromed solid brass for robust durability
• Survival Wind Speed: Withstands winds up to 55 m/s (125 mph)
• Operating Temperature: Functional between -55°C and +70°C (IEC 60068-2-1 and IEC 60068-2-2 compliant)
• Connector: Screw terminal for reliable electrical connections
• Cable: Not included (use open single wire)
• Serial No.: Clearly displayed on the product label

Ordering Information

• P/N: 13600-082
