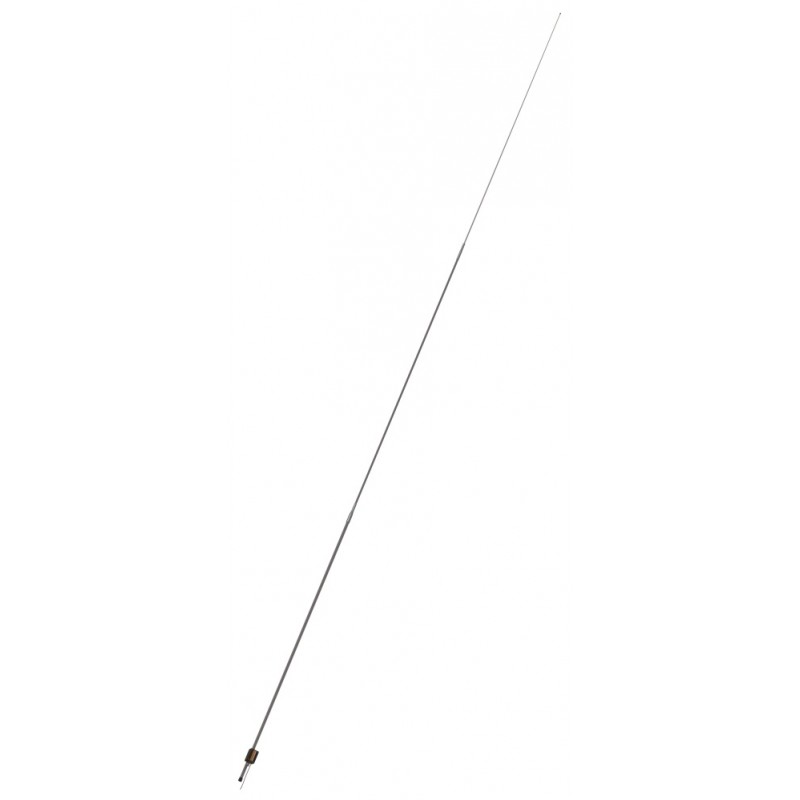

Scan Antenna HF6200 RX 6 m three-part LF/HF Fibreglass Antenna with coaxial connection box, Without brackets (13620-002)
zoom_out_map
chevron_left chevron_right
New

Scan Antenna HF6200 RX 6 m three-part LF/HF Fibreglass Antenna with coaxial connection box, Without brackets (13620-002)

High-quality 6 m HF antenna designed for professional use. P/N: 13620-002

467.89 $
Tax included

380.4 $ net price (non-EU countries)

Karol Łoś
Product Manager
English / Polski
+48603969934
+48507526097
[email protected]

Description

Details

  • High-quality 6 m HF antenna designed for professional use.
  • Includes a built-in matching transformer for low-frequency receiving applications.
  • Rugged construction ensures durability and reliability.
  • Chrome-plated solid brass joints provide enhanced stability and performance.
  • Designed for rail mounting, making it versatile for various installations.
  • Fed via a screw terminal inside the connection box, compatible with standard coaxial cables (Ø 5–10 mm).
  • Offers a full omni-directional receiving pattern for comprehensive signal coverage.



Packaging Information

  • Type: Carton tube
  • Size: Ø 86 x 2100 mm
  • Weight: Approx. 4.8 kg



Electrical Specifications

  • Frequency: 0.15–30 MHz (LF, MF, and HF)
  • Impedance: 50 Ohm
  • Polarization: Vertical
  • Max. Input Power: N/A (Receive only)
  • Static Capacitance: 70 pF
  • Insulation Resistance: 10 GOhm
  • Electric Length: 5950 mm

Mechanical Specifications

  • Color: White
  • Height: 6 m
  • Weight: 2.6 kg
  • Diameter: Ø 21 to Ø 5 mm
  • Mounting: Compatible with Rail Bracket Kit (Small) P/N 10000-153 (not supplied)
  • Mounting Place: Suitable for rail or pole installations (Ø 30–90 mm)
  • Mounting Instruction: Supplied with the product
  • Materials: Constructed with PU-painted heavy-duty fiberglass tubes and chromed solid brass for enhanced durability
  • Survival Wind Speed: Designed to withstand wind speeds up to 55 m/s (125 mph)
  • Operating Temperature: Functional within a range of -55°C to +70°C (compliant with IEC 60068-2-1 and IEC 60068-2-2)
  • Connector: Screw terminal inside the connection box
  • Cable: Not included (use standard coaxial cable Ø 5–10 mm)
  • Serial No.: Clearly marked on the product label

Ordering Information

  • P/N: 13620-002 (Without brackets)
