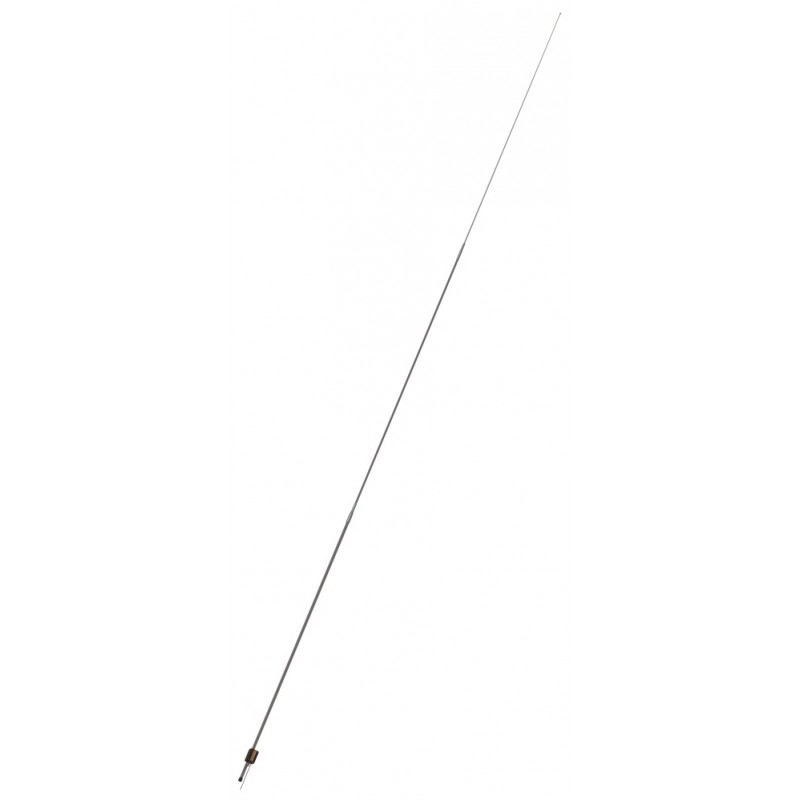

Scan Antenna HF6200 RX 6 m three-part LF/HF Fibreglass Antenna, With brackets (13620-012)

Details

• High-quality 6 m HF antenna designed for professional use.
• Includes a built-in matching transformer for low-frequency receiving applications.
• Rugged construction ensures durability and reliability.
• Chrome-plated solid brass joints provide enhanced stability and performance.
• Designed for rail mounting, making it versatile for various installations.
• Offers a full omni-directional receiving pattern for comprehensive signal coverage.

Packaging Information

• Type: Carton tube
• Size: Ø 86 x 2100 mm
• Weight: Approx. 4.8 kg

Electrical Specifications

• Frequency: 0.15–30 MHz (LF, MF, and HF)
• Impedance: 50 Ohm
• Polarization: Vertical
• Max. Input Power: N/A (Receive only)
• Static Capacitance: 70 pF
• Insulation Resistance: 10 GOhm
• Electric Length: 5950 mm

Mechanical Specifications

• Color: White
• Height: 6 m
• Weight: 2.6 kg
• Diameter: Ø 21 to Ø 5 mm
• Mounting: Compatible with Rail Bracket Kit (Small)
• Mounting Place: Suitable for rail or pole installations (Ø 30–90 mm)
• Mounting Instruction: Supplied with the product
• Materials: Constructed with PU-painted heavy-duty fiberglass tubes and chromed solid brass for enhanced durability
• Survival Wind Speed: Designed to withstand wind speeds up to 55 m/s (125 mph)
• Operating Temperature: Functional within a range of -55°C to +70°C (compliant with IEC 60068-2-1 and IEC 60068-2-2)
• Cable: Not included (use standard coaxial cable Ø 5–10 mm)
• Serial No.: Clearly marked on the product label

Ordering Information

• P/N: 13620-012 (With brackets)
