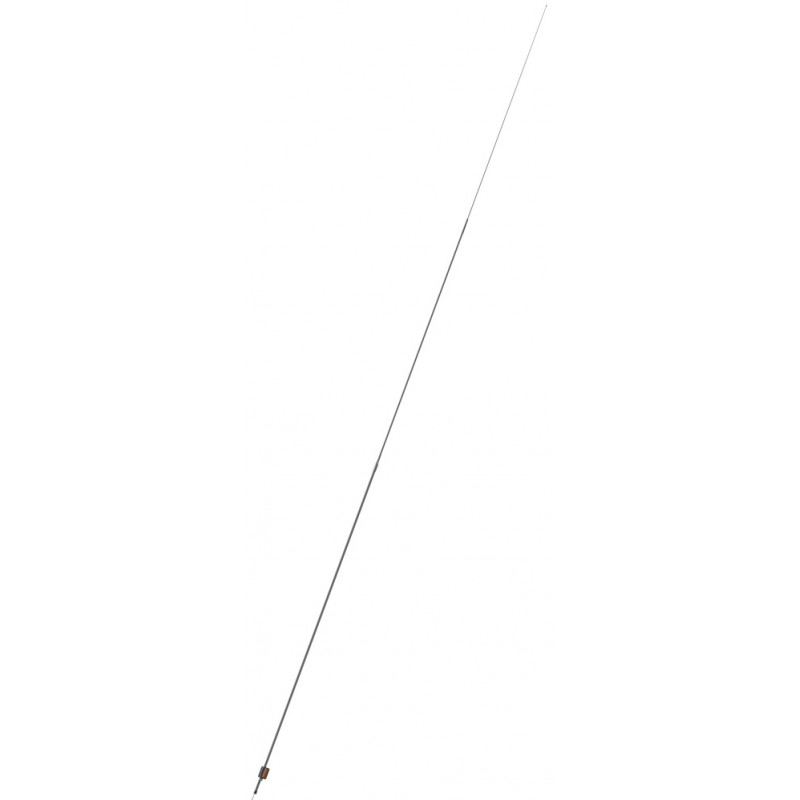

Scan Antenna HF7100 TX/RX 7 m three-part LF/HF Fibreglass Antenna with coaxial connection box, With brackets (13710-012)

Details

• High-quality 7 m HF antenna designed for professional use.
• Specifically engineered for GMDSS installations, ensuring reliable maritime communication.
• Rugged construction provides enhanced durability for demanding environments.
• Chrome-plated solid brass joints deliver superior structural integrity and long-lasting performance.
• Designed for rail mounting, offering flexibility and ease of installation.
• Fed via a screw terminal inside the connection box, compatible with standard coaxial cable (Ø 5–10 mm).
• Features a full omni-directional radiation pattern for complete signal coverage.

Packaging Information

• Type: Carton tube
• Size: Ø 86 x 2990 mm
• Weight: Approx. 5.9 kg

Electrical Specifications

• Frequency: 1.4–30 MHz (MF and HF)
• Polarization: Vertical
• Max. Input Power: 1000 W PEP
• Static Capacitance: 80 pF
• Insulation Resistance: 10 GOhm
• Electric Length: 6800 mm

Mechanical Specifications

• Color: White
• Height: 7 m
• Weight: 2.9 kg
• Diameter: Ø 21 to Ø 5 mm
• Mounting: Compatible with Rail Bracket Kit (Small)
• Mounting Place: Suitable for rail or pole installations (Ø 30–90 mm)
• Mounting Instruction: Provided with the product
• Materials: PU-painted heavy-duty fiberglass tubes and chromed solid brass for exceptional durability
• Survival Wind Speed: Capable of withstanding wind speeds up to 55 m/s (125 mph)
• Operating Temperature: Operates in temperatures from -55°C to +70°C (IEC 60068-2-1 and IEC 60068-2-2 compliant)
• Connector: Screw terminal inside the connection box
• Cable: Not included (use standard coaxial cable Ø 5–10 mm)
• Serial No.: Clearly displayed on the product label

Ordering Information

• P/N: 13710-012 (Antenna with brackets)
