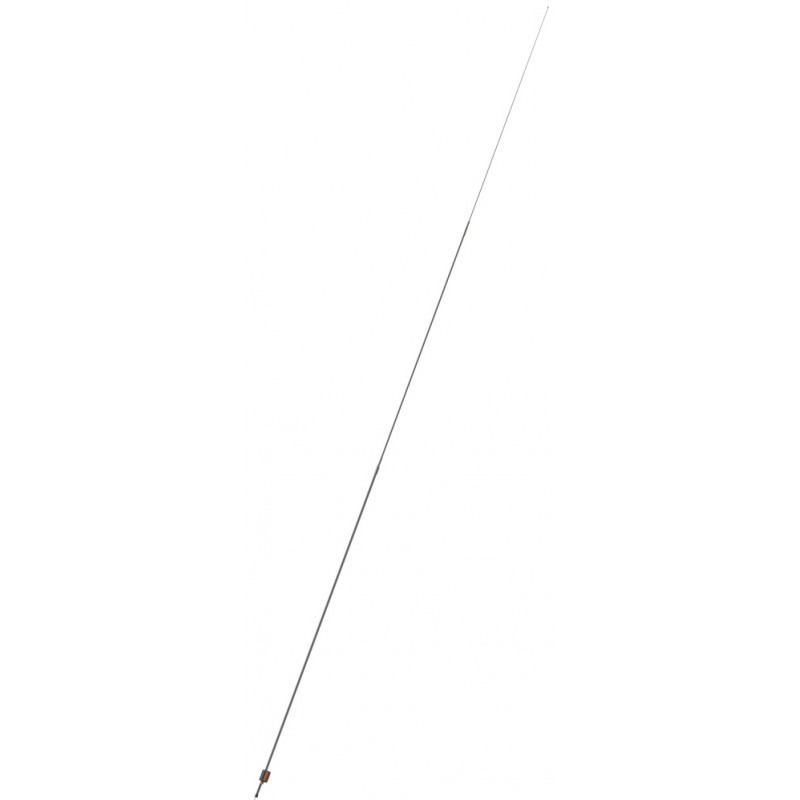

Scan Antenna HF7200 RX 7 m three-part LF/HF Fibreglass Antenna with coaxial connection box, Without brackets (13720-002)

Details

• High-quality 7 m HF antenna designed for professional applications.
• Built-in matching transformer for enhanced low-frequency receiving capabilities.
• Rugged design ensures durability and reliability in demanding environments.
• Chrome-plated solid brass joints provide superior structural integrity and long-lasting performance.
• Designed for rail mounting, making installation straightforward and versatile.
• Fed via a screw terminal inside a connection box, compatible with standard coaxial cables (Ø 5–10 mm).
• Features a full omni-directional receiving pattern for optimal signal coverage.

Packaging Information

• Type: Carton tube
• Size: Ø 86 x 2990 mm
• Weight: Approx. 5.9 kg

Electrical Specifications

• Frequency: 0.15–30 MHz (LF, MF, and HF)
• Impedance: 50 Ohm
• Polarization: Vertical
• Max. Input Power: N/A (Receive only)
• Static Capacitance: 80 pF
• Insulation Resistance: 10 GOhm
• Electric Length: 6800 mm

Mechanical Specifications

• Color: White
• Height: 7 m
• Weight: 2.9 kg
• Diameter: Ø 21 to Ø 5 mm
• Mounting: Compatible with Rail Bracket Kit (Small) P/N 10000-153 (not supplied)
• Mounting Place: Suitable for rail or pole installations (Ø 30–90 mm)
• Mounting Instruction: Provided with the product
• Materials: PU-painted heavy-duty fiberglass tubes and chromed solid brass for exceptional durability
• Survival Wind Speed: Withstands wind speeds up to 55 m/s (125 mph)
• Operating Temperature: Functional in temperatures ranging from -55°C to +70°C (IEC 60068-2-1 and IEC 60068-2-2 compliant)
• Connectors: Screw terminal inside the connection box
• Cable: Not included (use standard coaxial cable Ø 5–10 mm)
• Serial No.: Clearly displayed on the product label

Ordering Information

• P/N: 13720-002 (Without brackets)
