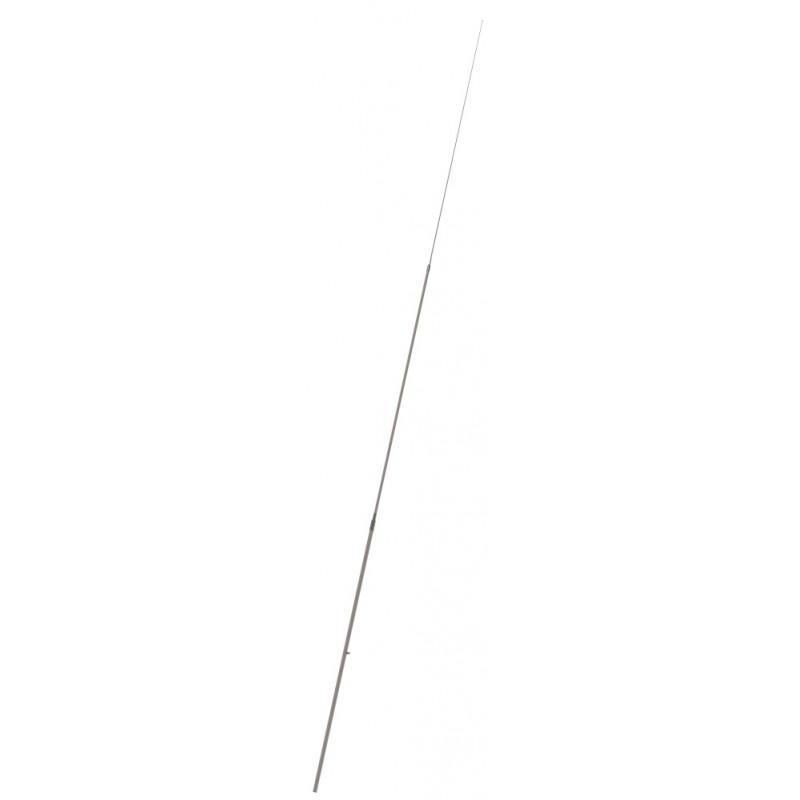

Scan Antenna HF8000 TX/RX 8 m three-part LF/HF Fibreglass Antenna, carton tube, without brackets (13800-002)
zoom_out_map
chevron_left chevron_right
New

Scan Antenna HF8000 TX/RX 8 m three-part LF/HF Fibreglass Antenna, carton tube, without brackets (13800-002)

High-quality 8 m HF antenna built for professional use. P/N: 13800-002

614.90 $
Tax included

499.92 $ net price (non-EU countries)

Karol Łoś
Product Manager
English / Polski
+48603969934
+48507526097
[email protected]

Description

Details

  • High-quality 8 m HF antenna built for professional use.
  • Specifically designed for GMDSS installations, ensuring reliable maritime communication.
  • Rugged construction ensures durability in challenging environments.
  • Chrome-plated solid brass joints provide exceptional structural integrity and long-term performance.
  • Designed for rail mounting, offering versatile installation options.
  • Side-fed via open single wire for straightforward integration.
  • Provides a full omni-directional radiation pattern for optimal signal coverage.



Packaging Information

  • Type: Carton tube
  • Size: Ø 86 x 2900 mm
  • Weight: Approx. 9.0 kg



Electrical Specifications

  • Frequency: 1.4–30 MHz (MF and HF)
  • Polarization: Vertical
  • Max. Input Power: 1200 W PEP
  • Static Capacitance: 100 pF
  • Insulation Resistance: 10 GOhm
  • Electric Length: 6790 mm

Mechanical Specifications

  • Color: White
  • Height: 8 m
  • Weight: 6.0 kg
  • Diameter: Ø 40 to Ø 5 mm
  • Mounting: Compatible with Rail Bracket Kit (Large) P/N 10000-163 (not supplied)
  • Mounting Place: Suitable for rail or pole installations (Ø 30–90 mm)
  • Mounting Instruction: Included with the product
  • Materials: PU-painted heavy-duty fiberglass tubes and chromed solid brass for enhanced durability
  • Survival Wind Speed: Withstands wind speeds up to 55 m/s (125 mph)
  • Operating Temperature: Functional in temperatures ranging from -55°C to +70°C (IEC 60068-2-1 and IEC 60068-2-2 compliant)
  • Connector: Screw terminal for secure connections
  • Cable: Not included (use open single wire)
  • Serial No.: Clearly displayed on the product label

Ordering Information

  • P/N: 13800-002 (Supplied in a carton tube, without brackets)

Data sheet

75RTE8HTHB
