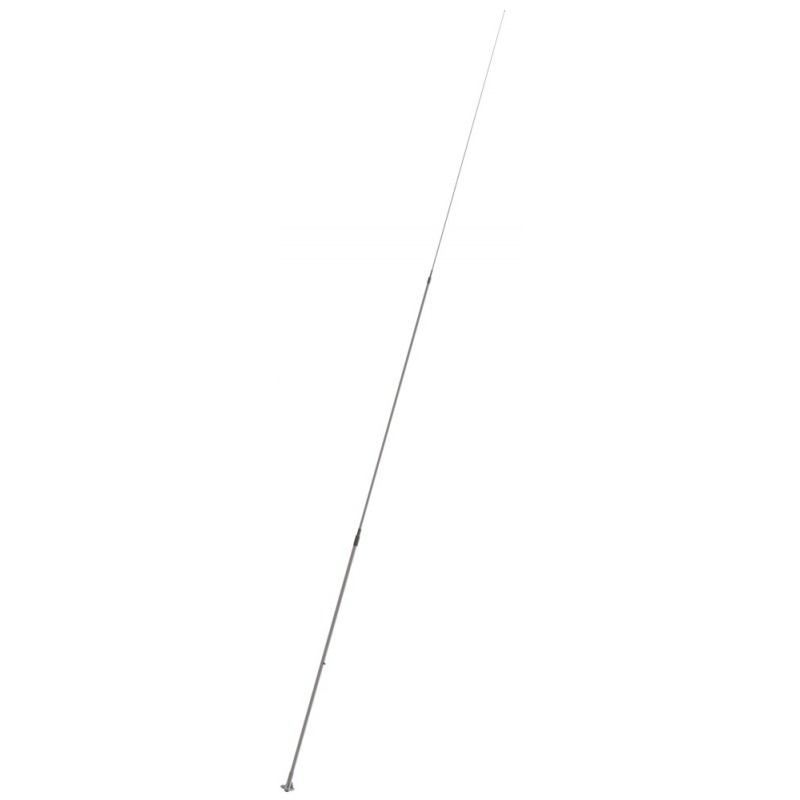

Scan Antenna HF8001 TX/RX 8 m three-part LF/HF self-supporting Fibreglass Antenna with Deck Mount (13800-092)

Product Details

• High-Quality HF Antenna: An 8-meter self-supporting HF antenna designed for professional use.
• GMDSS Compatibility: Specially engineered for GMDSS installations, ensuring reliable communication.
• Rugged and Durable: Built with chrome-plated solid brass joints for enhanced durability.
• Deck Mounting Design: Ideal for deck installation, featuring a side-fed configuration via an open single wire.
• Omni-Directional Radiation: Provides a complete 360-degree radiation pattern.

Packaging Information

• Type: Carton tube.
• Dimensions: Ø 86 mm x 2800 mm.
• Weight: Approximately 11.2 kg.

Electrical Specifications

• Frequency Range: 1.4 - 30 MHz (MF and HF).
• Polarisation: Vertical.
• Maximum Input Power: 1200 W PEP.
• Static Capacitance: 100 pF.
• Insulation Resistance: 10 GOhm.
• Electric Length: 6790 mm.

Mechanical Specifications

• Color: White.
• Height: 8 m.
• Weight: 8.2 kg.
• Diameter: Tapers from Ø 40 mm to Ø 5 mm.
• Mounting: On deck with the supplied bracket.
• Mounting Instructions: Provided in the package.
• Materials: Constructed from PU-painted heavy-duty glass-fiber tubes and chromed solid brass.
• Survival Wind Speed: Up to 55 m/s (125 mph).
• Operating Temperature: -55°C to +70°C (tested to IEC 60068-2-1 and IEC 60068-2-2 standards).
• Connector: Screw terminal.
• Cable: Not included (requires open single wire).
• Serial Number: Displayed on the product label.

Ordering Information

• Part Number: 13800-092
