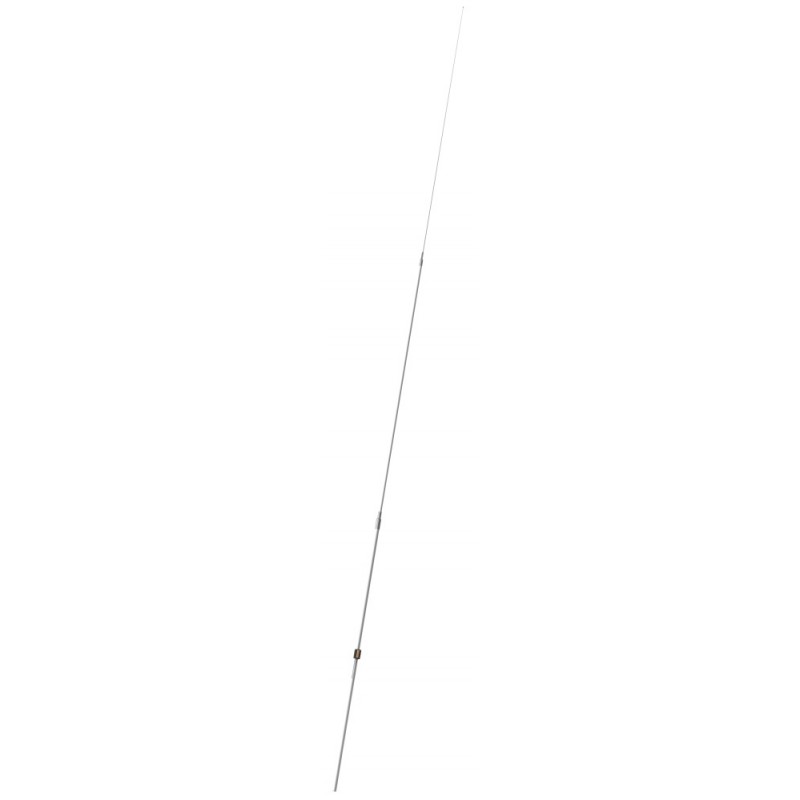

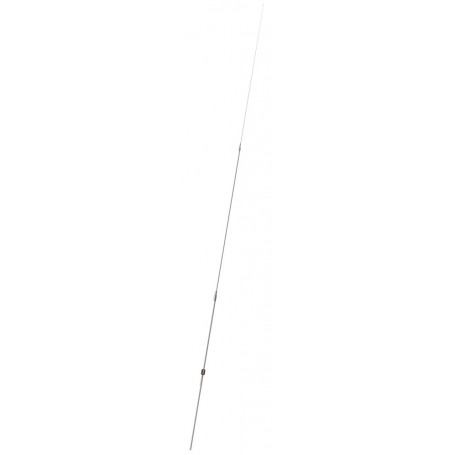

Scan Antenna HF8100 TX/RX 8 m three-part LF/HF Fibreglass Antenna with coaxial connection box, without brackets (13810-002)

Product Details

• High-Quality HF Antenna: An 8-meter high-performance HF antenna designed for professional use.
• GMDSS Compatibility: Engineered specifically for GMDSS installations.
• Robust Construction: Features a rugged design with chrome-plated solid brass joints for durability.
• Rail Mounting Design: Suitable for rail or pole mounting with a bracket kit (not included).
• Efficient Signal Transmission: Fed via a screw terminal inside a connection box, compatible with standard coaxial cables (Ø 5 - 10 mm).
• Omni-Directional Coverage: Provides a full 360-degree radiation pattern.

Packaging Information

• Type: Carton tube.
• Dimensions: Ø 106 mm x 2800 mm.
• Weight: Approximately 10.1 kg.

Electrical Specifications

• Frequency Range: 1.4 - 30 MHz (MF and HF).
• Polarisation: Vertical.
• Maximum Input Power: 1200 W PEP.
• Static Capacitance: 100 pF.
• Insulation Resistance: 10 GOhm.
• Electric Length: 6790 mm.

Mechanical Specifications

• Color: White.
• Height: 8 m.
• Weight: 6.1 kg.
• Diameter: Tapers from Ø 40 mm to Ø 5 mm.
• Mounting: Requires a Rail Bracket Kit (Large) P/N 10000-163 (not supplied).
• Mounting Location: Suitable for rail or pole installations (Ø 30 - 90 mm).
• Mounting Instructions: Included in the package.
• Materials: Made from PU-painted heavy-duty glass-fiber tubes and chromed solid brass.
• Survival Wind Speed: Withstands up to 55 m/s (125 mph).
• Operating Temperature: -55°C to +70°C (tested to IEC 60068-2-1 and IEC 60068-2-2 standards).
• Connector: Screw terminal inside a connection box.
• Cable: Not included (requires a standard coaxial cable Ø 5 - 10 mm).
• Serial Number: Displayed on the product label.

Ordering Information

• Part Number: 13810-002 (brackets not included).
