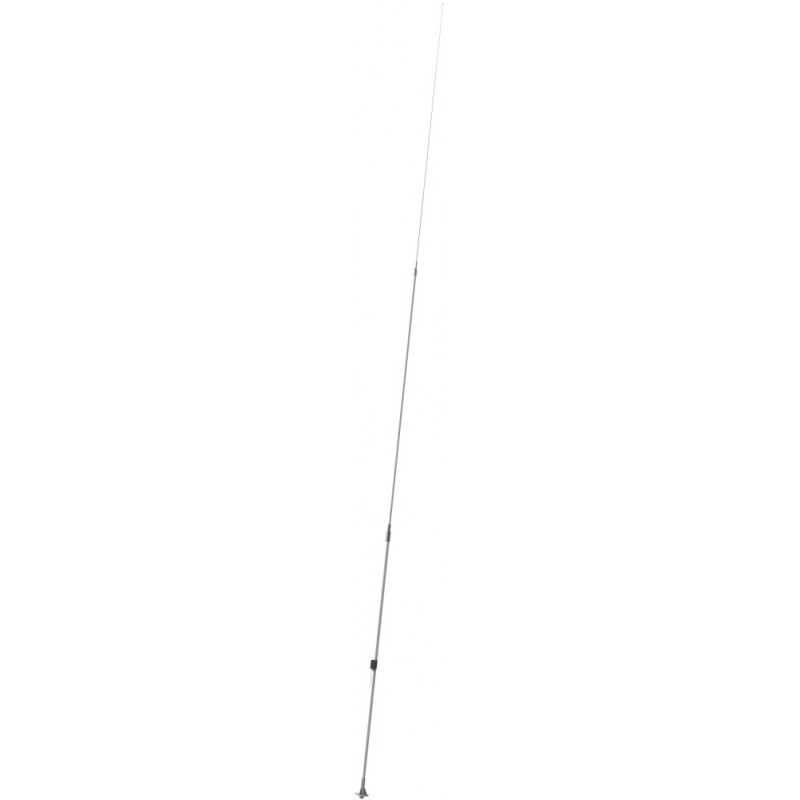

Scan Antenna HF8101 TX/RX 8 m three-part LF/HF Fibreglass Antenna (13810-092)

Product Description

• Professional HF Antenna: A high-quality, self-supporting 8-meter HF antenna designed for demanding professional use.
• Optimized for GMDSS: Engineered for installations requiring compliance with GMDSS standards.
• Durable and Robust: Built with rugged construction and chrome-plated solid brass joints for long-lasting performance.
• Deck Mounting Ready: Designed for easy deck installation using the supplied bracket.
• Efficient Signal Feeding: Fed through a screw terminal inside a connection box, compatible with standard coaxial cables (Ø 5 - 10 mm).
• Omni-Directional Coverage: Delivers a complete 360-degree radiation pattern.

Packaging Details

• Type: Carton tube for secure transport.
• Dimensions: Ø 86 mm x 2900 mm.
• Weight: Approximately 11.2 kg.

Electrical Specifications

• Frequency Range: Operates from 1.4 to 30 MHz (MF and HF).
• Polarisation: Vertical for optimal signal propagation.
• Maximum Input Power: 1200 W PEP.
• Static Capacitance: 100 pF.
• Insulation Resistance: 10 GOhm, ensuring minimal signal loss.
• Electric Length: 6790 mm.

Mechanical Details

• Color: White finish for a clean, professional look.
• Height: 8 meters.
• Weight: 8.2 kg.
• Diameter: Gradually tapers from Ø 40 mm to Ø 5 mm.
• Mounting Method: Comes with a supplied bracket for secure deck mounting.
• Materials: Constructed from PU-painted heavy-duty glass-fiber tubes and chromed solid brass for superior durability.
• Wind Resistance: Withstands survival wind speeds of up to 55 m/s (125 mph).
• Temperature Range: Operates reliably in extreme conditions, from -55°C to +70°C, as per IEC 60068-2-1 and IEC 60068-2-2 standards.
• Connector: Screw terminal housed in a protective connection box.
• Cable: Cable not included; requires a standard coaxial cable (Ø 5 - 10 mm).
• Serial Number: Displayed on the product label for identification.

Ordering Information

• Part Number: 13810-092.
