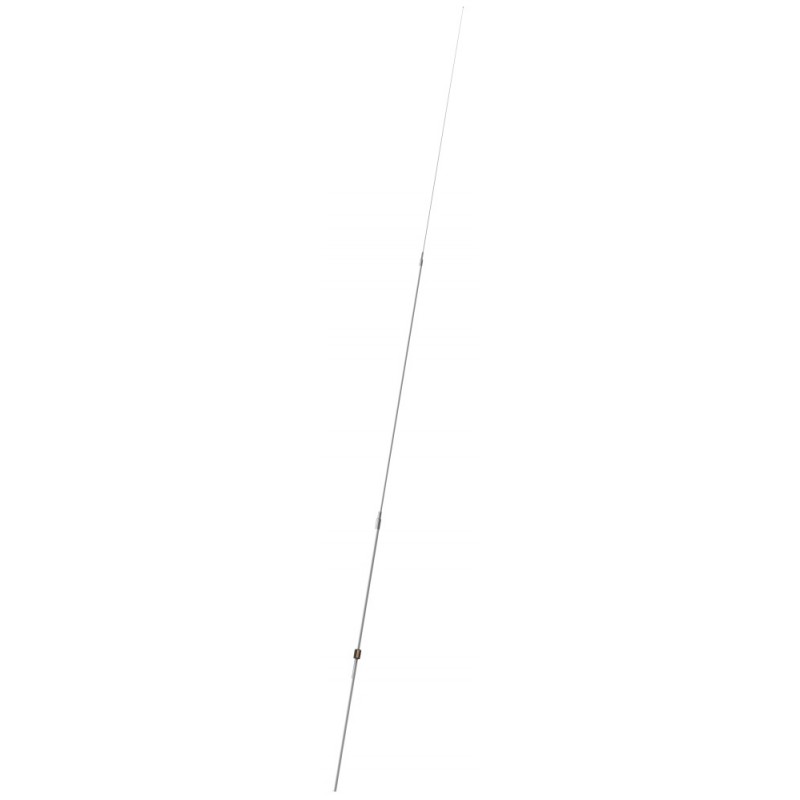

Scan Antenna HF8200 RX 8 m three-part LF/HF Fibreglass Antenna with coaxial connection box, without brackets (13820-002)

Product Overview

• Professional HF Antenna: An 8-meter antenna designed for professional use, featuring a built-in matching transformer for enhanced low-frequency reception.
• Robust Construction: Durable design with chrome-plated solid brass joints for reliability in demanding environments.
• Rail Mounting Ready: Designed for installation on rail or pole setups using a Rail Bracket Kit (Large) P/N 10000-163 (not included).
• Efficient Signal Feeding: Features a screw terminal inside a connection box, compatible with standard coaxial cables (Ø 5 - 10 mm).
• Omni-Directional Reception: Provides a full 360-degree receiving pattern for consistent signal quality.

Packaging Information

• Packaging Type: Sturdy carton tube for safe transport.
• Dimensions: Ø 106 mm x 2800 mm.
• Weight: Approximately 10.1 kg.

Electrical Specifications

• Frequency Range: Operates from 0.15 to 30 MHz, covering LF, MF, and HF bands.
• Impedance: 50 Ohm.
• Polarisation: Vertical for effective signal reception.
• Maximum Input Power: Not applicable (receive-only antenna).
• Static Capacitance: 100 pF.
• Insulation Resistance: 10 GOhm for minimized signal loss.
• Electric Length: 6790 mm.

Mechanical Details

• Color: White for a professional appearance.
• Height: 8 meters.
• Weight: 6.1 kg.
• Diameter: Tapers from Ø 40 mm to Ø 5 mm.
• Mounting Method: Requires a Rail Bracket Kit (Large) for rail or pole installations (Ø 30 - 90 mm).
• Mounting Instructions: Included with the product.
• Materials: Constructed from PU-painted heavy-duty glass-fiber tubes and chromed solid brass for exceptional durability.
• Wind Resistance: Capable of withstanding survival wind speeds of up to 55 m/s (125 mph).
• Temperature Range: Operates reliably between -55°C and +70°C, tested to IEC 60068-2-1 and IEC 60068-2-2 standards.
• Connector: Screw terminal housed inside a connection box.
• Cable: Not included; requires a standard coaxial cable (Ø 5 - 10 mm).
• Serial Number: Clearly displayed on the product label.

Ordering Details

• Part Number: 13820-002 (brackets not included).
