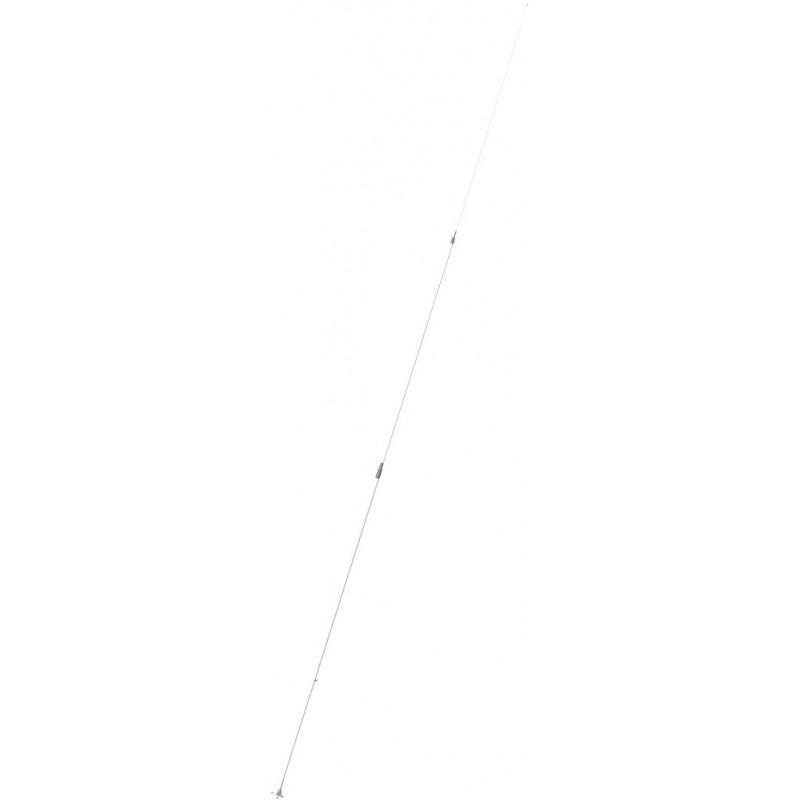

Scan Antenna HF9001 TX/RX 9 m three-part self-supporting LF/HF Fibreglass Antenna 9 with Deck Mount (13900-092)

Product Overview

• Professional HF Antenna: A 9-meter self-supporting HF antenna tailored for professional applications.
• GMDSS Compatibility: Specifically designed for GMDSS installations, ensuring reliable maritime communication.
• Rugged and Durable: Built with a robust design and chrome-plated solid brass joints for long-term performance.
• Deck Mounting Design: Optimized for deck installation, using the supplied mounting bracket.
• Side Feed Configuration: Side fed via an open single wire for efficient signal transmission.
• Omni-Directional Radiation: Provides full 360-degree coverage for consistent signal reception.

Packaging Information

• Packaging Type: Supplied in a durable carton tube for secure shipping.
• Dimensions: Ø 86 mm x 4000 mm.
• Weight: Approximately 13.2 kg.

Electrical Specifications

• Frequency Range: Operates within 1.4 to 30 MHz (MF and HF bands).
• Polarisation: Vertical, ideal for wide-area coverage.
• Maximum Input Power: Supports up to 1200 W PEP.
• Static Capacitance: 100 pF, ensuring stable performance.
• Insulation Resistance: 10 GOhm for minimal signal loss.
• Electric Length: 7870 mm for optimal performance.

Mechanical Details

• Color: White, offering a clean and professional appearance.
• Height: 9 meters.
• Weight: 9.3 kg.
• Diameter: Tapers from Ø 40 mm to Ø 5 mm.
• Mounting Method: Deck mounting using the supplied bracket for secure installation.
• Materials: Constructed from PU-painted heavy-duty glass-fiber tubes and chromed solid brass for exceptional durability.
• Wind Resistance: Withstands survival wind speeds of up to 55 m/s (125 mph).
• Temperature Range: Operates reliably between -55°C and +70°C, as tested to IEC 60068-2-1 and IEC 60068-2-2 standards.
• Connector: Equipped with a screw terminal for reliable connections.
• Cable: Not included; requires an open single wire.
• Serial Number: Clearly displayed on the product label for easy identification.

Ordering Details

• Part Number: 13900-092.
