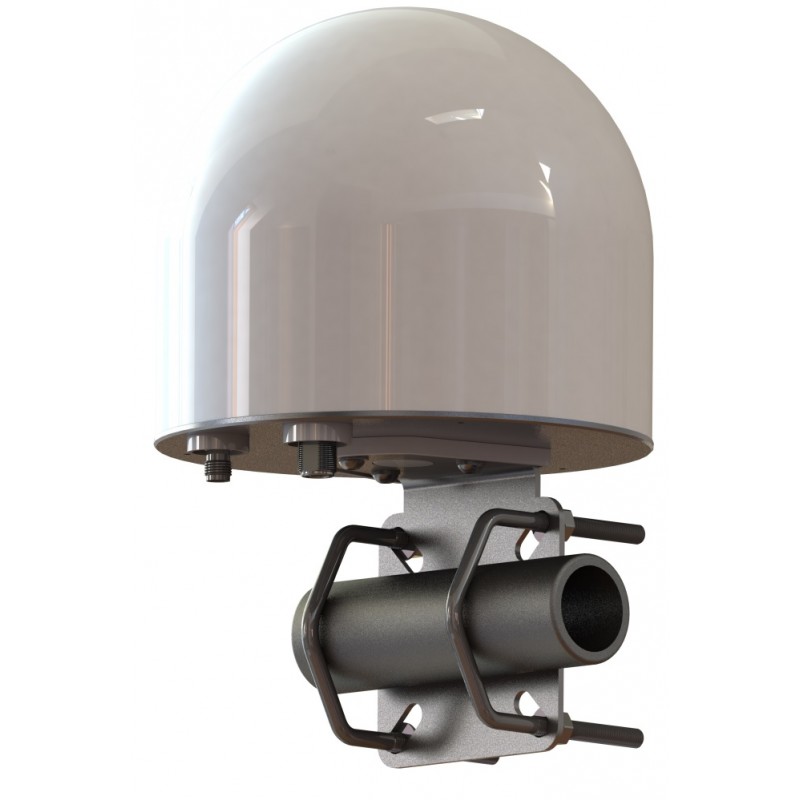

Scan Antenna Thuraya Active Omnidirectional SATCOM Antenna, Voice and GmPRS compatible, Mounting Bracket (60101-013)

Product Overview

• Active Antenna for Thuraya Terminals: Includes a built-in active GPS antenna, providing reliable connectivity for Thuraya satellite systems.
• Omni-Directional Coverage: Covers the entire footprint without the need for pointing, ensuring ease of use.
• Optimized for Maritime and Land Use: Designed for robust performance in maritime environments but also suitable for land-based applications.
• Mounting Bracket Included: High-grade AISI-316 stainless steel mounting bracket and hardware are provided for secure installation.
• Rugged Design: Engineered for harsh conditions with a smooth-surface, low-loss radome.
• Versatile Compatibility: Compatible with various devices, including FDU-XT, SF2500, Seagull 5000(i), Hughes 7101, SO-2510, SG-2520, XT, FDU-2500, FDU-3500, SatTrans SAT-Office Docker, and SAT-VDA Car Kit.
• Additional Accessories: DC feeder and coaxial cable kits are available separately. Cable kits are designed to comply with Thuraya specifications.
• Improved Design: Model 60101-000, previously known as 60100, now includes a mounting bracket.

Packaging Details

• Packaging Type: Delivered in a sturdy hardbox for safe transport.

Electrical Specifications

• Frequency Bands: 1525 - 1559 MHz, 1626.5 - 1660.5 MHz, and 1575.42 MHz.
• Impedance: 50 Ohms.
• Supported Systems: Thuraya and GPS.
• Polarisation: LHCP (Left-Hand Circular Polarisation).
• Axial Ratio: Less than 6 dB.
• Gain: 0 dBic.
• G/T (typical): -22 dB/K; minimum: -24 dB/K.
• EIRP (typical): 7 dBW; minimum: 5 dBW.
• LNA Gain for GPS: 26 dB.
• Supply Voltage: SAT: 10 - 24 VDC, GPS: 5 VDC.
• Power Consumption: Average: 12 W; Peak: 26 W.

Mechanical Details

• Color: White for a clean and professional appearance.
• Height: 301 mm.
• Diameter: 201 mm.
• Weight: 1.7 kg (antenna only).
• Mounting Options: Mountable on poles or rails using the supplied bracket and U-bolts.
• Mounting Instructions: Provided for straightforward installation.
• Materials: Constructed from silver anodized aluminium, PCB, stainless steel, PTFE, ASA, and brass for maximum durability.
• Temperature Range: Operating: -25°C to +55°C; Survival: -40°C to +80°C.
• Connectors: SAT: N-female; GPS: TNC-female.
• Cable Loss: Recommended between 3 dB and 7.5 dB for optimal performance.

Ordering Information

• Part Number: 60101-013 (includes the antenna and mounting bracket).
