Scan Antenna Thuraya Active Hi-Gain Omnidirectional SATCOM Antenna, Voice and GmPRS compatible, Mounting Bracket (60121-013)

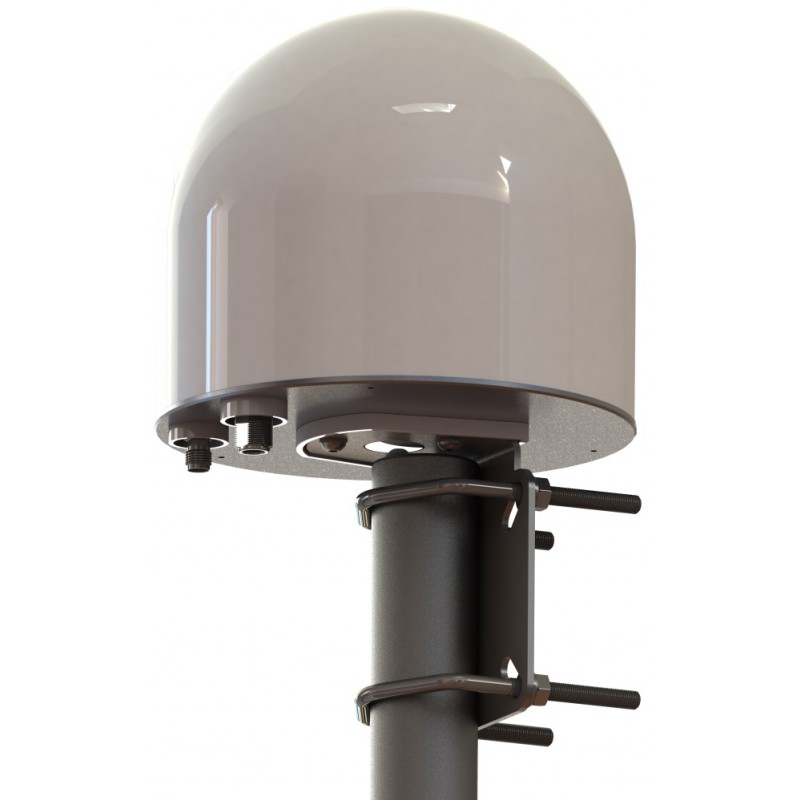

This high-gain active antenna is designed for Thuraya terminals and includes a built-in active GPS antenna. It is optimized for both maritime and land-based applications, offering exceptional performance for long cable installations. The antenna features an omni-directional design, ensuring full footprint coverage without the need for pointing, and includes a rugged mounting bracket for secure installation in harsh conditions. The smooth, low-loss radome enhances durability and efficiency.

Key Features

• High-gain design suitable for extra-long cable setups
• Omni-directional coverage for Thuraya and GPS systems
• Built-in active GPS antenna
• Rugged and reliable for maritime and land applications
• Includes a high-grade AISI-316 stainless steel mounting bracket
• Low-loss radome surface
• Compatibility with various Thuraya terminals and accessories
• Requires a DC feeder (ordered separately based on configuration)
• Coaxial cable kits available for customization

The updated model (60121-000) includes the mounting bracket and replaces the previous 60120 version. Cable loss between 6 dB and 10.5 dB is recommended for optimal performance.

Electrical Specifications

• Frequency Range: 1525–1559 MHz, 1626.5–1660.5 MHz, 1575.42 MHz
• Impedance: 50 Ω
• Supported Systems: Thuraya, GPS
• Polarization: LHCP
• Axial Ratio: < 6 dB
• G/T (typical): -22 dB/K
• G/T (minimum): -24 dB/K
• EIRP (typical): 7 dBW
• EIRP (minimum): 5 dBW
• LNA Gain (GPS): 26 dB
• Supply Voltage: SAT: 10–24 VDC, GPS: 5 VDC
• Power Consumption: Average 12 W, Peak 26 W

Mechanical Specifications

• Color: White
• Height: 301 mm
• Diameter: Ø 201 mm
• Weight: 1.7 kg (antenna only)
• Mounting: Supplied mounting bracket with U-bolts for pole installation
• Materials: Silver anodized aluminum, PCB, stainless steel, PTFE, ASA, brass
• Temperature Range: Operating -25°C to +55°C, Survival -40°C to +80°C
• Connectors: SAT: N-female, GPS: TNC-female

For installations using cable lengths between 41–60 m, this antenna is recommended. For shorter cable lengths (below 40 m), use P/N 60101-000.

Ordering Information

• P/N 60121-013: Antenna with Mounting Bracket

Packaging
The product is securely packed in a hardbox for protection during transport and storage.
