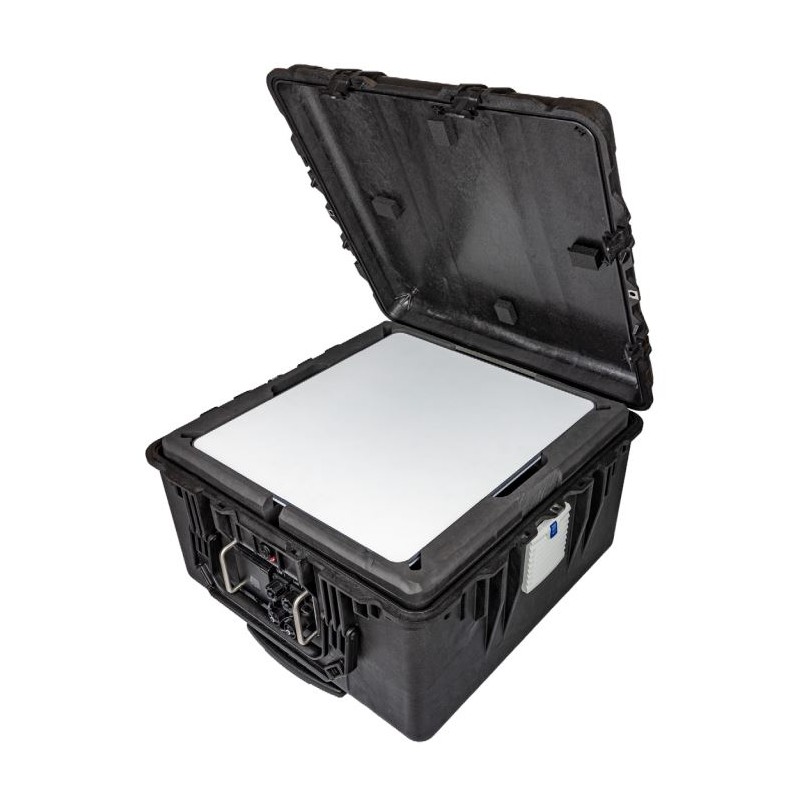

Starlink Tactical Case (Pelicase 1640 incl. Foam)

The most advanced PELI® Case solution for extreme and truly portable mobile satellite communication requirements. Network Innovations’ ruggedized case is a fully autonomous solution, housing high-performance fixed and mobile Starlink antennas.

Overview

Engineered to be self-sufficient, this solution ensures that users can maintain high-speed and reliable internet access even in the most challenging and remote environments. Whether deployed in disaster-stricken areas or on-the-go scenarios, this case is designed to withstand extreme weather, physical impact, and other environmental challenges – safeguarding and powering the technology within.

Smart Battery Options

Both battery options will be charged inside the case when the case is connected to AC or DC.

2x Detachable 86Wh/6,0Ah/14,4V B-Mount HIGH Load batteries (BEBOB B90CINE B-Mount® Li-Ion High Load Akku 14,4V/28,8V, 86Wh)

• Up to 2 hours of autonomous operation of STARLINK terminal

• USB-C Port for smartphone charging

• Charging level & health indicator

• Allowed as hand luggage

2x Detachable 475Wh/33,0Ah/14,4V B-Mount HIGH Load batteries (BEBOB B480CINE B-Mount® Li-Ion High Load Akku 14,4V/28,8V, 475Wh)

• Up to 10 hours autonomous operation of STARLINK terminal

• USB-C Port for smartphone charging

• Charging level & health indicator

External Chargers for the B-Mount batteries are available.

Integrated DC / AC 500 W with mains priority circuit

• The TSI ECTIVE inverter automatically switches to battery operation if the power fails in mains operation. This happens in the millisecond range and thus ensures an uninterrupted power supply to your consumers.

• Works as an uninterrupted power supply (UPS) with attached batteries

Weather resistance

• All electronics are integrated into the well-known and military-approved PELI® Cases

• The NI tactical STARLINK Case is IP-54-rated

Flyable

• All-In-One Trolley

• Airline checkable (only with 86Wh B-Mount batteries (Batteries must be carried in hand luggage)

External interfaces

• 2 x LAN external connectors (IP67)

• 1 x 10 – 30 VDC Connector (IP67)

• 1 x 90 to 264V AC Connector (IP67)

• 1 x Cable Gland for STARLINK Antenna (IP54)

Hot-Swap Function

• Swap the batteries without interruption for endless off-grid operation

• Additional Batteries and external fast chargers are available on request

5G/LTE Gateway integrated

The NI STARLINK Case – 5G/LTE option offers wireless 5G/LTE connectivity as the priority link and has an automatic fail-over to the satellite service when the LTE connection is lost or not available.

The World-class proven MAX BR1 Pro 5G gateways from Pepwave are used for commercial & enterprise LTE network connectivity.

The Value Added Services from Network Innovations offer Full control of the IP Network and WiFi via the Peplink MAX BR1 Pro 5G unit and the NI In Control platform.

STARLINK/LTE/5G bundling and hybrid solutions to achieve the best and most resilient IP- connectivity are possible via the Peplink MAX BR1 Pro 5G router and the fully managed Networks form Network Innovations.

The Peplink MAX BR1 Pro 5G is fully licensed for North America, EMEA, or Australia & New Zealand.

DRIVE functionality included with High Performance Flat Antenna

The DRIVE function allows the high-performance flat STARLINK antenna to be removed from the case without tools to be mounted on the roof of a vehicle using magnetic feet.

This enables full connection to the satellite network while driving.

The high-performance flat STARLINK antenna can be used inside or outside the PELI® Case while the lid is closed.

The high-performance fixed STARLINK antenna operates only when mounted outside the case.

Smart Battery Project

The integrated battery protect disconnects the battery before it has insufficient power left to crank the engine, using a cigarette lighter cable.

What’s In The Box

1 x Pelicase 1640 incl. Foam

1 x DC / AC converter with mains priority switching and UPS function.

1 x Buck boost 50A

1 x DC / DC converter 12 to 24 VDC (400 Watt)

1 x RITTAL 24 VDC Ventilator

2 x B-Mount for detachable batteries (Batteries are offered optional with different capacities)

1 x Pepwave MAX BR1 pro 5G

1 x Panorama low profile antenna 4 x MiMo LTE/5G, 2 x MiMo WiFi, 1 x GNSS

(STARLINK High Performance Antenna is not included)

Optional

• Starlink antenna (optional)

• 2 x Detachable 90Wh/6,0Ah/14,4V B-Mount HIGH Load batteries (BEBOB B90CINE B-Mount® Li-Ion High Load Akku 14,4V/28,8V, 86Wh)

• 2 x Detachable 475Wh/33,0Ah/14,4V B-Mount HIGH Load batteries (BEBOB B480CINE B-Mount® Li-Ion High Load Akku 14,4V/28,8V, 475Wh)

Specifications

Weight 34.0 kg (including High Performance Flat Antenna; excluding batteries)

Dimensions 69.1 x 69.9 x 41.4 cm

Protected Case • IP 54 ingress protection due to ventilation, • 4 strong wheels with stainless steel bearings, • Retractable extension trolley handle, • Fold down handles, • stainless steel padlock protectors, • Easy open double-throw latches

Interfaces • Dual band 802.11ac Wi-Fi hot-spot, • 2 x External ethernet port ́s (RJ-45)

Power External AC power connector Input voltage 100 - 240V AC ; External Vehicle connector Input Voltage 10 - 30V DC

Battery Options • 2 x Detachable 86Wh/6,0Ah/14,4V B-Mount HIGH Load batteries (flyable) (BEBOB B90CINE B-Mount® Li-Ion High Load Akku 14,4V/28,8V, 86Wh), • 2 x Detachable 475Wh/33,0Ah/14,4V B-Mount HIGH Load batteries (BEBOB B480CINE B-Mount® Li-Ion High Load Akku 14,4V/28,8V, 475Wh), • External battery chargers are available (90 - 264V AC)

Communication via Satellite

High Performance Flat STARLINK Antenna or High Performance mobile STARLINK Antenna.

• Up to 350 Mbit/s Dowload

• Latency 20-40ms

Other features

• Commercial and Enterprise 5G / LTE network

• Peplink MAX BR1 Pro 5G fully licensed for North America, EMEA and Australia & New Zealand are available

• A fully autonomous tracking antenna acquires and tracks the STARLINK satellite signal while on the move or on-the-pause

• Victron Energy Buck Bost with Smart Battery Protect
