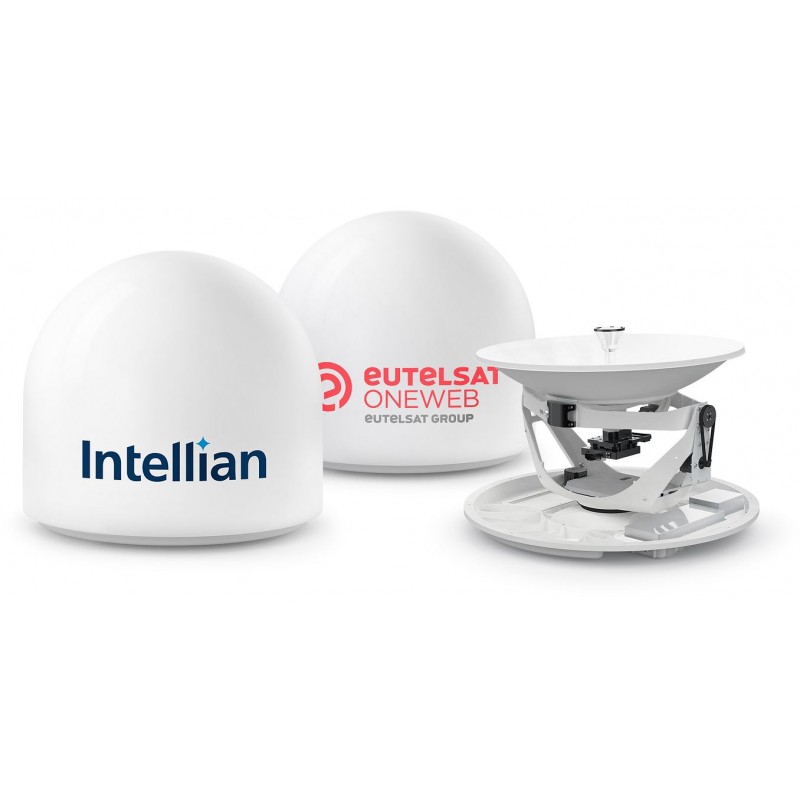

Intellian OW70L-Dac PS-OW70P-S2 Dual Antenna Solution

The OW70L stands as a terrestrial user terminal designed for Eutelsat OneWeb's Low Earth Orbit (LEO) satellite constellation. It features dual 3-axis stabilized pedestals hosting 73 cm parabolic antennas, delivering remarkable 12.2 dB/K G/T performance. By ensuring seamless connectivity during LEO handovers, this terminal empowers customers in remote and challenging environments with cost-effective access to an enhanced user experience previously out of reach.

Low Latency, High Speed:

Embracing global coverage, including both poles, Eutelsat OneWeb’s 648 satellite constellation promises fiber-like high-speed, low-latency connectivity to remote customers where terrestrial fiber connections are unfeasible. Operating in Ku-Band to minimize rain fade, the OW70L offers unmatched high-throughput, low-latency connectivity.

Easy Deployment:

Engineered for cost-effectiveness, the OW70L boasts a lightweight design and simplified installation process. With just a single cable required to connect indoor and outdoor units for both data and power transmission, installation time is dramatically reduced.

Low-Temperature Performance:

With a meticulously designed heating device module, the OW70L ensures consistent performance even in extreme temperatures as low as -40 degrees Celsius. Given Eutelsat OneWeb's commitment to 100% coverage of Alaska, the OW70L guarantees affordable and reliable broadband services for individuals in the Arctic region.

High Performance:

The OW70L’s technology integrates advanced satellite communications into a straightforward UT, catering to the diverse needs of various sectors, including small, medium, and large enterprises. Capable of delivering fast-speed, low-latency, and high-capacity connectivity, it ensures optimal performance.

LEO Satellite Scan and Tracking Algorithm:

The Intellian OW70L ensures seamless connectivity through a primary-secondary dual dome solution, ensuring consistent connection during LEO satellite handovers. Its precise technology enables the secondary antenna to track a rising satellite before the primary antenna loses a falling one.

12.2 dB/K Antennas with 3-Axis Stabilization:

Featuring 3-axis stabilization, the OW70L facilitates effortless tracking of LEO satellites. A responsive cross-level beam assists in antenna alignment, even as the elevation angle approaches ±90 degrees. The implementation of a 'Keyhole problem' avoidance design enables normal tracking even when the satellite is directly overhead.

Included Components:

OW 12dB/K Dual Dome (P-S)

PS-OW70P includes:

• PS-OW70P(P)-S2
• PS-OW70P(S)-S2

Specifications:

Radome Dimension: 84.5 cm x 77 cm (33.3 x 30.3 inches)

Reflector Diameter: 73 cm (28.7 inches)

Antenna Weight (Primary Antenna): 33 kg (72.8 lbs) | 33.6 kg (74.1 lbs) with heating module

Antenna Weight (Secondary Antenna): 32 kg (70.5 lbs) | 32.5 kg (71.7 lbs) with heating module

TX Frequency: 14 GHz ~ 14.5 GHz

RX Frequency: 10.7 GHz ~ 12.7 GHz

TX Gain: 38.4 dBi

RX Gain: 36.0 dBi

G/T: 12.2 dB/K (@11.8 GHz)
