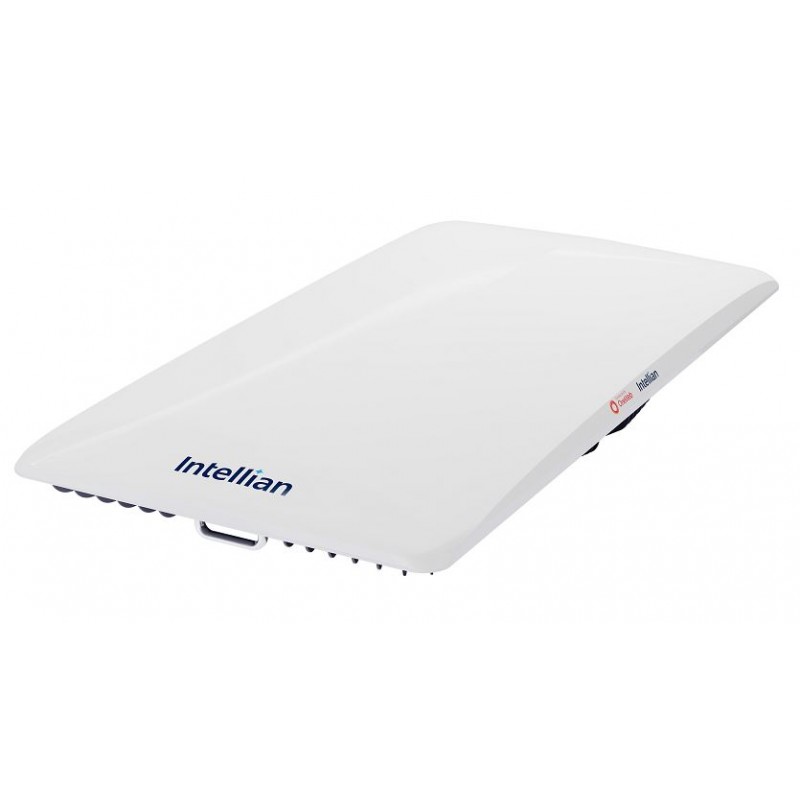

Intellian OW11FV MS-OW11FF-W Full Duplex OneWeb Enterprise Land Mobility User terminal

The OW11FV stands out as the top choice Flat Panel user terminal for Government and Transportation markets, ensuring low-latency, high-speed connectivity, and reliability essential for critical communications, safety, route planning, and entertainment.

Optimized Performance:

Leveraging Intellian’s groundbreaking antenna design, the OW11FV achieves maximum throughput permitted on the OneWeb network. It guarantees the highest link margin, ensuring top-notch performance even during scan and at the lowest elevation angles, meeting the stringent demands of land mobile customers.

Customer Network Exchange:

Intellian’s Customer Network Exchange (CNX) units play a vital role in every OneWeb user terminal setup, providing both power and data connectivity to the Flat Panel user terminal, as well as linking to customer equipment and networks. CNX variants cater to specific deployment scenarios, including Land Fixed, Maritime, and Land Mobility.

Seamless Connectivity:

The OW11FV incorporates Intellian’s advanced tracking technology, extended scan range, and blockage mitigation, enhancing connection reliability and availability even during motion. With optimal performance during scan, its innovative flat panel technology ensures smooth, reliable handovers, ensuring uninterrupted connectivity.

Harsh Environment Performance:

Designed to excel in demanding environments, the OW11FV operates flawlessly in temperatures ranging from -40 °C to +55 °C (-40 °F to 131 °F). Integrated radar rejection filtering guarantees performance in high-interference installations, delivering reliable broadband services for customers in remote locations.

Included Components (MS-OW11FF-W OneWeb Enterprise Land Mobility User terminal):

• OW11FV Outdoor unit
• CNX-WIFI
• AD/DC Power Adapter (450W)

OW11FV Technical Specifications:

Outdoor Unit:

Throughput (peak): DL: 195 Mbps / UL: 32 Mbps

G/T: 10.7 dB/K

EIRP: +36.6 dBW (Dual Carrier)

Field of View: +/- 70° from Zenith, 360° Azimuth

Size: 96 cm x 50 cm x 12 cm (37.8” x 19.7” x 4.7”)

Weight: 16 kg (35 lb)

Power: 340 W (max) / 300 W (avg)

Ingress: IP66

Operating Temp: -40 °C to +55 °C (-40 °F to 131 °F)

Interface: F-Type conn

Indoor Units (CNX-WIFI):

Dimensions: 21 cm x 17 cm x 8 cm (8.2” x 6.7” x 3.1”)

Weight: 0.6 kg (1.3 lb)

Power: 18 W (max), 8 W (avg)

Operating Temp: 0 °C to +40 °C (32 °F to 104 °F)

Data Interface: WiFi-6 4-port GigE RJ45

Power Input: Universal AC Power (100 – 240VAC)

CNX-RACK-AC:

Dimensions: 44.2 cm x 25 cm x 4.4 cm (19” x 1 RU chassis)

Weight: 6.3 kg (13.9 lb)

Power: 30 W (max), 16 W (avg)

Operating Temp: -25 °C to +55 °C (-13 °F to 131 °F)

Data Interface: 8-port GigE RJ45, 1x USB (Type-A), 1x NMEA0183 / 1x NMEA2000

Power Input: Dual 450 W Power Modules, 100 – 240 VAC

CNX-MOBILITY:

Dimensions: 30 cm x 20 cm x 4 cm (11.8” x 7.9” x 1.6”)

Weight: 1 kg (2.2 lb)

Power: 18 W (max), 8 W (avg)

Operating Temp: -25 °C to +55 °C (-13 °F to 131 °F)

Data Interface: 4-port GigE RJ45, 1x NMEA 0183 / 1x NMEA2000

Power Input: External Power Supply Adapter (AC and DC variants available)
