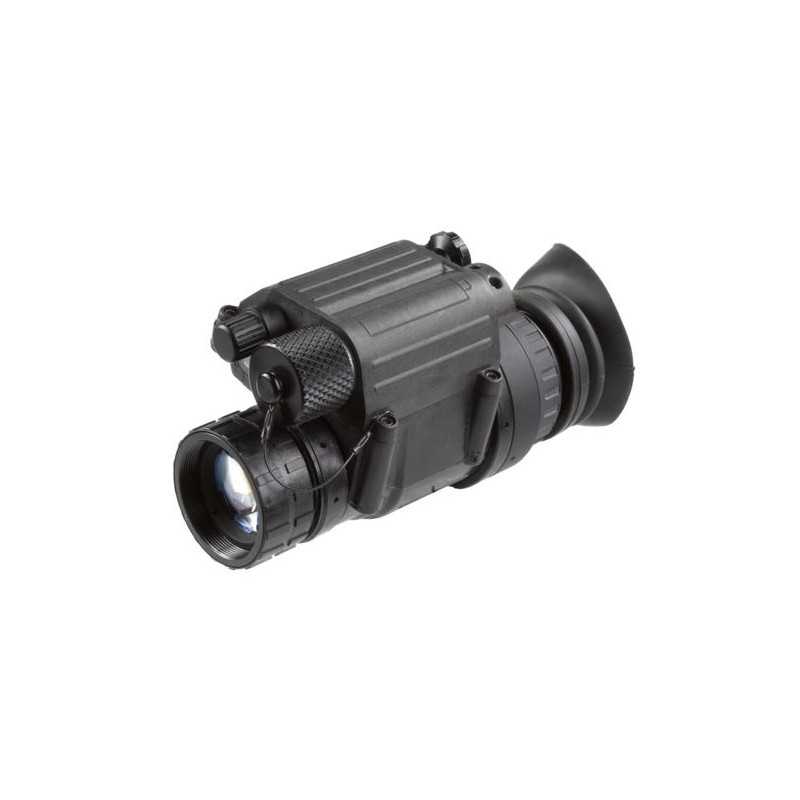

AGM PVS-14 NL1 ECHO IIT - Night Vision Monocular, FOM 1800-2300, Auto-Gated Gen 2+ (ECHO), P43-Green Phosphor IIT
Introducing the AGM PVS-14 NL1I ECHO IIT Night Vision Monocular, a cutting-edge device with Gen 2+ Auto-Gated technology, providing exceptional clarity and performance during low-light conditions. This monocular features a green P43 phosphor IIT for enhanced image quality and is designed with manual gain control, allowing users to adjust image brightness to their preference. With an impressive FOM (Figure of Merit) range of 1800-2300, the PVS-14 delivers unparalleled night vision capabilities for tactical scenarios, outdoor enthusiasts, and nighttime explorers. Model number: 11P14122453011E. Upgrade your night vision experience and never miss a moment with the AGM PVS-14 NL1I ECHO IIT Monocular.
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The AGM PVS-14 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device adjusted by AGM professionals for consumer electronics market and everyday use for your most daring outdoor plans. This monocular is used globally in some of the most challenging environments. Leading speleologists are using them as reliable tool for their underground trips. Nature enthusiasts are having a blast with them in the toughest jungle conditions in their search for rare species. The AGM PVS-14 can be used as a handheld device, or mounted on the included head harness in other words putting your tent or gathering the wood for the fire, night fishing or simply admiring the stars is getting more comfortable than it used to be.
The PVS-14 monocular is a full-featured unit. Weighing less than 12.4 ounces/ 0.32 kilograms. The unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The bright light shut-off feature ensures that inside electronics is protected. AGM’s PVS-14 includes an array of optional accessories to support your bravest plans and your adventurous way of thinking.
- Compact, rugged design
- Waterproof
- Head-mountable for hands-free usage
- Manual gain control
- Ergonomic, simple, easy-to-operate controls
- Built-in Infrared illuminator and flood lens
- Limited 3-year warranty
SPECIFICATIONS
Image Intensifier Tube Gen 2+ "Level 1" "Photonis Autogated" Manual Gain control ECHO IIT
Cosmetic level of IIT NL1i the best quality
Resolution 57-74 lp/mm
FOM 1600-2000
SNR 23-28
Visible Spots Clear FOV
NL1i manually selected tubes, featured advanced clear-cut image. Image’s quality approximates to Gen 3 level.
Magnification 1x (3x and 5x optional)
Lens System 26 mm; F/1.2
FOV 40°
Focus Range 0.25 m to infinity
Diopter Adjustment -6 to +4 dpt
Led Indicators Low battery; IR On; Excessive light conditions
Manual Gain Control Yes
Bright Light Cut-Off Yes
Automatic Shut-Off System Yes
Infrared Illuminator Yes
Battery Type One AA 1.5V Alkaline battery
Battery Life (Operating) Up to 50 hours at 20°C
Operating Temperature Range -51° C to +49° C (-60° F to 120° F)
Storage Temperature Range -51° C to +85° C (-60° F to 185° F)
Weight 0.32 kg (0.7 lbs)
Dimensions 112 × 61 × 61 mm (4.4 × 2.4 × 2.4 in)
Package Includes Night Vision Monocular, Head Mount Assembly, Brow Pad, Eye Cup, Helmet/ Head Mount Adapter, System Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Diopter Lens Cap, Sacrificial Window, Demist Shield, Manual, Battery
