AGM NVG-50 NL1 ECHO IIT - Dual Tube Night Vision Goggle/Binocular, FOM 1800-2300, Auto-Gated Gen 2+, P43-Green Phosphor
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description

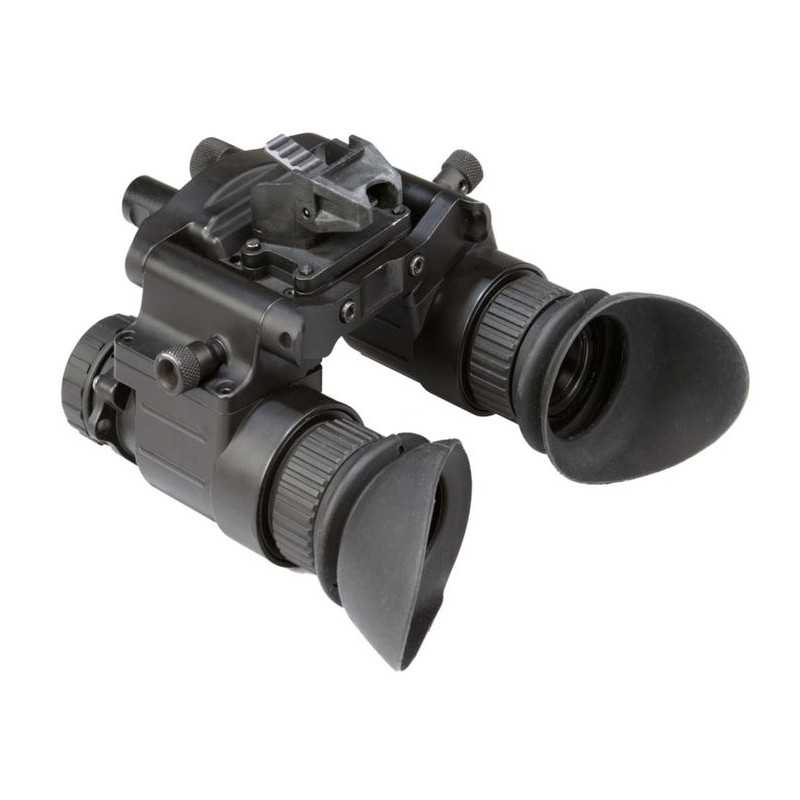

AGM NVG-50 NL1 ECHO IIT - Advanced Dual Tube Night Vision Goggle/Binocular
The AGM NVG-50 NL1 ECHO IIT is an innovative, dual-channel night vision system designed for exceptional clarity and performance in low-light conditions. Featuring a wide 51° field of view, this device allows for expansive visual coverage without the need for constant repositioning. Built with robust and lightweight materials, the NVG-50 is engineered to withstand demanding environments while maintaining ease of use.
This night vision goggle is equipped with Generation 2+ commercial-grade image intensifier tubes, providing a compelling balance between cost and performance. The bright light cut-off feature safeguards the device's sensitive electronics, while the manual gain control allows users to adjust image brightness to suit varying light conditions, ensuring optimal viewing experiences.
Powered by a single AA alkaline or CR123A battery, the NVG-50 offers up to 20 hours of operation. Additionally, it includes an integral infrared illuminator, facilitating reading and close-range activities in complete darkness.
- Lowest Price on Gen 2+ Green Phosphor ECHO monocular in the market
- Redundant Dual-Tube Design for improved reliability
- True Stereoscopic Vision for depth perception
- Wide 51° Field of View
- Lightweight & Compact
- Head Mountable for hands-free operation
- Bright Light Cut-Off for electronics protection
- Manual Gain Control for personalized image brightness
- Ergonomic Controls that are simple and easy to operate
- Built-in Infrared Illuminator with flood lens
- Operates on Single CR123A Lithium or AA Battery
- Limited 3-Year Warranty
For hands-free use, the NVG-50 can be mounted on various systems such as AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or any mounts with a mini-rail interface.
Mounting Options Include:
- NVG Interface Shoe (preinstalled) for standard dovetail type headset and helmet mounts
- Bayonet/Horn Interface Shoe (included) for bayonet/horn type mounts
- NVG Interface Shoe with Connector (optional) for battery pack connection
- Mini-Rail Interface Shoe for mini-rail interface mounts
Specifications
Image Intensifier Tube: Gen 2+ "Level 1" "Photonis Autogated" with Manual Gain Control ECHO IIT
Resolution: 57-74 lp/mm
FOM: 1600-2000
SNR: 23-28
Magnification: 1x (3x optional)
Lens System: 19 mm; F/1.26
Focus Range: 0.25 m to infinity
Eye Relief: 17 mm
Diopter Adjustment: -6 to +2 dpt
Interpupillary Distance: 56 to 72 mm
LED Indicators: Low battery, IR on, Excessive light conditions
Battery Type: One CR123A (3V) or AA (1.5 V)
Battery Life: Up to 20 hours at 20°C (up to 80 hours with optional battery pack)
Operating Temperature Range: -40°C to +50°C (-40°F to +122°F)
Storage Temperature Range: -50°C to +50°C (-58°F to +122°F)
Weight: 615 g (1.35 lbs)
Overall Dimensions: 112 × 118 × 74 mm (4.4 × 4.6 × 2.9 in)
Package Includes
- Soft Carrying Case
- Mounting Bracket (preinstalled NVG Interface Shoe)
- Demist Shield
- Sacrificial Window
- Bayonet/Horn Interface Shoe
- Packing Box
- User Manual
- Lens Tissue
- One Lithium Battery
- CR123A Battery Adapter CR123A 3V / AA 1.5V
Data sheet
