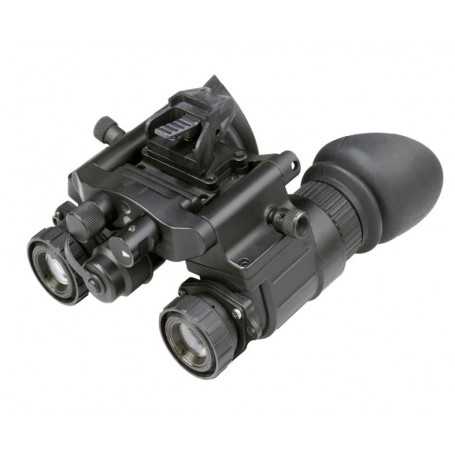

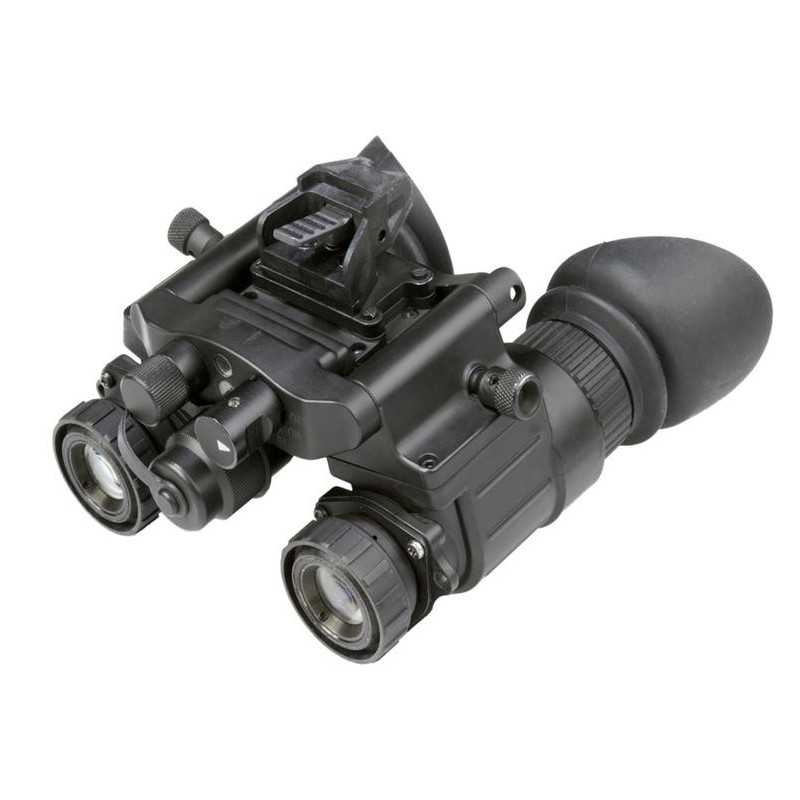

AGM NVG-50 NW1 ECHO IIT - Dual Tube Night Vision Goggle/Binocular, FOM 1800-2300 Auto-Gated Gen 2+, P45-White Phosphor

The AGM NVG-50 is a dual-channel night vision system. With a 51° field of view (FOV), it provides a large visual field without needing to move the binoculars. The AGM NVG-50 features best on the consumer market multi-coated optics and is built to last with a lightweight and robust housing. The device is built around Gen 2 commercial grade image intensifier tubes so the very attractive price/performance ratio is here. The bright light cut-off feature ensures that your high-quality electronics is protected. The NVG-40 is also equipped with Manual Gain Control, which adjusts the image brightness, so you can personalize your night vision experience during the most daring adventures. The AGM NVG-50 is also equipped with Manual Gain Control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. Operating from a single AA alkaline battery or CR123A battery, the NVG-50 can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.

• LOWEST PRICE on Gen 2+ White Phosphor ECHO monocular on the market
• Redundant dual-tube design
• True stereoscopic vision
• Wide 51° field of view
• Lightweight & compact
• Head mountable for hands-free operation
• Bright light cut-off
• Manual gain control
• Ergonomic, simple, easy to operate controls
• Built-in Infrared illuminator and flood lens
• Utilizes single CR123A lithium or AA battery
• Limited 3-year warranty

For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.

Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.

NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.

Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount

level 1

maximum spots allowed in each zone*

spot size (in) zone 1 zone 2 zone 3

>.015 or larger 0 0 0

>.012 – .015 0 0 0

>.009 – .012 0 0 0

>.006 – .009 0 1 2

.003 – .006 1 2 3

note: not more than 4 spots allowed

PACKAGE INCLUDES

Soft Carrying Case | Mounting Bracket (preinstalled NVG Interface Shoe) | Demist Shield | Sacrificial Window | Bayonet/Horn Interface Shoe | Packing Box | User Manual | Lens Tissue | One Lithium Battery | CR123A Battery adapter CR123A 3V / AA 1.5V

SPECIFICATIONS

Image Intensifier Tube Gen 2+ "Level 1" "Photonis Autogated" Manual Gain control ECHO IIT White Phosphor

Cosmetic level of IIT NW1i the best quality

Resolution 57-74 lp/mm

FOM 1600-2000

SNR 23-28

Visible Spots Clear FOV

NW1i manually selected tubes, featured advanced clear-cut image. Image’s quality approximates to Gen 3 level.

Magnification 1x (3x optional)

Lens System 19 mm; F/1.26

FOV 51°

Focus Range 0.25 m to infinity

Eye Relief 17 mm

Diopter Adjustment -6 to +2 dpt

Interpupillary Distance 56 to 72 mm

Led Indicators Low battery; IR on; Excessive light conditions

Manual Gain Control Yes

Bright Light Cut-Off Yes

Automatic Shut-Off System Yes

Infrared Illuminator Yes

Battery Type One CR123A (3V) or AA (1.5 V)

Battery Life (Operating) Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)

Operating Temperature Range -40°C to +50°C (-40°F to +122°F)

Storage Temperature Range -50°C to +50°C (-58°F to +122°F)

Weight 615 g (1.35 lbs)

Overall Dimensions 112 × 118 × 74 mm (4.4 × 4.6 × 2.9 in)
