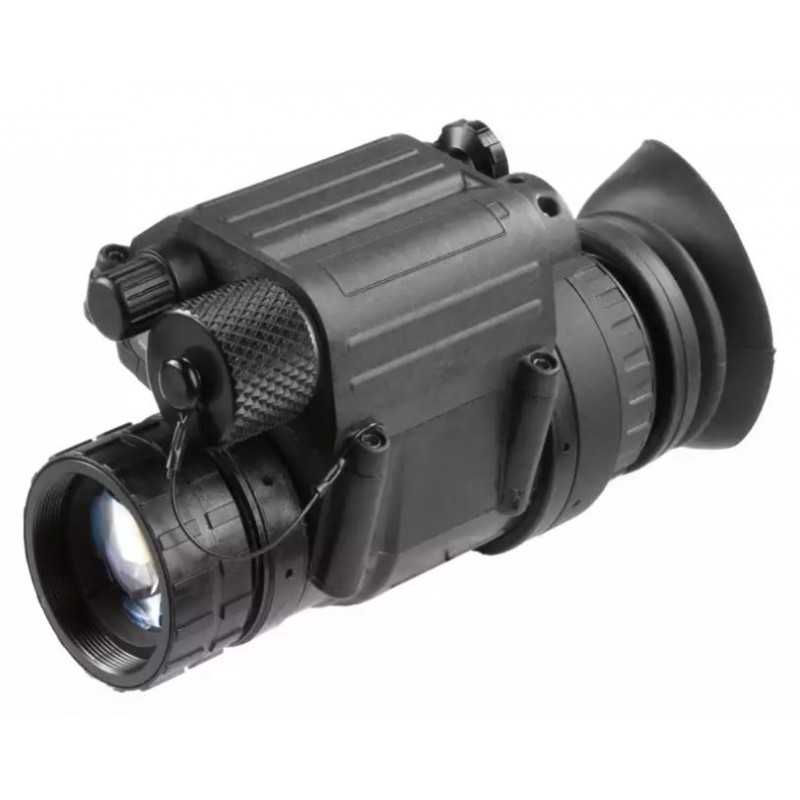

AGM PVS-14 3AW2 Night Vision Monocular

Discover the AGM PVS-14 3AW2 Night Vision Monocular, your perfect companion for nighttime exploration. Equipped with a Gen 3 Auto-Gated "White Phosphor Level 2" Image Intensifier Tube, it delivers crisp, clear images in the darkest conditions. Enjoy flexibility with standard 1x magnification, plus optional 3x and 5x for varied viewing needs. The 26 mm F/1.2 lens ensures peak performance, and a 40° field of view offers an expansive visual range. Elevate your nocturnal adventures with this reliable, high-performing monocular. Unit Part: 11P14123484121.

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

AGM PVS-14 Night Vision Monocular: Advanced Multi-Purpose Night Vision Device

The AGM PVS-14 Night Vision Monocular is an exceptional piece of equipment designed for versatility and reliability in the most demanding conditions. Originally developed for the United States Military, this monocular has demonstrated its capabilities across the globe in various challenging environments.

Its lightweight and rugged design make it perfect for handheld use, and it can also be mounted on the included head harness or combat helmets with the right accessories. The PVS-14 meets 810G Military standards, ensuring both durability and functionality.

Key features of the monocular include manual gain control, an automatic bright light shut-off to protect the high-quality photocathode tube, and a built-in Infrared (IR) illuminator. With a weight of less than 12.4 ounces (0.32 kilograms), it is a full-featured unit that offers unmatched night vision capabilities for various applications.

Features:

  • Compact, rugged design
  • Waterproof
  • Head or helmet-mountable for hands-free usage
  • Manual gain control
  • Ergonomic, simple, easy-to-operate controls
  • Built-in Infrared illuminator and flood lens
  • Limited Three-year warranty

Specifications:

  • Image Intensifier Tube: Gen 3 Auto-Gated "White Phosphor Level 2"
  • Resolution: 64-72 lp/mm
  • Field of View Cleanness by Zone: Gen 3 IIT 3AW2 is the second-best quality offered by AGM with a very limited number of spots in Zone 1.
  • Magnification: 1x (3x and 5x optional)
  • Lens System: 26 mm; F/1.2
  • FOV: 40°
  • Focus Range: 0.25 m to infinity
  • Diopter Adjustment: -6 to +4 dpt
  • LED Indicators: Low battery; IR On; Excessive light conditions
  • Infrared Illuminator: Yes
  • Manual Gain Control: Yes
  • Bright Light Cut-Off: Yes
  • Automatic Shut-Off System: Yes
  • Battery Type: One AA Alkaline
  • Battery Life (Operating): Up to 50 hours at 20°C
  • Operating Temperature Range: -51° C to +49° C (-60° F to 120° F)
  • Storage Temperature Range: -51° C to +85° C (-60° F to 185° F)
  • Weight: 0.32 kg (12.4 oz)
  • Overall Dimensions: 114 x 63 x 69 mm (4.5 x 2.5 x 2.7 in)

Package Includes:

  • Head Mount Assembly
  • Brow Pad
  • Eye Cup
  • Helmet/Head Mount Adapter
  • System Soft Carrying Case
  • Daylight Filter
  • Shoulder Strap
  • Lens Paper
  • Diopter Lens Cap
  • Sacrificial Window
  • Demist Shields
  • Operator’s Manual
  • Battery
This HTML-formatted description provides a clear and organized layout, making it easy for customers to understand the features and specifications of the AGM PVS-14 Night Vision Monocular. The use of headings, paragraphs, and lists enhances readability and presentation.

Data sheet

A26NCVY4QA
