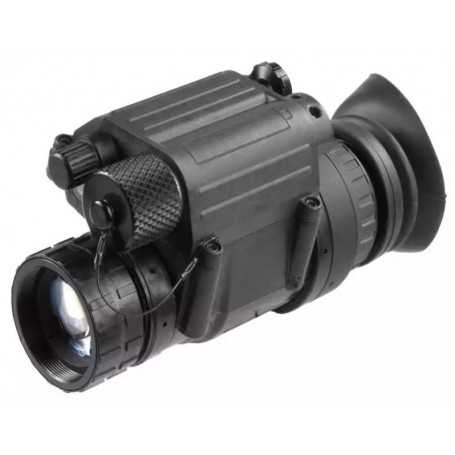

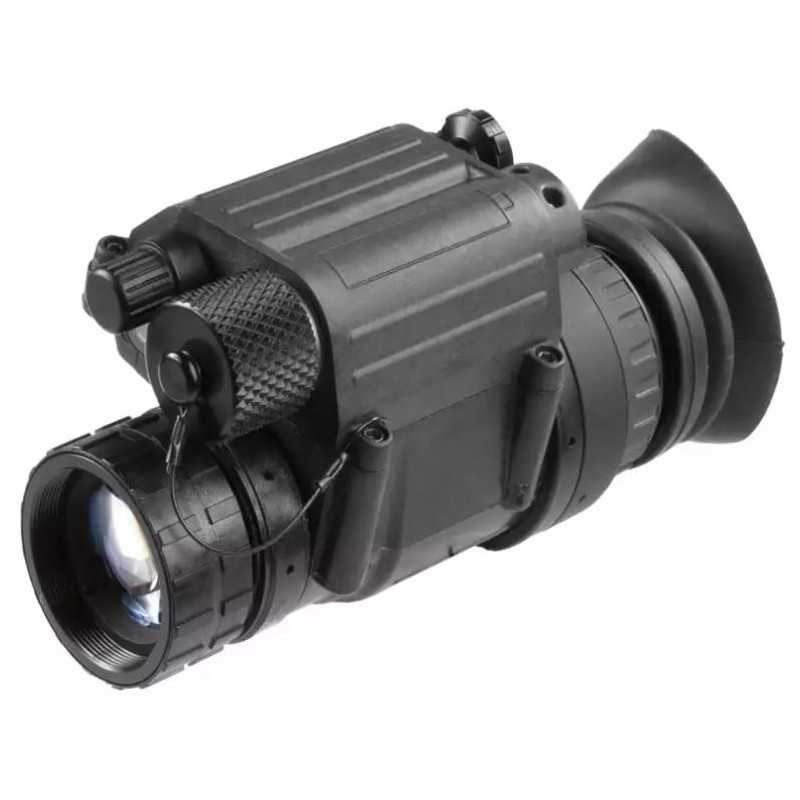

AGM PVS-14 3AW1 Night Vision Monocular

The AGM PVS-14 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device that has repeatedly proven itself in combat. The PVS-14 design was originally commissioned by the United States Military to enable nighttime operations. This monocular is used globally in some of the most challenging environments. The PVS-14 can be used as a handheld device, or mounted on the included head harness. With the proper accessories, it can also be mounted to combat helmets, providing night vision capabilities to daytime optical sights. The PVS-14 monocular conforms to 810G Military standards and demonstrates the highest quality form and function. The PVS-14 monocular is a full-featured unit. Weighing less than 12.4 ounces/ 0.32 kilograms. The unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. AGM’s PVS14 includes an array of optional accessories to support virtually any operation.

• Compact, rugged design
• Waterproof
• Head or helmet-mountable for hands-free usage
• Manual gain control
• Ergonomic, simple, easy-to-operate controls
• Built-in Infrared illuminator and flood lens
• Limited Three-year warranty

SPECIFICATIONS

Image Intensifier Tube Gen 3 Auto-Gated "White Phosphor Level 1"

Resolution 64-72 lp/mm

Field of view cleanness by zone Gen 3 IIT 3AW1 is offered with high quality and practically no visible spots in Zone 1.

Magnification 1x (3x and 5x optional)

Lens System 26 mm; F/1.2

FOV 40°

Focus Range 0.25 m to infinity

Diopter Adjustment -6 to +4 dpt

Led Indicators Low battery; IR On; Excessive light conditions

Infrared Illuminator Yes

Manual Gain Control Yes

Bright Light Cut-Off Yes

Automatic Shut-Off System Yes

Battery Type One AA Alkaline

Battery Life (Operating) Up to 50 hours at 20°C

Operating Temperature Range -51° C to +49° C (-60° F to 120° F)

Storage Temperature Range -51° C to +85° C (-60° F to 185° F)

Weight 0.32 kg (12.4 oz)

Overall Dimensions 114 x 63x 69 mm (4,5 x 2,5 x 2,7 in)

Package Includes Head Mount Assembly, Brow Pad, Eye Cup, Helmet/ Head Mount Adapter, System Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Diopter Lens Cap, Sacrificial Window, Demist Shields, Operator’s Manual, Battery
