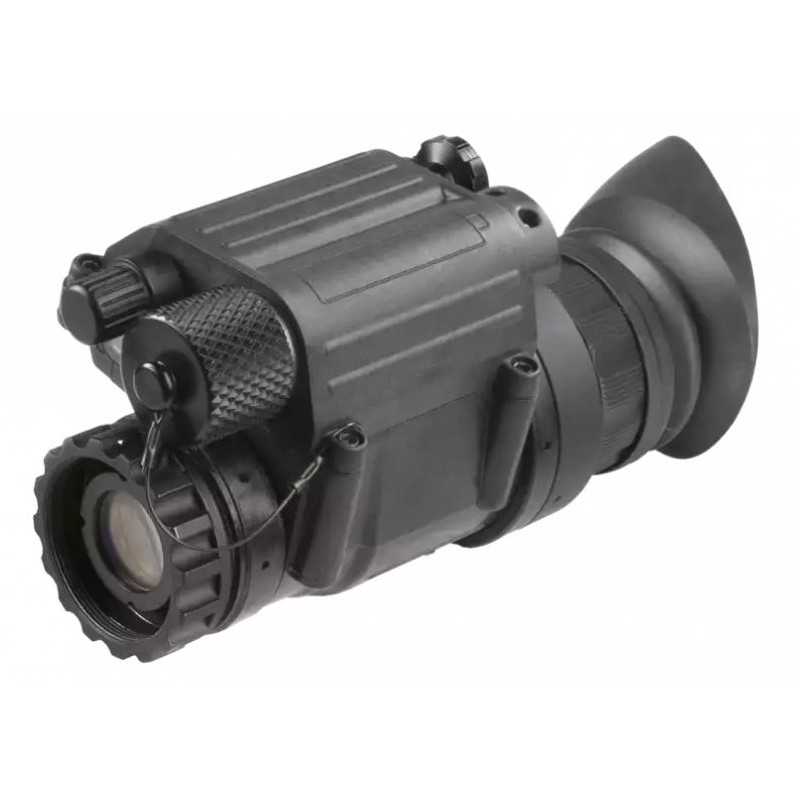

AGM PVS14-51 3AW1 Night Vision Monocular

The AGM PVS14-51 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device that has repeatedly proven itself in combat. The PVS14-51 design was originally commissioned by the United States Military to enable nighttime operations. This monocular is used globally in some of the most challenging environments. The PVS14-51 can be used as a handheld device, or mounted on the included head harness. With the proper accessories, it can also be mounted to combat helmets, providing night vision capabilities to daytime optical sights. The PVS14-51 monocular conforms to 810G Military standards and demonstrates the highest quality form and function. The PVS14-51 has an extended field of view. Its 51° FOV overs a large visual range, without requiring the operator to shift the position of the device. The PVS14-51 monocular is a full-featured unit, weighing less than 10.6 ounces/300 grams. The unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. AGM’s PVS14-51 includes an array of optional accessories to support virtually any operation.

• Wide 51° field of view
• Compact, rugged design
• Waterproof
• Head or helmet-mountable for hands-free usage
• Manual gain control
• Ergonomic, simple, easy-to-operate controls
• Built-in Infrared illuminator and flood lens
• Limited 3-year warranty

SPECIFICATIONS

Image Intensifier Tube Gen 3 Auto-Gated "White Phosphor Level 1"

Resolution 64-72 lp/mm

Field of view cleanness by zone Gen 3 IIT 3AW1 is offered with high quality and practically no visible spots in Zone 1.

Magnification 1x

Lens System 19 mm; F/1.26

FOV 51°

Focus Range 0.25 m to infinity

Diopter Adjustment -6 to +2 diopters

Led Indicators In FOV - Low Battery - IR On - Excessive Light Conditions

Infrared Illuminator Yes

Manual Gain Control Yes

Bright Light Cut-Off Yes

Battery Type One AA 1.5V Alkaline battery

Battery Life (Operating) Up to 50 hours at 20°C

Operating Temperature Range -51° C to +49° C (-60° F to 120° F)

Storage Temperature Range -51° C to +85° C (-60° F to 185° F)

Weight 300 g (10.6 oz)

Overall Dimensions 102 × 63 × 69 mm (4.0 × 2.5 × 2.7 in)

Package Includes Night Vision Monocular, Head Mount Assembly, Brow Pad, Eye Cup, Helmet/ Head Mount Adapter, System Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Diopter Lens Cap, Sacrificial Window, Demist Shield, Manual, Battery
