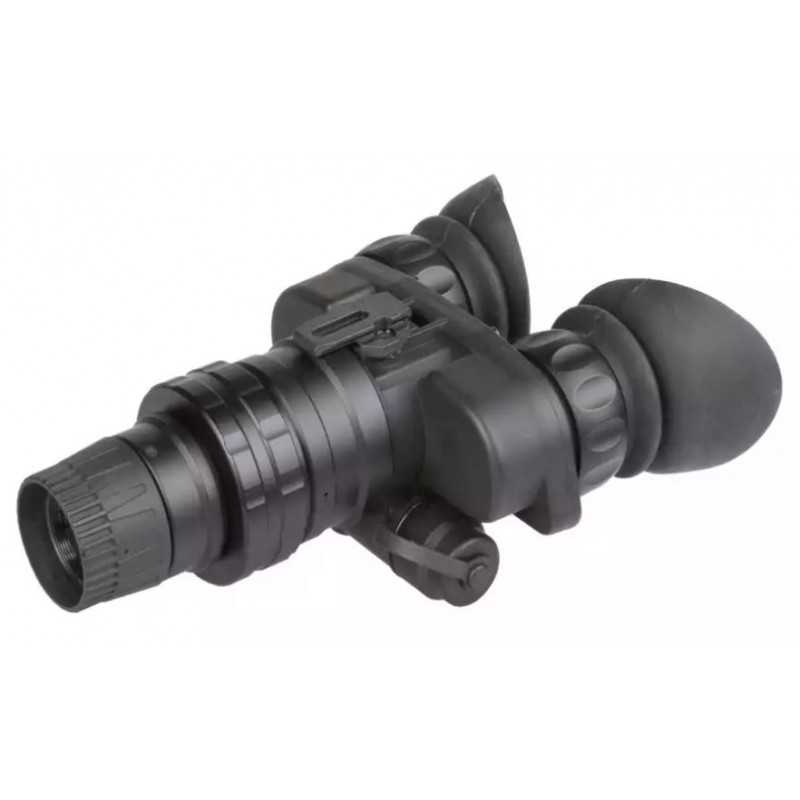

AGM WOLF-7 NW2 Night Vision Goggle

The AGM Wolf-7 is a bi-ocular Night Vision goggle system assembled with premium-grade optics and simplified electronics for outstanding dependability. The Wolf-7 provides bright and clear Night Vision images, even in the most trying conditions. Configured with an expanded choice of Gen 2+ and Gen 3 image tubes, wolf- 7 delivers high performance at any price point. The AGM Wolf-7 includes a built-in short-range IR light source and offers a wide variety of accessories such as 3X and 5X magnification lenses for mid-to-long-range viewing, head or helmet mounts for hands-free operation, and additional, high-powered IR illuminators for long-range use. Waterproof, rugged, light, and compact, the Wolf-7 is the perfect device for a variety of tough operations.

• Lightweight compact rugged goggle system
• Multi-purpose: Hand-held, head-mounted or helmet-mounted
• Comfortable flip-up headgear
• Multi-coated all-glass optics
• Wide angle infrared illuminator
• Auto brightness control
• Bright light cut-off Utilizes single CR123A lithium battery or AA Alkaline, adapter included
• Waterproof
• Limited 3-Year Warranty

SPECIFICATIONS

Image Intensifier Tube Gen 2+ "White Phosphor Level 2"

Resolution 45-57 lp/mm

Field of view cleanness by zone Gen 2 IIT NW2 is the second-best quality offered by AGM, very limited number of spots in Zone 1.

Magnification 1x

Lens System 24mm, F/1.2

FOV 40°

Focus Range 0.25 m to Infinity

Diopter Adjustment -5 to +5 dpt

Led Indicators Low battery; IR On; Excessive light conditions

Automatic Brightness Control Yes

Infrared Illuminator Yes

Bright Light Cut-Off Yes

Automatic Shut-Off System Yes

Battery Type One CR123A (3V) or AA (1.5 V)

Battery Life (Operating) Up to 60 hours at 20°C

Waterproof Yes

Operating Temperature Range -40°C to +50°C (-40°F to +122°F)

Storage Temperature Range -50°C to +70°C (-58°F to +158°F)

Weight 0.45 kg (0.9 lbs)

Overall Dimensions 188 × 122 × 70 mm (7.4 × 4.8 × 2.8 in)

Package Includes Goggle Kit W, Soft Carrying Case, Lens Cloth, Battery Adapter, User Manual
