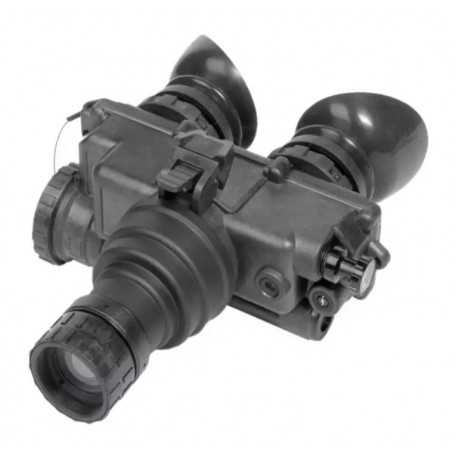

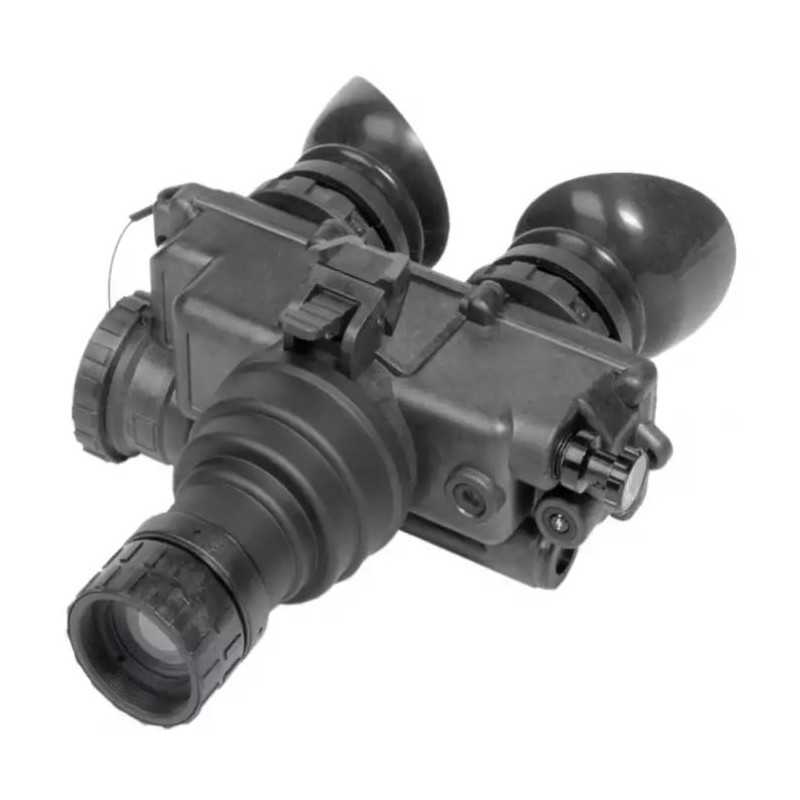

AGM PVS-7 3AW1 Night Vision Goggle

Discover the power of enhanced night vision with the AGM PVS-7 3AW1 Night Vision Goggle. Featuring a Gen 3 Auto-Gated White Phosphor Level 1 Image Intensifier Tube, these goggles deliver exceptional image clarity and contrast. With 1x magnification and a 27mm F/1.2 lens, enjoy a wide 40° field of view for easy navigation in low-light environments. Built with a durable and ergonomic design, the AGM PVS-7 3AW1 is perfect for military, law enforcement, and outdoor enthusiasts. Don't let darkness limit your adventures; explore with confidence using the AGM PVS-7 3AW1. Unit Part: 12PV7123284111.

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

AGM PVS-7 3AW1 Military-Grade Night Vision Goggles

Experience unparalleled dependability and ergonomic design with the AGM PVS-7 3AW1 Night Vision Goggles, a trusted name in military-grade optical technology. Renowned for its superior quality, the PVS-7 has consistently demonstrated its reliability in combat scenarios, making it the best AN/PVS-7 B/D system available.

This advanced night vision goggle system can be equipped with high-performance Generation 2+ and Generation 3 image intensifier tubes, available in both Green phosphor or P45 white phosphor. These goggles feature Automatic Brightness Control (ABC) to adapt image brightness to changing light conditions, ensuring clear and defined visuals.

The integrated infrared illuminator enhances your ability to operate in complete darkness without detection, and the bright light cut-off feature protects the image tube from intense light sources. Additionally, a flip-up shut-off feature is available for use with an optional helmet mount system. The PVS-7 is designed for versatility, allowing for handheld use or mounting to your head or helmet. It is also compatible with afocal magnifier lenses for enhanced long-range viewing.

Key Features:

  • Compact, rugged design
  • Waterproof construction
  • Head or helmet-mountable for hands-free operation
  • Ergonomic and user-friendly controls
  • Built-in Infrared illuminator with flood lens
  • Comes with a limited 3-Year Warranty

Specifications:

  • Image Intensifier Tube: Gen 3 Auto-Gated "White Phosphor Level 1"
  • Resolution: 64-72 lp/mm
  • Field of View Cleanness: High quality with minimal visible spots in Zone 1
  • Magnification: 1x
  • Lens System: 27 mm; F/1.2
  • Field of View (FOV): 40°
  • Focus Range: 0.2 m to infinity
  • Diopter Adjustment: -6 to +2 dpt
  • LED Indicators: Low battery, IR On, Excessive light conditions
  • Automatic Brightness Control: Yes
  • Infrared Illuminator: Yes
  • Bright Light Cut-Off: Yes
  • Automatic Shut-Off System: Yes
  • Battery Type: 2 AA Alkaline or 1 Lithium (BA-5567/U)
  • Battery Life: Up to 60 hours at 20°C
  • Operating Temperature Range: -40°C to +50°C (-40°F to +122°F)
  • Storage Temperature Range: -50°C to +70°C (-58°F to +158°F)
  • Weight: 0.68 kg (1.5 lbs)
  • Overall Dimensions: 162 × 152 × 76 mm (6.4 × 6.0 × 3.0 in)

Package Includes: Head Mount Assembly, Medium & Thick Brow Pads, Eye Cups, Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Sacrificial Window, Demist Shields, Operator’s Manual.
