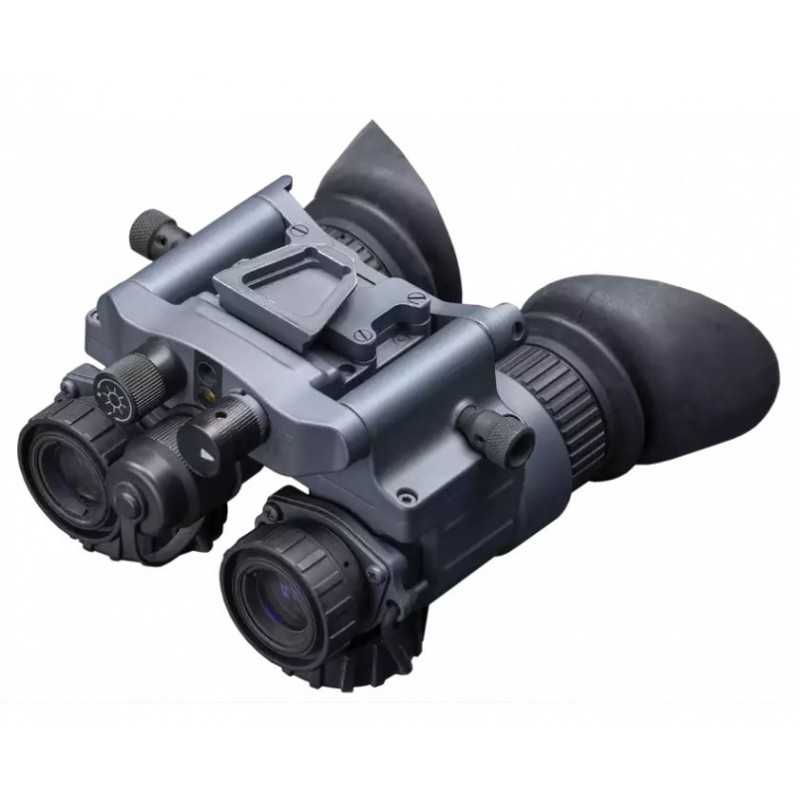

AGM NVG-50 3APW Night Vision Goggle

Introducing the AGM NVG-50G 3APW Night Vision Goggle, a must-have for any night-time adventure. Featuring superior auto-gated Gen 3 image intensifier tubes from industry leaders Elbit or L3, these goggles offer unparalleled resolution and clarity with a figure of merit (FOM) value of 2000 or higher. The standard 1x magnification ensures a wide field of view, while the optional 3x magnification enables closer inspection of distant objects. A 19mm lens system with an impressive F/1.26 aperture provides optimal light transmission, further enhancing the night vision experience. Experience the exceptional 51° field of view (FOV) with this high-quality unit, part number 14NV5123474115. Don't let the darkness hold you back – explore the night with the AGM NVG-50G 3APW Night Vision Goggle.

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The AGM NVG-50 is a dual-channel night vision system. With a 51° field of view (FOV), it provides a large visual field without needing to move the binoculars. The NVG-50 uses advanced multi-coated optics and is built to last with a compact composite housing. The device outfitted with high-performance image intensifier tube (IIT). The bright light cut-off feature ensures that the high-quality photocathode tube is protected. The NVG-50 is also equipped

with Manual Gain Control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. Operating from a single AA alkaline battery or CR123A battery, the NVG-50 can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.

For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.

Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.

NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.

Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount

  • Redundant dual-tube design
  • True stereoscopic vision
  • Wide 51° field of view
  • Elbit or L3 Auto-Gated Gen 3 Tubes (FOM ≥2000)
  • P45-White Phosphor IIT
  • Lightweight & compact
  • Head or helmet mountable for hands-free operation
  • Bright light cut-off
  • Manual gain control
  • Ergonomic, simple, easy to operate controls
  • Built-in Infrared illuminator and flood lens
  • Utilizes single CR123A lithium or AA battery
  • Limited 3-year warranty
  • Made in the USA

LIMITED EDITION AGM GRAY NVG-50

We have L3 and Elbit tubes in stock and ready to assemble these units. Tube FOM rating will range from 2000 up to 2800! Spec sheets with more detail are included with every purchase.



PACKAGE INCLUDES

NVG Interface Shoe

Bayonet/Horn Interface Shoe

Demist Shield (2)

Sacrificial Window

Packing Box

Soft Carrying Case

Lens Cloth

Battery Adapter

User Manual



SPECIFICATIONS

Image Intensifier Tube Elbit or L3 Auto-Gated Gen 3 Tubes (FOM ≥2000)

Resolution 64-72 lp/mm

Magnification 1x (3x optional)

Lens System 19 mm; F/1.26

FOV 51°

Focus Range 0.25 m to infinity

Eye Relief 17 mm

Diopter Adjustment -6 to +2 dpt

Led Indicators Low battery; IR on; Excessive light conditions

Infrared Illuminator Yes

Manual Gain Control Yes

Bright Light Cut-Off Yes

Automatic Shut-Off System Yes

Battery Type One CR123A (3V) or AA (1.5 V)

Battery Life (Operating) Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)

Operating Temperature Range -40°C to +50°C (-40°F to +122°F)

Storage Temperature Range -50°C to +50°C (-58°F to +122°F)

Weight 615 g (1.35 lbs)

Overall Dimensions 112 × 118 × 74 mm (4.4 × 4.6 × 2.9 in)
