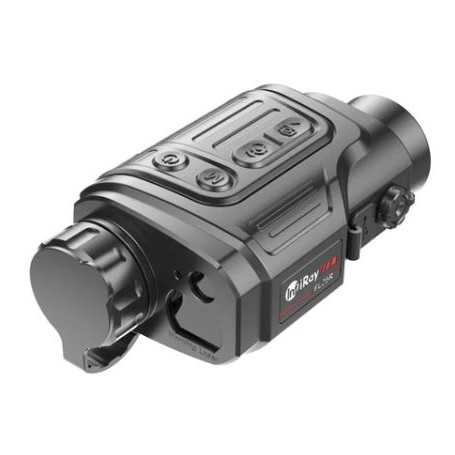

Infiray Finder FL35R Thermal Imaging Monocular
Introducing the InfiRay Finder FL35R Thermal Imaging Monocular, a high-performance device designed for ultimate outdoor exploration and surveillance. Featuring a 384x288 resolution, 12µm VOx sensor, and an impressive <40mk NETD sensitivity, this monocular delivers crystal clear thermal images at a rapid 50Hz frame rate. Equipped with a 35mm lens, 768x1024 OLED display, and 1x/2x/3x/4x magnification, it ensures sharp and detailed visualization. The built-in compass and Msensor provide reliable navigation during your adventures. With integrated Wi-Fi, seamless connection to your devices is made possible. Store your captured images and data easily with the 32GB internal storage. The Finder FL35R boasts a long-lasting 6-hour battery life and an impressive 1298m detection range, making it the ideal companion for all your outdoor activities.
1990 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
Thermal Imaging Scope Finder Series
The Finder series products are light and easy to carry, especially suitable for one-handed operation that can be put in a pocket anytime and anywhere. The compact design and built-in laser rangerfinder makes the Finder the best choice for outdoor investigation.
Meet Finder Series
The Finder series products are light and easy to carry, especially suitable for one-handed operation that can be put in a pocket anytime and anywhere. The compact design makes the Finder the best choice for outdoor investigation.
High Image Quality
The advanced image processing ability of the InfiRay detector, which has high performance electronics and optimized infrared optics, creates excellent image clarity and provides better detection and classification, both in day and night.
12 µm Thermal Imaging Sensor
High performance 12 μm pixel pitch detectors are embedded. Powerful objective lens in combination with a 12 µm professional grade thermal imaging sensor provides exceptional detection capabilities. A standard 1,7 m (5.58 ft) tall object can be detected at a 1300 m (1420 yds) distance in complete darkness.
Long Detection Range 1298 m
The powerful objective lens combined with a 12 μm professional grade thermal imaging sensor provides exceptional detection capabilities.
High Image Frequency 50 Hz
The 50 Hz refresh rate guarantees that you will capture every moment that you are interested in.
HD Micro Display
1280×960 high-resolution internal display offers sharp image and vivid colors.
Integrated Laser Rangefinder (LRF) 800m
The Finder series has a built-in laser ranging module, which helps to quickly and accurately capture and display the target distance. The ranging accuracy is ± 1 m and the maximum ranging distance is 800m. Accurate distance readings help to quickly assess the size of territory, distance and relief. Integrated, precision laser rangefinder provides accurate rangefinding, it provides both single ranging and continuous ranging modes. Continuous ranging can be quickly activated to adapt to the constantly changing distance of the observed object.
Pocket Machine
The compact size and light weight makes it easy to carry and operate with one hand. It can be put into the pocket anytime and anywhere. The Finder weighs only 320 g，which is lighter than conventional rangefinders, but much more powerful. Compact size of thermal imager makes it an optimal portable unit for scouting and spotting.
Infrared Sensor Switch
By sensing the reflection, the infrared sensor switch control the display on and off automatically which saves power and extends the device's operation time. It also has the advantage of high sensitivity, strong anti-interference ability and stable working performance.
Built-in Video Recorder and WiFi Connection
With built-in storage space , Finder series support to save the interesting moments in the form of photos or video for sharing with colleagues, friends and family. It can store many hours of recorded video and tens of photos.
App Supported
Built in Wi-Fi module provides connectivity of Finder with Android or iOS smartphones or tablets. The smartphone and thermal imager combination offers a set of unique features such as direct image streaming, downloading and sharing recorded files, firmware.
Built-in Accelerometer and Digital Compass
Built-in accelerometer and digital compass improves accuracy by precisely identifying cant and angles.
Model FL35R FH35R
Resolution, pixels 384x288 640x512
Pixel size, um 12
Sensor NETD, MK 40 35
Frame refresh rate, Hz 50
Objective Lens F35/ 1.0
Field of view, degrees 7.5X5.7 12.6X10.1
Optical magnification, x 2 ~ 8 3.4 ~ 13.6
Digital zoom, x x1, x2, x3, x4
Display Type OLED, 1024 x 768
Battery type Li-ion battery pack, replaceable
Max. battery life (t=25℃) ★, h 6 5.5
Laser rangefinder range, m 800 ±1
Amount of built-in memory, GB 32
Dimension, mm 160x90x50
Weight(without replaceable battery), g 400
Detection Range, m 1818
(Target size:1.7m×0.5m, P(n)=99%)
Actual operation time depends on the intensity of Wi-Fi use and the built-in video recorder.
