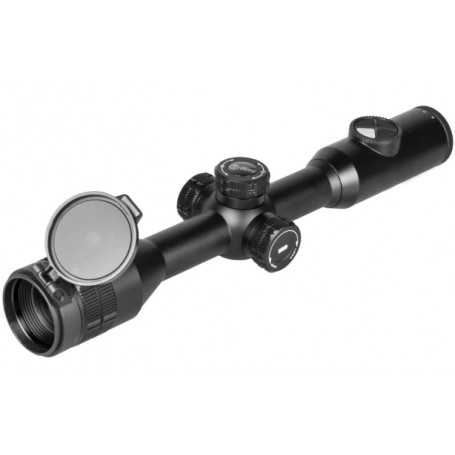

Infiray TH35 V2 - Thermal Rifle Scope

The TH35 features a crisp 35mm objective lens focusing the available thermal radiation. The field of view on this thermal weapon sight is 8.8 degrees. It features a 3 times digital zoom to enlarge your subject. The eye relief distance is measured at 50mm.

Behind the lens of the TH35 you can find the (uncooled, 12 micrometer) 464 x 464 pixels thermal core refreshing the image at 50Hz. The thermal contrast (NETD) of this thermal weapon sight is <40mK.

The physical dimensions of this thermal weapon sight read 375 x 85 x 75mm (lwh) weighing in at 850 grams. It handles dust, shocks and water (splashes).

The TH35 is built to be used in hunting adventures.

Features

• Over 11 hours battery life
• Custom Squared (464 * 464 pixels) sensor
• Round OLED screen
• 1000G shock resistance
• 32 Gb Storage

Specifications

General

Lens 35 mm

Eye relief distance 50 mm

Optical zoom 3 x

Digital zoom 3 x

FOV (h/v) 8.8 ° / 8.8 °

Thermal type Uncooled

Sensor resolution (h/v) 464 pixels / 464 pixels

Pixel pitch 12 µm

Sensitivity 40 mK

Display resolution (h/v) 1024 pixels / 1024 pixels

Refresh rate 50 Hz

Image polarity White hot, black hot, red hot, color, hot target highlight

Output screen color Full color

Rail details Mounts on standard 30 mm scope rings

Size and weight

Dimensions (l/w/h) 375 mm / 85 mm / 75 mm

Weight 850 g

Battery

Type 18500

Number of batteries 1

Battery life 11 hours

Replaceable YES

Durability

Dustproof         YES

Shockproof YES

Waterproof YES

Submersible      NO

Appliances

Surveillance      NO

Hunting              YES

Law enforcement   NO

Search & rescue     NO

Military              NO

Fire fighting      NO

Thermography      NO

DRI Ranges

DRI stands for Detection, Recognition and Identification and is based on the widely used Johnson's criteria.

• Detection Detect if an object is present
• Recognition See what type of object it is (i.e. person, vehicle, airplane)
• Identification For example see if someone is a friend or foe

Detection, Recognition, Identification

Rabbit 525 meters 131 meters 65 meters

Person 1847 meters 461 meters 230 meters

Vehicle 4472 meters 1118 meters 559 meters
