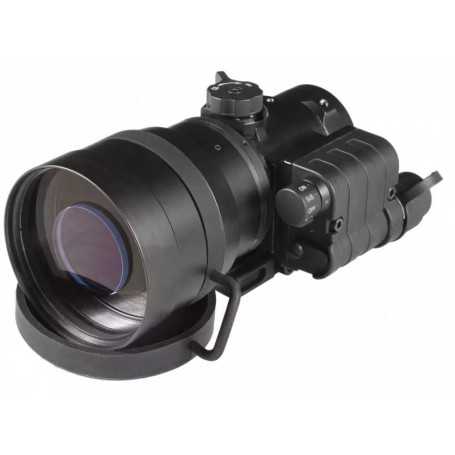

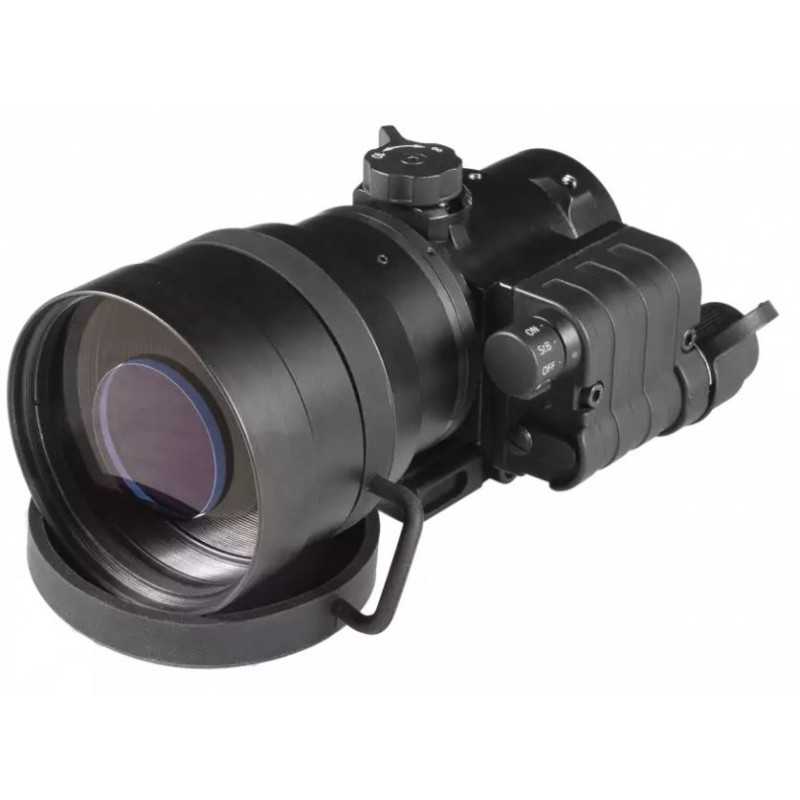

AGM Comanche-22 3AW1 - Night Vision Clip-On System

Enhance your nighttime vision with the AGM Comanche-22 3AW1 Night Vision Clip-On System. Featuring a Generation 3 Auto-Gated White Phosphor Level 1 Image Intensifier Tube, this device delivers clear images even in low light. Its 1x magnification and 80mm F/1.44 lens provide a broad 12° field of view, perfect for quick target acquisition and heightened situational awareness. Seamlessly integrate it with your current optics, compatible with Unit Part 16CO2123284111. Upgrade your gear with the AGM Comanche-22 3AW1 and gain the upper hand in night vision technology.

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

AGM Comanche 22 Night Vision Clip-On System

The AGM Comanche 22 Night Vision Clip-On System represents the forefront of night vision technology, designed specifically for mid-range nighttime shooting. This system offers exceptional clarity, reliability, and versatility, ensuring high performance at an affordable price. Transform your standard day scope into a powerful Night Vision Device without the need for re-zeroing. This innovative system mounts easily to a Weaver or Picatinny rail and supports day scopes with up to 7x magnification, providing enhanced target acquisition and aiming capabilities for challenging missions.

Key Features

  • Effortless Conversion: Quickly convert your daytime scopes into night vision devices without re-zeroing.
  • Easy Mounting: Attaches in front of any daytime scope on a standard Weaver or Picatinny rail.
  • Power Options: Operates on a single Alkaline 1.5 V AA or 3 V CR123A Lithium battery.
  • Bright-Light Cut-Off: Protects the device from damage due to excessive light exposure.
  • Convenient Mounting: Features a quick-release mount for easy attachment and removal.
  • Warranty: Comes with a limited two-year warranty for peace of mind.

Specifications

  • Image Intensifier Tube: Gen 3 Auto-Gated "White Phosphor Level 1"
  • Resolution: 64-72 lp/mm
  • Magnification: Unity 1x
  • Lens System: 80 mm; F/1.44
  • Field of View (FOV): 12°
  • Focus Range: 10m to Infinity
  • Controls: Direct
  • LED Indicators: Low battery; Excessive light conditions
  • Infrared Illuminator: Detachable; Long-range (not included)
  • Bright Light Cut-Off: Yes
  • Automatic Shut-Off: Yes
  • Battery Type: One CR123A (3V) or AA (1.5 V)
  • Battery Life: Up to 60 hours at 20°C
  • Exit Pupil Diameter: 22 mm
  • Operating Temperature Range: -40°C to +50°C (-40°F to +122°F)
  • Storage Temperature Range: -50°C to +50°C (-58°F to +122°F)
  • Weight: 0.75 kg (1.65 lbs)
  • Overall Dimensions: 168×85×80 mm (6.6×3.3×3.1 in)

Package Includes

  • Quick-Release Mount
  • Battery Adapter
  • CR123A Battery
  • Wireless Remote Control
  • Picatinny Adapter for Wireless Remote Control
  • Light Suppressor for Day Scope
  • Light Suppressor 1
  • Light Suppressor 2
  • Light Suppressor 3
  • User Manual
  • Carrying Case

The AGM Comanche 22 is an indispensable tool for those requiring precision and reliability in night vision applications. Ideal for tactical missions, hunting, or any nighttime activity, this system ensures you won't miss a thing in the dark.
