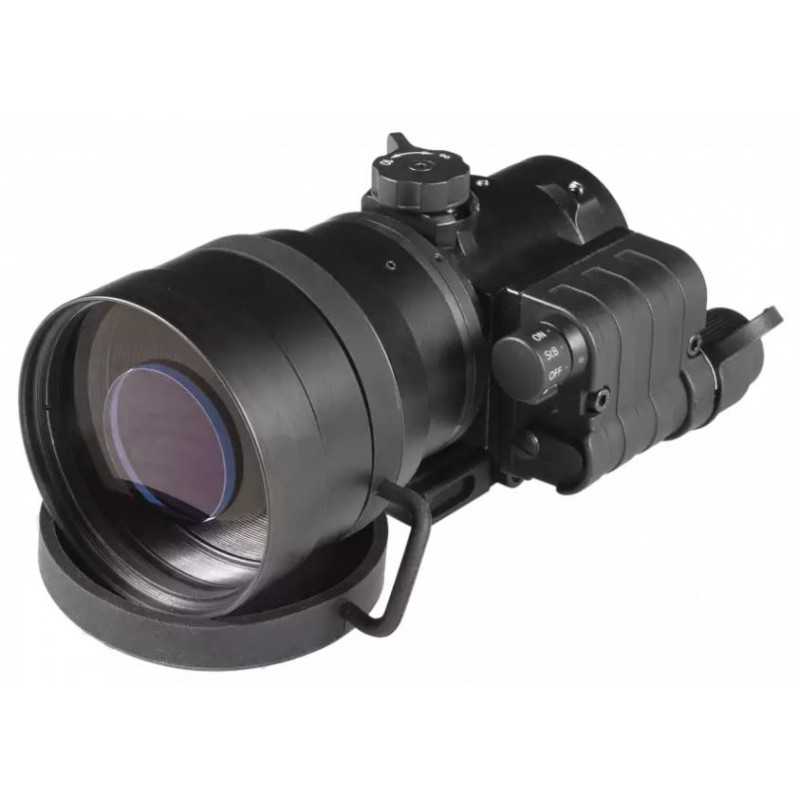

AGM Comanche-22 3AL1 - Night Vision Clip-On System

Introducing the AGM Comanche-22 3AL1 Night Vision Clip-On System: a state-of-the-art device designed to enhance your visibility in low-light conditions. Equipped with a Gen 3 Auto-Gated Image Intensifier Tube at "Level 1" and Unity 1x magnification, this powerful tool provides sharp and clear images even in the darkest environments. Its 80mm F/1.44 lens system ensures optimal light transmission, while the 12° field of view offers a wide coverage area. Ideal for both professional and recreational use, the Comanche-22 3AL1 easily attaches to various optical devices, enhancing their performance without affecting the original zero. Make the most of your nighttime adventures with the precision and reliability of our AGM Comanche-22 3AL1 Night Vision system (unit part: 16CO2123283111).
100% secure payments

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Olesia Ushakova
Product Manager
Українська / Polski
+48695005004
+48695005004
Telegram +48695005004
[email protected]

Description

AGM Comanche 22 Night Vision Clip-On (NVCO) system uses the latest advances in night vision clip-on technology. Designed for mid-range nighttime shooting, the Comanche 22 delivers exceptional clarity, reliability, and versatility providing the most significant functionality and features at the lowest possible price. The Comanche 22 is mounted to a standard Weaver or Picatinny rail in front of an existing day scope; transforming it into a Night Vision Device with no re-zeroing required. This NVCO can be used with day scopes of up to 7x magnification for optimal performance and is equipped with a quick release mount and wireless remote control. It provides unmatched target acquisition and enhanced aiming capabilities, making it extremely practical and effective during the most challenging missions.

  • Simple, quick conversion of daytime scopes to NVDs
  • Mounts in front of any daytime scope, no re-zeroing required
  • Powered by a single Alkaline 1.5 V AA or 3 V CR123A Lithium battery
  • Bright-light cut-off system
  • Quick-release mount
  • Limited two-year warranty



SPECIFICATIONS

Image Intensifier Tube Gen 3 Auto-Gated "Level 1"

Resolution 64-72 lp/mm

Magnification Unity 1x

Lens System 80 mm; F/1.44

FOV 12°

Focus Range 10m to infinity

Controls Direct

Led Indicators Low battery; Excessive light conditions

Infrared Illuminator Detachable; Long-range (not included)

Bright Light Cut-Off Yes

Automatic Shut-Off System Yes

Battery Type One CR123A (3V) or AA (1.5 V)

Battery Life (Operating) Up to 60 hours at 20°C

Exit Pupil Diameter 22 mm

Operating Temperature Range -40°C to +50°C (-40°F to +122°F)

Storage Temperature Range -50°C to +50°C (-58°F to +122°F)

Weight 0.75 kg (1.65 lbs)

Overall Dimensions 168×85×80 mm ( 6.6×3.3×3.1 in)

Package Includes Quick-Release Mount, Battery Adapter, CR123A Battery, Wireless Remote Control, Picatinny Adapter for Wireless Remote Control, Light Suppressor for Day Scope, Light Suppressor 1, Light Suppressor 2, Light Suppressor 3, User Manual, Carrying Case
