AGM Comanche-40 3AP - Night Vision Clip-On System
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description

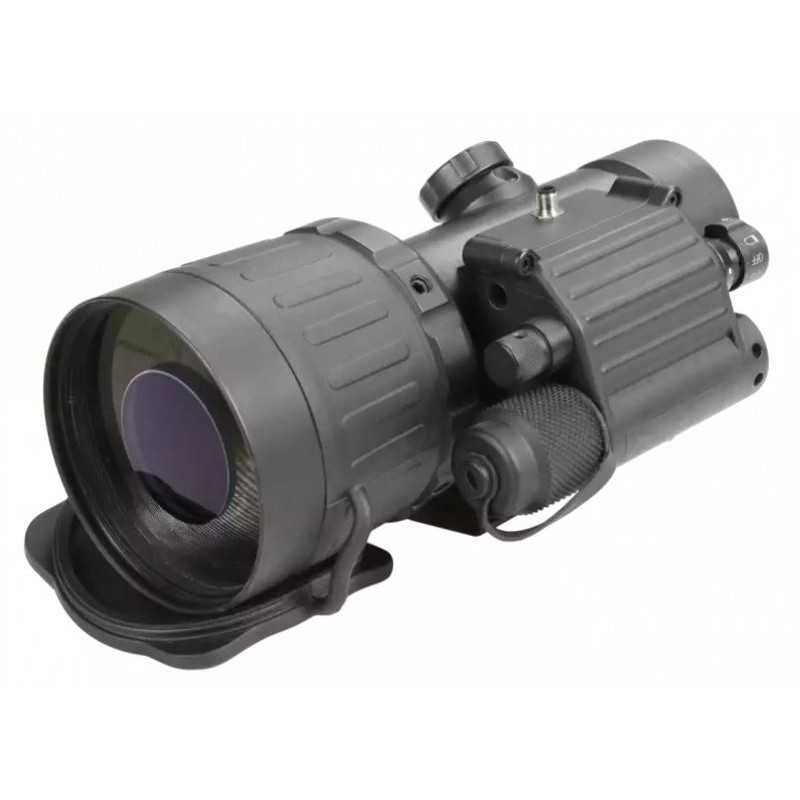

AGM Comanche-40 3AP Night Vision Clip-On System
The AGM Comanche-40 3AP Night Vision Clip-On System is at the forefront of night vision technology, offering exceptional performance for mid-range nighttime shooting. This innovative device transforms your existing day scope into a powerful night vision device without the need for re-zeroing, ensuring seamless transitions and enhanced target acquisition.
Easily mountable on standard Weaver or Picatinny rails, the Comanche-40 is designed for compatibility with day scopes up to 12x magnification. It features a quick-release mount and a wireless remote control, providing users with unparalleled convenience and control. Whether you're on a challenging mission or enjoying recreational shooting, the Comanche-40 delivers unmatched clarity, reliability, and versatility.
- Quick Conversion: Seamlessly converts day scopes to night vision devices
- Manual Gain Control: Adjust brightness settings manually for optimal viewing
- No Re-Zeroing: Mounts in front of any daytime scope without the need for re-zeroing
- Power Source: Operates on a single Alkaline 1.5 V AA or 3 V CR123A Lithium battery
- Bright-Light Cut-Off System: Protects the device from intense light exposure
- Quick-Release Mount: Easily attach and detach the device
- Warranty: Comes with a limited two-year warranty
Specifications
- Image Intensifier Tube: Gen 3 Auto-Gated "3AP" FOM 1600-2000
- Resolution: 64-72 lp/mm
- Magnification: 1x
- Lens System: 80 mm; F/1.44
- Field of View (FOV): 12°
- Focus Range: 10 m to Infinity
- Controls: Direct
- LED Indicators: Low battery; Excessive light conditions
- Infrared Illuminator: Detachable Long Range IR Illuminator (not included)
- Manual Gain Control: Yes
- Bright Light Cut-Off: Yes
- Automatic Shut-Off System: Yes
- Battery Type: One CR123A (3V) or AA (1.5 V)
- Battery Life (Operating): Up to 60 hours (3 V) at 20°C; up to 30 hours (1.5 V) at 20°C
- Exit Pupil Diameter: 40 mm
- Operating Temperature Range: -40°C to +50°C (-40°F to +122°F)
- Storage Temperature Range: -50°C to +50°C (-58°F to +122°F)
- Weight: 1.04 kg (2.3 lbs)
- Overall Dimensions: 189 × 104 × 90 mm (7.4 × 4.1 × 3.5 in)
Package Includes: Quick-Release Mount, Battery Adapter, CR123A Battery, Light Suppressor, Light Suppressor for Day Scope, Remote Control, User Manual, Carrying Case
