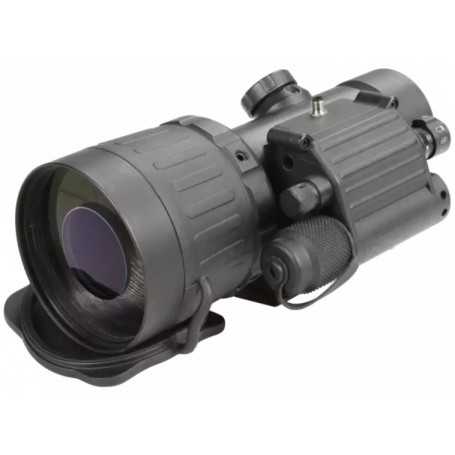

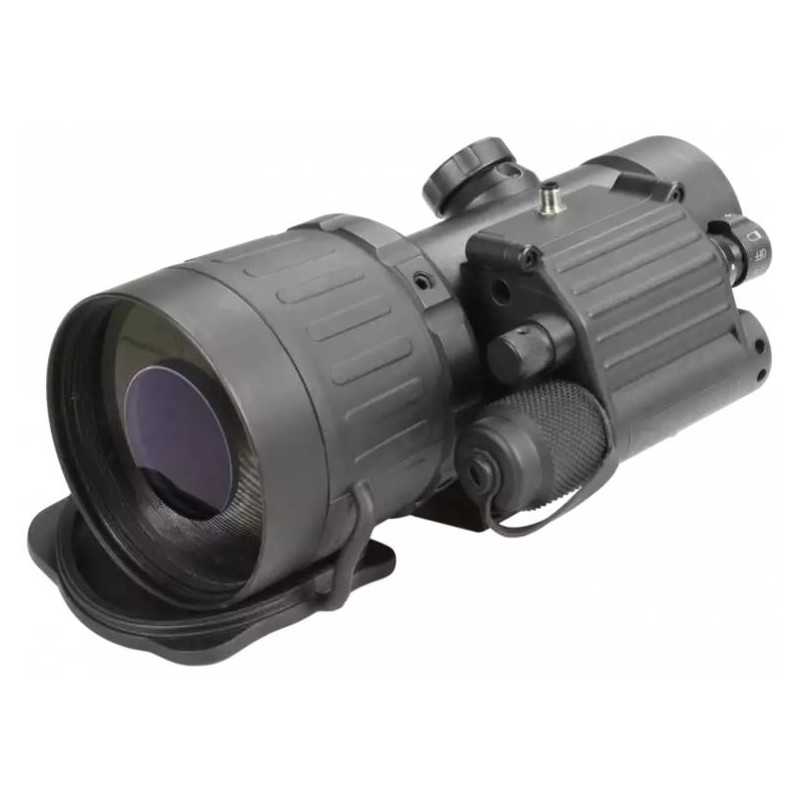

AGM Comanche-40 3APW - Night Vision Clip-On System

Discover the AGM Comanche-40 3APW Night Vision Clip-On System, the ultimate tool for your nighttime adventures. Equipped with a Gen 3 Auto-Gated White Phosphor Image Intensifier Tube, it offers exceptional clarity and precision in low-light settings. Featuring a 1x magnification and a robust 80mm F/1.44 lens, enjoy a 12° field of view. Perfect for enhancing your outdoor experiences, this high-performance device ensures you never miss a moment in the dark. Part number 16CO4123474111. Elevate your night vision capabilities with the AGM Comanche-40 3APW.

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

AGM Comanche-40 Night Vision Clip-On System - Advanced Gen 3 Technology

The AGM Comanche-40 Night Vision Clip-On System revolutionizes nighttime shooting with cutting-edge technology. Designed for mid-range applications, this system offers outstanding clarity, reliability, and versatility, all at an unbeatable price. Easily transform your existing day scope into a powerful Night Vision Device without the need for re-zeroing.

Mount the Comanche-40 to any standard Weaver or Picatinny rail in front of your day scope to unlock enhanced night vision capabilities. It is optimized for use with day scopes up to 12x magnification, featuring a quick-release mount and wireless remote control for seamless operation. This system is crafted to provide superior target acquisition and aiming precision, even in the most challenging conditions.

  • Effortless conversion of daytime optics to night vision devices
  • Manual gain control for precise adjustments
  • Mounts on any day scope without needing re-zeroing
  • Powered by a single Alkaline 1.5 V AA or 3 V CR123A Lithium battery
  • Bright-light cut-off system for eye protection
  • Quick-release mount for rapid attachment and detachment
  • Backed by a limited two-year warranty

Specifications

Image Intensifier Tube: Gen 3 Auto-Gated "White Phosphor 3APW"

Resolution: 64-72 lp/mm

Magnification: 1x

Lens System: 80 mm; F/1.44

Field of View (FOV): 12°

Focus Range: 10 m to Infinity

Controls: Direct

LED Indicators: Low battery; Excessive light conditions

Infrared Illuminator: Detachable Long Range IR Illuminator (not included)

Manual Gain Control: Yes

Bright Light Cut-Off: Yes

Automatic Shut-Off System: Yes

Battery Type: One CR123A (3V) or AA (1.5 V)

Battery Life (Operating): Up to 60 hours (3 V) at 20°C; up to 30 hours (1.5 V) at 20°C

Exit Pupil Diameter: 40 mm

Operating Temperature Range: -40°C to +50°C (-40°F to +122°F)

Storage Temperature Range: -50°C to +50°C (-58°F to +122°F)

Weight: 1.04 kg (2.3 lbs)

Dimensions: 189 × 104 × 90 mm (7.4 × 4.1 × 3.5 in)

Package Includes: Quick-Release Mount, Battery Adapter, CR123A Battery, Light Suppressor, Light Suppressor for Day Scope, Remote Control, User Manual, Carrying Case
