AGM Comanche-40 3AW1 - Night Vision Clip-On System
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description

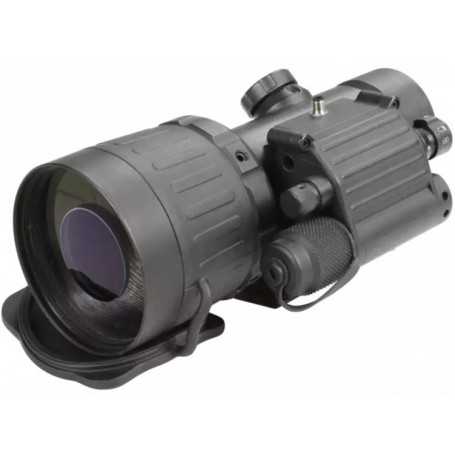

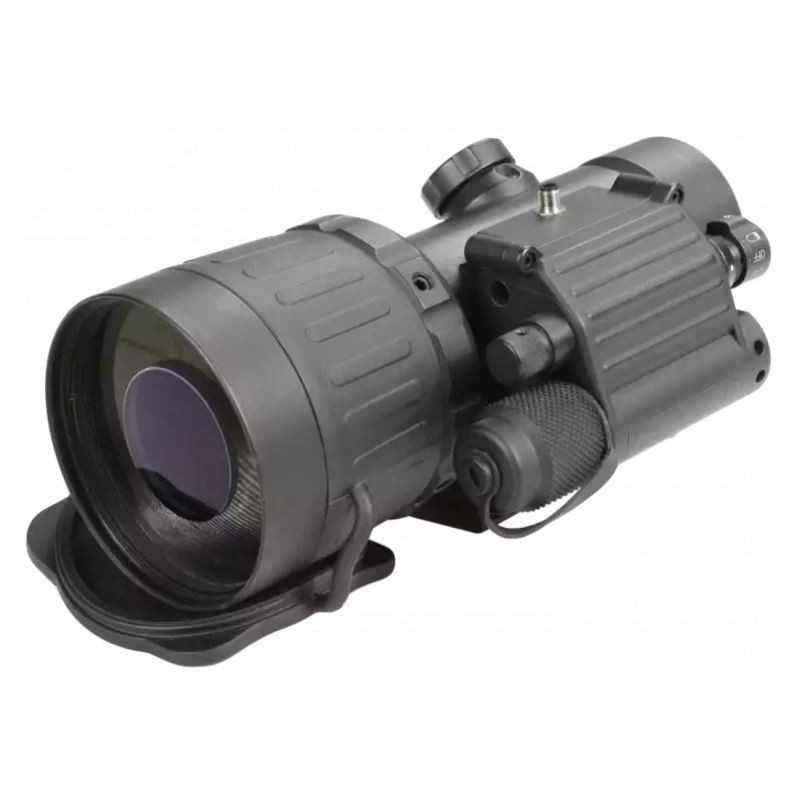

The Comanche 40 Night Vision Clip-On (NVCO) system uses the latest advances in night vision clip-on technology. Designed for mid-range nighttime shooting, the Comanche 40 delivers exceptional clarity, reliability, and versatility providing the most significant functionality and features at the lowest possible price. The Comanche 40 is mounted to a standard Weaver or Picatinny rail in front of an existing day scope; transforming it into a Night Vision Device with no re-zeroing required. This NVCO can be used with day scopes of up to 12x magnification for optimal performance and is equipped with a quick release mount and wireless remote control. It provides unmatched target acquisition and enhanced aiming capabilities, making it extremely practical and effective during the most challenging missions.
- Simple, quick conversion of daytime scopes to NVDs
- Manual gain control
- Mounts in front of any daytime scope, no re-zeroing required
- Powered by a single Alkaline 1.5 V AA or 3 V CR123A Lithium battery
- Bright-light cut-off system
- Quick-release mount
- Limited two-year warranty
SPECIFICATIONS
Image Intensifier Tube Gen 3 Auto-Gated "White Phosphor Level 1"
Resolution 64-72 lp/mm
Magnification 1x
Lens System 80 mm; F/1.44
FOV 12°
Focus Range 10 m to Infinity
Controls Direct
Led Indicators Low battery; Excessive light conditions
Infrared Illuminator Detachable Long Range IR Illuminator (not included)
Manual Gain Control Yes
Bright Light Cut-Off Yes
Automatic Shut-Off System Yes
Battery Type One CR123A (3V) or AA (1.5 V)
Battery Life (Operating) Up to 60 hours (3 V) at 20°C; up to 30 hours (1. 5 V) at 20°C
Exit Pupil Diameter 40 mm
Operating Temperature Range -40°C to +50°C (-40°F to +122°F)
Storage Temperature Range -50°C to +50°C (-58°F to +122°F)
Weight 1.04 kg (2.3 lbs)
Overall Dimensions 189 × 104 × 90 mm (7.4 × 4.1 × 3.5 in)
Package Includes Quick-Release Mount, Battery Adapter , CR123A Battery, Light Suppressor, Light Suppressor for Day Scope, Remote Control, User Manual, Carrying Case
