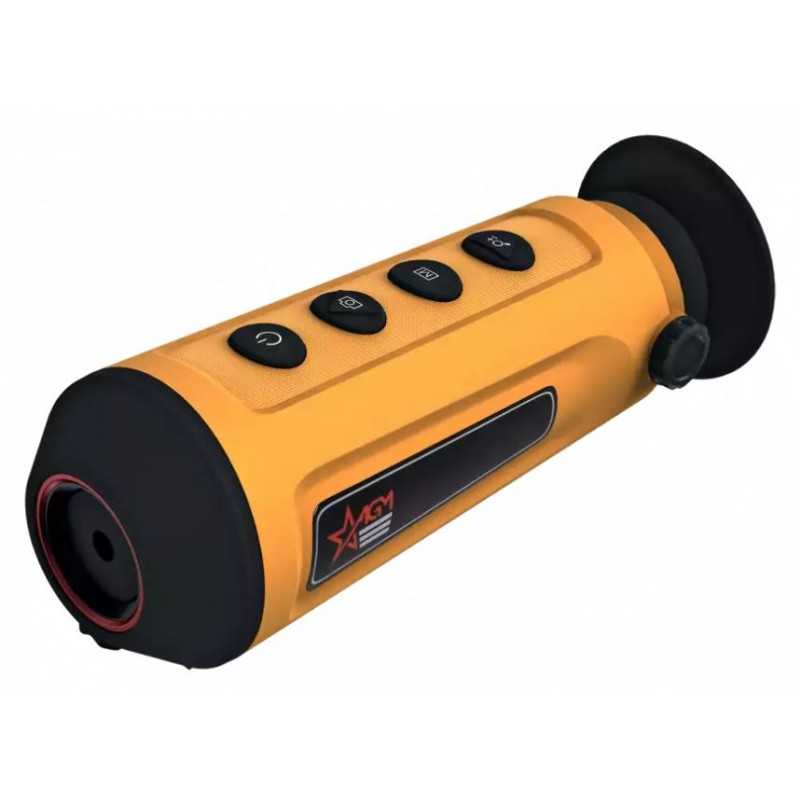

AGM ASP-Micro TM160Y Thermal Monocular

Introducing the AGM ASP-MICRO TM160Y - a high-performance thermal monocular designed to provide exceptional imaging capabilities for outdoor enthusiasts, professional hunters, and security personnel. This cutting-edge device utilizes Vanadium Oxide Uncooled Focal Plane Arrays to deliver a superb 160x120 resolution and a fast 25 Hz refresh rate. With a wide field of view (15.61° x 11.74°), you can easily detect and observe objects in various conditions, even in complete darkness. The AGM ASP-MICRO TM160Y is a versatile and reliable thermal imaging solution, perfect for a wide range of applications. Don't miss out on this compact yet powerful thermal monocular, with Unit Part 3093251001AM16.

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Asp-Micro TM160Y handheld Industrial/Marine thermal monocular is equipped with a 160×120 infrared detector and a 720×540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, WiFi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. Thanks to this, Asp-Micro allows you to observe boats, navigational objects, navigate at night, detect people overboard, as well as observe sea animals and birds.

The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, antismuggling, surveillance of industrial facilities, boating, travel, fishing and hunting, etc.

  • 160×120 resolution, high sensitivity detector
  • Adaptive AGC, DDE, 3D DNR
  • 720×540 resolution LCOS display
  • Built-in rechargeable Lithium battery
  • Up to 10 hours continuous running (with Wi-Fi hotspot function off)
  • Wi-Fi hotspot
  • Type-C interface
  • Limited 3-year warranty



FUNCTIONS

Distance Measurement:

The device realizes distance measurement function after marking the top and bottom of target, and input the target height.

Hot Spot Mark:

The device detects and marks the hot spot of highest temperature.

Mode Switch:

Device supports pallet switch and distance measurement.

Storage:

Built-in memory module supports video recording/snapshot capturing.

Digital Zoom:

Device supports 1×, 2×, and 4× digital zoom.

Wi-Fi Hotspot:

Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.



PACKAGE INCLUDES

USB Cable

Wrist Strap

Packing Box

Operators Manual

Lens Tissue



SPECIFICATIONS

Palettes Black Hot, White Hot, Red Hot, Fusion

Working Temperature -20°C to 55°C (-4°F to 131°F)

Interface USB Type-C

Multi Language menu Yes

Drop Test Height 1.5 m (4.9 feet)

Detector type Vanadium Oxide Uncooled Focal Plane Arrays

Response Waveband 8μm to 14μm

FFC (Flat Field Correction) Auto, Manual, External Correction

Highest Temperature Spot Tracking Yes

Standby Mode Yes

Refresh rate 50 Hz

Aperture F1.1

Resolution 160×120

Detection Range (Humans: 1.8×0.5m) - 250m/yd

NETD Less than 35 mk (@25°C), F#=1.1

Lens (focal length) 6.2 mm

Power 5 VDC/2 A, 1.5 W

Field of view (H × X) 15.61° × 11.74° (H × V)

Digital zoom 2×, 4×

Monitor 720×540, 0.2 inch, LCOS

Storage Built-in memory module (8 GB)

Record Video On-board video recording

Capture Snapshot Yes

Battery Type Built-in rechargeable Lithium battery

Wi-Fi Yes

CVBS Output Yes (via USB)

Battery Operating Time Up to 10 hours continuous running (with Wi-Fi hotspot function off)

Battery Capacity Display Yes

Weight 270 g (0.6 lb)

Overall Dimensions 161 × 61 × 57 mm (6.3 × 2.4 × 2.2 in)

Protection Level IP67

Data sheet
