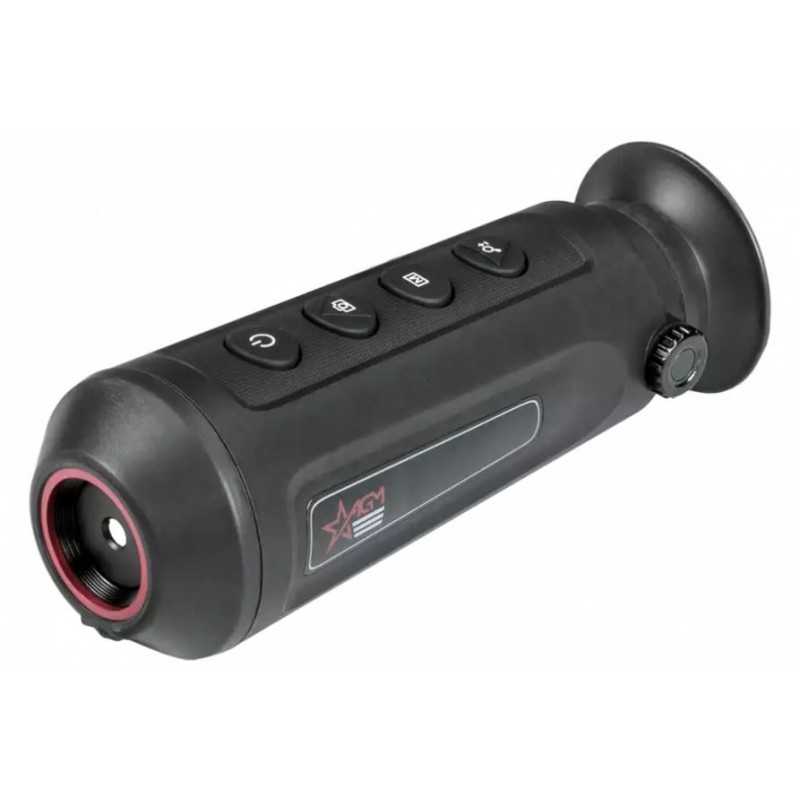

AGM ASP-Micro TM160 Thermal Monocular
Introducing the AGM ASP-MICRO TM160 Thermal Monocular, designed for unmatched versatility and convenience in both day and nighttime use. Equipped with a high-performance Vanadium Oxide Uncooled Focal Plane Array detector, this monocular boasts a 160x120 resolution and a 25Hz refresh rate for crisp, clear thermal imaging. The wide field of view (15.61° × 11.74°) allows you to effortlessly scan large areas, making it perfect for hunting, hiking, or wildlife observation. With its compact design and advanced technology, the AGM TM160 delivers superior thermal imaging for any outdoor adventure. Unit Part 3093251001AM10
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The Asp-Micro handheld observational thermal monocular is equipped with a 160×120 infrared detector and a 720×540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, antismuggling, criminal seizing, hiking, travel, and hunting, etc.
- 160×120 resolution, high sensitivity detector
- Adaptive AGC, DDE, 3D DNR
- 720×540 resolution LCOS display
- Built-in rechargeable Lithium battery
- More than 10 hours continuous running (with Wi-Fi hotspot function off)
- Wi-Fi hotspot
- Type-C interface
- Limited 3-year warranty
FUNCTIONS
Distance Measurement:
The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.
Mode Switch:
Device supports pallet switch and distance measurement.
Storage:
Built-in memory module supports video recording/snapshot capturing.
Digital Zoom:
Device supports 1×, 2×, and 4× digital zoom.
Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
PACKAGE INCLUDES
USB Cable
Wrist Strap
Packing Box
Operators Manual
Lens Tissue
SPECIFICATIONS
Detector type Vanadium Oxide Uncooled Focal Plane Arrays
Response Waveband 8μm to 14μm
FFC (Flat Field Correction) Auto, Manual, External Correction
Highest Temperature Spot Tracking Yes
Standby Mode Yes
Refresh rate Sensor 25 Hz / OLED 50 Hz
Aperture F1.1
Resolution 160×120
Recognition (Vehicles: 1.4×4.0m) - 153m/yd (Humans: 1.8×0.5m) - 50m/yd
Detection Range (Vehicles: 1.4×4.0m) - 611m/yd (Humans: 1.8×0.5m) - 250m/yd
Identification Range (Vehicles: 1.4×4.0m) - 76m/yd (Humans: 1.8×0.5m) - 25m/yd
NETD less than 35 mk (@25°C), F#=1.1
Lens (focal length) 6.2 mm
Field of view (H × X) 15.61° × 11.74° (H × V)
Digital zoom 2×, 4×, 8×
Display 720×540, 0.2 inch, LCOS
Storage Built-in memory module (8 GB)
Record VideoOn-board video recording
Capture Snapshot Yes
Battery Type Built-in rechargeable Lithium battery
Wi-Fi Yes
Battery Operating Time Up to 10 hours
Battery Capacity Display Yes
Power supply 5 VDC/2 A, 1.5 W
Operating Temperature Range -20°C to 55°C (-4°F to 131°F)
Weight 270 g (0.6 lb)
Overall Dimensions 161 × 61 × 57 mm (6.3 × 2.4 × 2.2 in)
Protection Level IP67
