AGM Protector Pro TM50-384 Thermal Monocular

Discover the AGM Protector Pro TM50-384 Thermal Monocular, perfect for enhanced visibility in any environment. Featuring a 17µm uncooled detector, it delivers crisp 384x288 resolution images at a smooth 50 Hz refresh rate. With a field of view of 5.3° × 4.0°, it ensures comprehensive coverage, making it ideal for professionals and outdoor enthusiasts alike. Reliable and versatile, the AGM Protector Pro TM50-384 (Part No: 3142451006PP51) is your go-to thermal imaging tool for superior detection and clarity.
355362.48 ₽
Tax included

288912.58 ₽ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

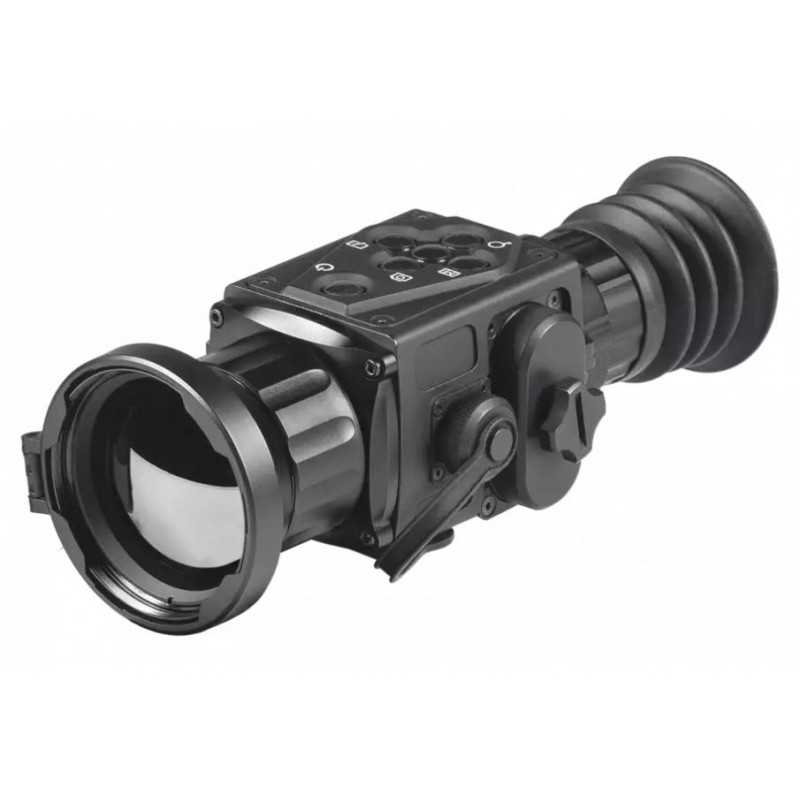

AGM Protector Pro TM50-384 Advanced Thermal Imaging Monocular

The AGM Protector Pro TM50-384 is a state-of-the-art thermal imaging monocular designed for superior observation capabilities. Constructed with high-grade aluminum and magnesium alloy, this robust yet lightweight device is perfect for outdoor enthusiasts and professionals who require reliable performance in harsh weather conditions. Its waterproof design ensures functionality even in the most challenging environments.

This monocular is easily mountable on a tripod, allowing for convenient and hands-free use. The user-friendly interface features ergonomic buttons for simple operation, and the unit offers ten different image palettes to adapt to various environmental conditions.

The device can be powered by two CR123A 3V Lithium batteries or two RCR123 rechargeable batteries, with a voltage range of 3.0 V to 3.7V. For extended operation, an external battery pack (5V) can be connected via a Type-C port. Additionally, with 16 GB of internal storage, you can capture videos and images directly on the device. An onboard Wi-Fi module enables live video streaming and video/image recording through a mobile application.

  • High-Sensitivity Detector for clear thermal imaging.
  • Lightweight and Compact Design for easy portability.
  • Dual Eye Viewing System for comfortable long-term use.
  • Easy-to-Operate Control Panel with ergonomic buttons.
  • High Resolution Display for crisp image quality.
  • Digital Zoom: 1x, 2x, 4x, and 8x for detailed observation.
  • Picture-in-Picture Mode for enhanced viewing.
  • Video Recording and Snapshot Capturing capabilities.
  • Built-in 16 GB EMMC Memory Module for ample storage.
  • Wi-Fi Data Transmission for seamless connectivity.
  • Stadiametric Rangefinder for distance measurement.
  • Powered by Two Standard CR123A Batteries for up to 4.5 hours of continuous operation.
  • External Power Supply Capability for extended use.
  • Tripod Mountable for hands-free operation.
  • Limited 3-Year Warranty for peace of mind.

Specifications

Image Palettes: Black Hot, White Hot, Red Hot, Fusion

Drop Test Height: 1.5m (4.9 feet)

Distance Measurement: Yes (Stadiametric Rangefinder)

Scene Mode: Jungle, Recognition

Picture In Picture Mode (PIP): Yes (2× Zoom)

Hotspot: Yes

Video Recording: Yes

Defective Pixels Correction (DPC): Yes

Uniformity Correction: Auto, Manual, External Correction

Detector Type: 17μm, Uncooled, 50 Hz

Standby Mode: Yes

Resolution: 384 × 288

Detection Range: 2500 m/yd

Snapshot: Yes

Lens System: 50 mm; F/1.0

Optical Magnification: 4× - 32×

Field of View (H × X): 5.3° × 4.0°

Digital Zoom: 1×, 2×, 4×, 8×

Diopter Adjustment Range: -5 to +5 dpt

Focusing Range: 10 m to infinity

Display: 0.39-inch, OLED, 1024×768, 50 Hz

Storage: Built-in EMMC (16 GB)

Battery Type: Two CR123 (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries

CVBS Output: Yes (via USB)

Battery Life (Operating): Up to 4.5 hr

External Power Supply: 5 VDC/2 A, USB Type-C interface

Operating Temperature Range: -20°C to +55°C (-4°F to +131°F)

Degree of Protection: IP67

Weight: 0.7 kg (1.5 lb)

Overall Dimensions: Thermal Imaging Bi-ocular, USB Cable, Lens Cloth, Manual
