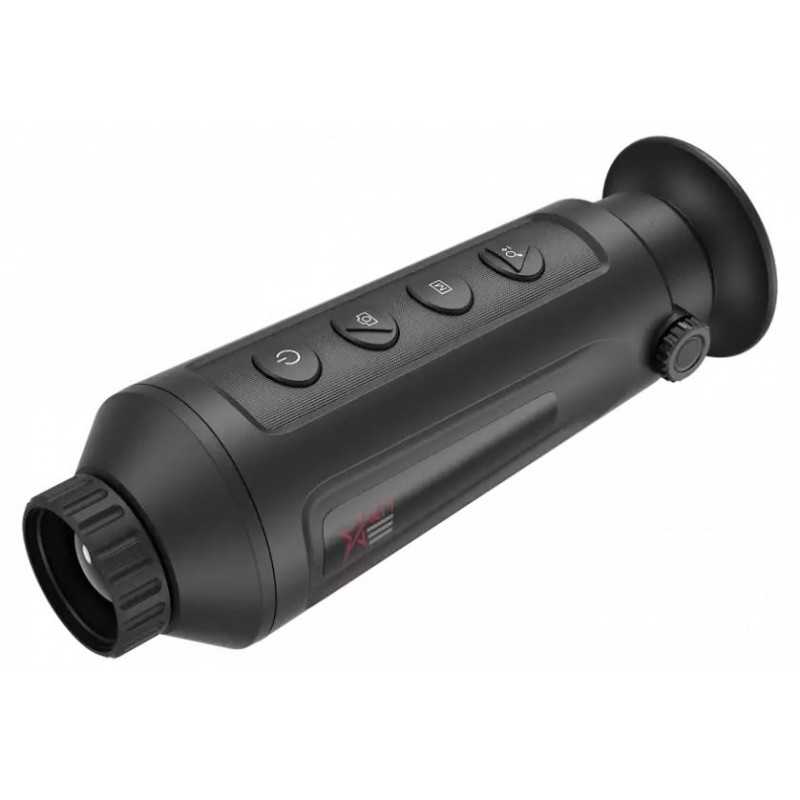

AGM Taipan TM25-384 Thermal Monocular

The Taipan handheld observational thermal monocular is equipped with a 384×288 infrared detector and a 1280×960 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.

• 384×288 resolution, 12 μm, high sensitivity detector
• Adaptive AGC, DDE, 3D DNR
• 1280 × 960 resolution 0.4-inch LCOS display
• Built-in rechargeable Lithium battery
• More than 7.5 hours continuous running (with Wi-Fi hotspot function off)
• Wi-Fi hotspot
• Type-C interface
• Limited 3-year warranty

FUNCTIONS:

Distance Measurement:

The device realizes distance measurement function after marking the top and bottom of target, and input the target height.

Hot Spot Mark:

The device detects and marks the hot spot of highest temperature.

Mode Switch:

Device supports pallet switch and distance measurement.

Storage:

Built-in memory module supports video recording/snapshot capturing.

Digital Zoom:

Device supports 1×, 2×, 4×, and 8× digital zoom.

Wi-Fi Hotspot:

Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.

SPECIFICATIONS

Interface USB Type-C

Pixel Interval 12 μm

Multi Language menu Yes

Drop Test Height 1.5 m (4.9 feet)

Detector type Vanadium Oxide Uncooled Focal Plane Arrays

Response Waveband 8μm to 14μm

FFC (Flat Field Correction) Auto, Manual, External Correction

Highest Temperature Spot Tracking Yes

Standby Mode Yes

Refresh rate 50 Hz

Aperture F1.0

Resolution 384×288

Detection Range 1180m/yd

NETD Less than 35 mk (@25°C), F#=1.0

Lens (focal length) 25 mm

Power 5 VDC/2 A, 1.5 W

Field of view (H × X) 10.5° × 7.9° (H × V)

Digital zoom 2×, 4×, 8×

Monitor 1280×960, 0.4 inch, LCOS

Imaging palettes Black Hot, White Hot, Red Hot, Fusion

Storage Built-in memory module (8 GB)

Record Video On-board video recording

Capture Snapshot Yes

Battery Type Built-in rechargeable Lithium battery

Wi-Fi Yes

CVBS Output Yes (via USB)

Battery Operating Time -20°C to 55°C (-4°F to 131°F)

Battery Capacity Display Yes

Weight 300 g (0.69 lb)

Working Temperature/ Humidity -20°C to 55°C (-4°F to 131°F)

Overall Dimensions 171 × 61 × 57 mm (6.73 × 2.4 × 2.2 in)

Protection Level IP67
