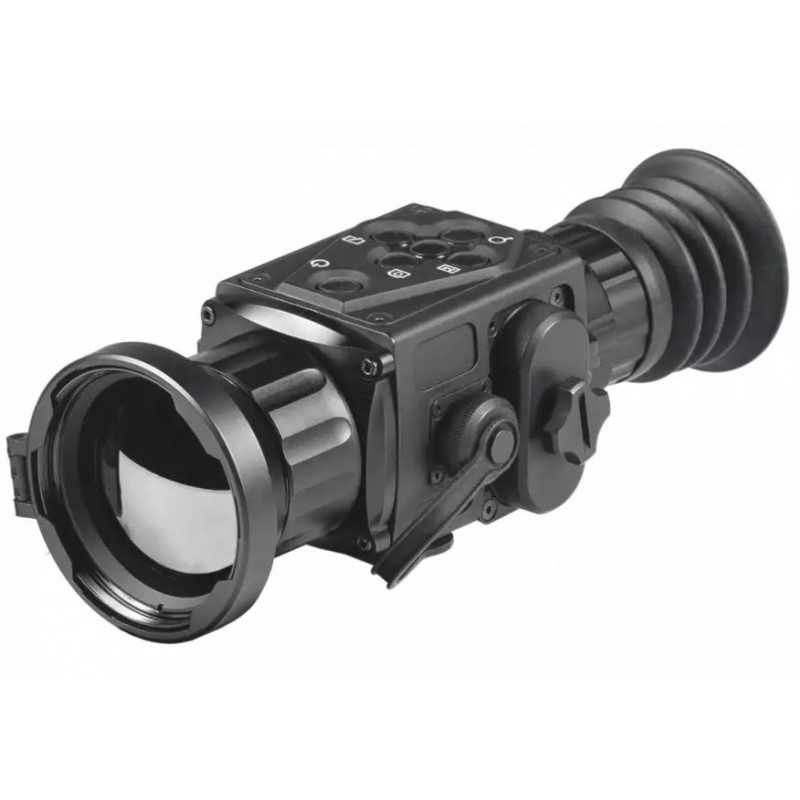

AGM Protector Pro TM50-640 Thermal Monocular
5050.4 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The AGM Protector PRO is the latest and most technologically-advanced thermal imaging device for observation currently offered by AGM. This monoocular is made of high-grade aluminum and magnesium alloy, making the unit both durable and lightweight. Due to its waterproof capability the device performs well even in severe weather conditions and challenging environments. The unit can be easily mounted on a tripod which grants the operator convenient/hands free use of thermal monocular.
The Protector’s user-friendly interface, with comfortable and ergonomic buttons makes using the system incredibly simple. The thermal imaging unit offers ten different image palettes that can be easily adapted depending on different environmental conditions.
This high-tech monocular can take either two CR123A 3V Lithium batteries or two RCR123 rechargeable batteries, with voltage ranging from 3.0 V to 3.7V. In addition, the external battery pack (5V) connected via Type-C port provides additional operating time. The device is equipped with 16 GB storage for on-board video recording and image capturing. Onboard Wi-Fi module is also available for live video streaming and video/ images recording via mobile application.
- High-sensitivity detector
- Lightweight and compact design
- Dual eye viewing system for comfortable, extended viewing sessions
- Easy to operate control panel
- High resolution display
- 1x, 2x,4x and 8x digital zoom
- Picture-in-Picture mode
- Video recording and snapshot capturing
- Built-in 16 GB EMMC memory module
- Wi-Fi data transmission
- Stadiametric rangefinder
- Powered by two standard CR123A batteries
- Up to 4.5 hours continuous working
- External power supply capability
- Tripod mountable
- Limited 3-Year Warranty
SPECIFICATIONS
Palettes Black Hot, White Hot, Red Hot, Fusion
Drop Test Height 1.5m (4.9 feet)
Distance Measurement Yes (Stadiametric Rangefinder)
Scene Mode Jungle, Recognition
Picture In Picture Mode (PIP) Yes (2× Zoom)
Hotspot Yes
Video Recording Yes
Defective Pixels Correction (DPC) Yes
Uniformity Correction Auto, Manual, External Correction
Detector type 17μm, Uncooled, 50 Hz
Standby Mode Yes
Resolution 640 × 512
Detection Range 2500 m/yd
Snapshot Yes
Lens system 50 mm; F/1.0
Optical magnification 2.5× - 20×
Field of view (H × X) 8.8° × 7.0°
Digital zoom 1×, 2×, 4×, 8×
Diopter adjustment range -5 to +5 dpt
Focusing range 10 m to infinity
Display 0.39-inch, OLED, 1024×768, 50 Hz
Storage Built-in EMMC (16 GB)
Battery Type Two CR123 (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
CVBS Output Yes (via USB)
Battery Life (Operating) Up to 4.5 hr
External power supply 5 VDC/2 A, USB Type-C interface
Operating Temperature Range -20°C to +55°C (-4°F to +131°F)
Degree of Protection IP67
Weight 0.7 kg ( 1.5 lb)
Overall Dimensions Thermal Imaging Bi-ocular, USB Cable, Lens Cloth, Manual
Data sheet
