AGM StingIR 640 Thermal Monocular
4000 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description

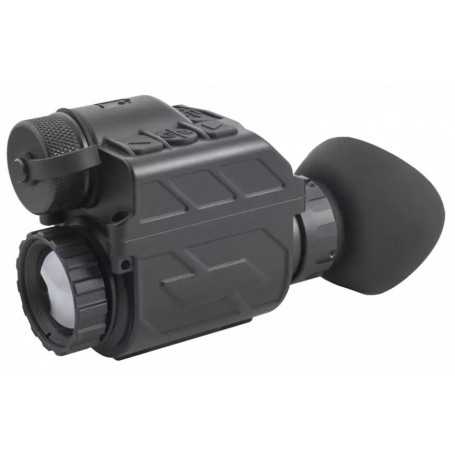

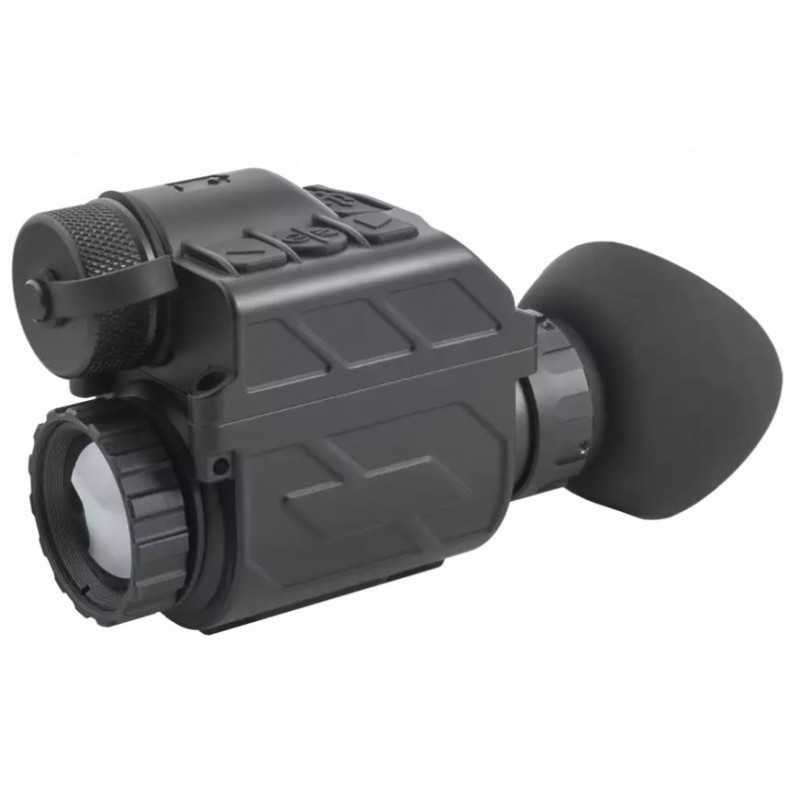

The AGM StingIR miniature handheld observational thermal monocular is equipped with 384×288 or 640×480 12μm high-sensitivity infrared detector and high-resolution OLED display. It supports functions of observation, digital compass, inclinometer, and so on. The highsensitivity built-in thermal detector provides you with clear view even in total darkness. The AGM StingIR is a full-featured unit, weighing less than 7 ounces/200 grams. The monocular can be used as a handheld device, or mounted on the head harness or helmets for hands-free operations. The monocular is suitable for security enforcement, outdoor hunting, wilderness exploration, search and rescue and other fields.
- 12μm high-sensitivity detector
- 12μm high-sensitivity detector
- Head- or helmet-mountable for hands-free usage
- Compact, sturdy design
- High-resolution OLED display
- Multiple thermal image palettes
- Device supports up to 8× digital zoom
- Powered by one CR123A/RCR123 or 18650 Lithium battery
- Powered by one CR123A/RCR123 or 18650 Lithium battery
- Up to 5 hours continuous running
- Digital compass and inclinometer
- Type-C interface
- Limited 3-year warranty
PACKAGE INCLUDES
Monocular
Helmet adapter bracket
18650 battery cap
USB Type-C cable
Operation manual
Hard case
SPECIFICATIONS
Digital Compass Yes
Palettes WhiteHot, BlackHot, OrangeHot, Rainbow
Exit Pupil Diameter 12 mm
Detector type 12 μm Uncooled VOx Microbolometer
FFC (Flat Field Correction)
Refresh rate 50 Hz
Resolution 640×480
Detection Range 1200 m
Field of view (H × X) 16.3° × 12.3° (H × V)
Digital zoom 1×, 2×, 4×, 6×, 8×
Diopter adjustment range -5 to +2 dpt
Monitor 1024×768 OLED
Video output PAL video output via USB port
Battery Type One CR123A(3V) or RCR123(3.7V) or 18650(4.2V)
Battery Operating Time CR123A - up to 2.5 hours / RCR123 - up to 1.5 hours / 18650 - up to 4.5 hours
External power supply 5 VDC/2 A, 1.5 W
Operating Temperature Range -20°C to 50°C (-4°F to 122°F)
Weight 220 g (7.8 oz)
Overall Dimensions 140 × 70 × 50 mm (5.5 × 2.7 × 2.0 in)
Data sheet
