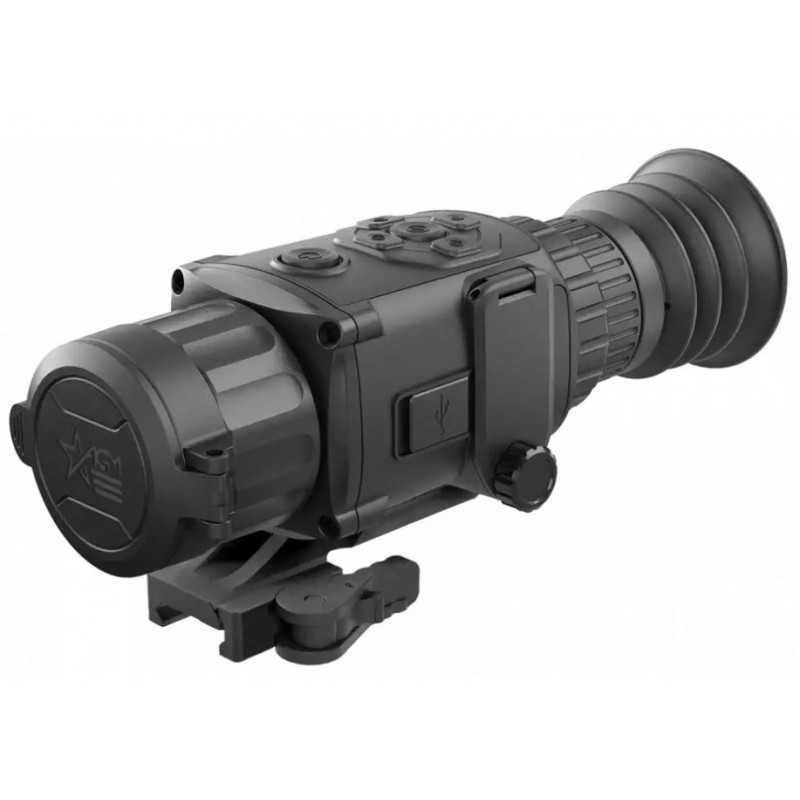

AGM Rattler TS19-256 - Thermal Weapon Sight
Introducing the AGM Rattler TS19-256 Thermal Weapon Sight, perfect for enhancing your targeting capabilities in any environment. This state-of-the-art sight features a 12µm uncooled detector with a 25 Hz refresh rate, ensuring a smooth, clear image. Its high-resolution display offers 256 x 192 pixels, providing a sharp and detailed view of your target. The generous field of view measures 9.24° x 6.94°, allowing you to easily survey your surroundings. Designed for durability and reliability, the AGM Rattler TS19-256 is an indispensable accessory for any serious marksman. (Unit Part: 3143855003RA91)
885 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The AGM Rattler TS19-256 and Rattler TS25-256 are the compact thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Two objective lens options allow the customer to choose perfect unit for short or medium range missions.
Thermal image riflescope has 256×192, 12μm thermal detector and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The device is used as a thermal rifle scope or handheld monocular. The scope is mainly applied to scenarios such as patrolling, hunting, etc.
Powered with two CR123 batteries the AGM Rattler TS-256 gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.
- 256×192 thermal resolution, 12μm, high sensitivity detector
- Image processing technology: Adaptive AGC, DDE, 3D DNR
- 1024×768 resolution 0.39-inch OLED display
- 8x digital zoom
- Video recording and snapshot, built-in EMMC (16 GB)
- Supports distance measurement
- Adjustable color palettes
- Wi-Fi data transmission
- Waterproof, shockproof
- Up to 4.5 hours continuous working
- External power supply capability
- Limited 3-year warranty
SPECIFICATIONS
Battery life (operating at 20°С) Up to 4.5 hr
Palettes Black Hot, White Hot, Red Hot, Fusion
Reticle 5 types, 3 colors, on/off
Drop Test Height 1.5m (4.9 feet)
Boresight Adjustment Digital Controlled
Boresight Increment 0.22 mil / 0.77 MOA
Distance Measurement Yes (Stadiametric Rangefinder)
Scene Mode Jungle, Recognition
Picture In Picture Mode (PIP) Yes
Hotspot Yes
Video Recording Yes
Defective Pixels Correction (DPC) Yes
Uniformity Correction Auto, Manual, External Correction
Detector type 12μm, Uncooled, 25 Hz
Standby Mode Yes
Resolution 256 × 192
Detection Range 950m/yd
Snapshot Yes
Lens system 19 mm; F/1.0
Optical magnification 2.5× - 20×
Field of view (H × X) 9.24° × 6.94°
Digital zoom 1×, 2×, 4×, 8×
Eye relief 45 mm
Display 0.39-inch, OLED, 1024×768, 50 Hz
Storage Built-in EMMC (16 GB)
Battery Type Two CR123 (3V) Lithium
CVBS Output Yes (via USB)
External power supply 5 VDC/2 A, USB Type-C interface
Operating Temperature Range -20°C to +55°C (-4°F to +131°F)
Degree of Protection IP67
Weight 520 g ( 1.15 lb)
Overall Dimensions 187 × 63 × 80 mm (7.4 × 2.5 × 3.1 in)
Package Includes Thermal Imaging Rifle Scope, Mount, USB Cable, Lens Cloth, Manual
Data sheet
