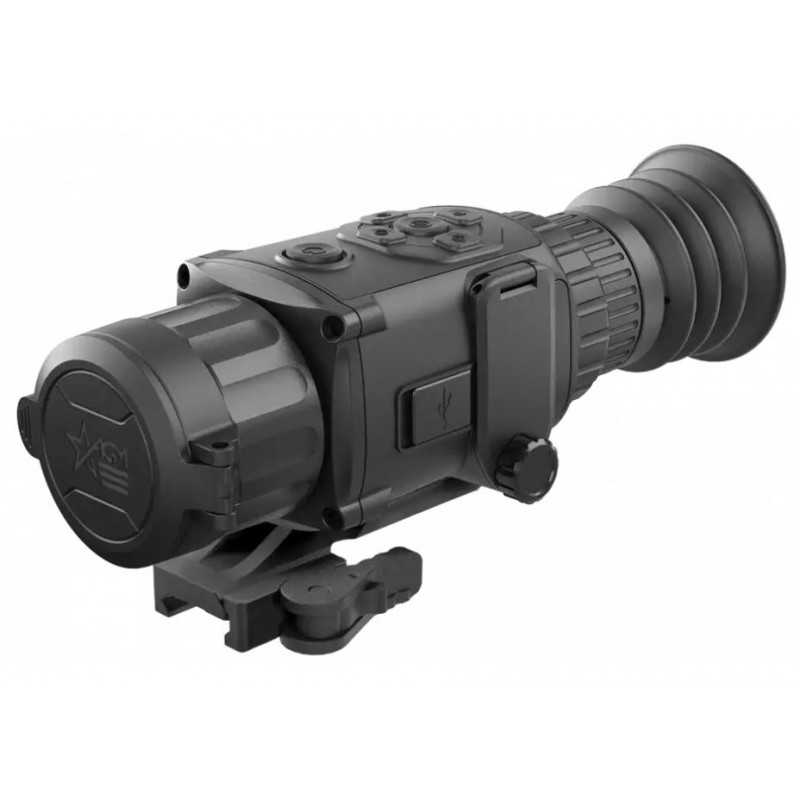

AGM Rattler TS25-256 - Thermal Weapon Sight

The AGM Rattler TS25-256 are the compact thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Two objective lens options allow the customer to choose perfect unit for short or medium range missions.

Thermal image riflescope has 256×192, 12μm thermal detector and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The device is used as a thermal rifle scope or handheld monocular. The scope is mainly applied to scenarios such as patrolling, hunting, etc.

Powered with two CR123 batteries the AGM Rattler TS-256 gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.

• 256×192 thermal resolution, 12μm, high sensitivity detector
• Image processing technology: Adaptive AGC, DDE, 3D DNR
• 1024×768 resolution 0.39-inch OLED display
• 8x digital zoom
• Video recording and snapshot, built-in EMMC (16 GB)
• Supports distance measurement
• Adjustable color palettes
• Wi-Fi data transmission
• Waterproof, shockproof
• Up to 4.5 hours continuous working
• External power supply capability
• Limited 3-year warranty

SPECIFICATIONS

Battery life (operating at 20°С) Up to 4.5 hr

Palettes Black Hot, White Hot, Red Hot, Fusion

Reticle 5 types, 3 colors, on/off

Drop Test Height 1.5m (4.9 feet)

Boresight Adjustment Digital Controlled

Boresight Increment 0.17 mil / 0.58 MOA

Distance Measurement Yes (Stadiametric Rangefinder)

Scene Mode Jungle, Recognition

Picture In Picture Mode (PIP) Yes

Hotspot Yes

Video Recording Yes

Defective Pixels Correction (DPC) Yes

Uniformity Correction Auto, Manual, External Correction

Detector type 12μm, Uncooled, 25 Hz

Standby Mode Yes

Resolution 256 × 192

Detection Range 1250m/yd

Snapshot Yes

Lens system 19 mm; F/1.0

Optical magnification 2.5× - 20×

Field of view (H × X) 7.03° × 5.28°

Digital zoom 1×, 2×, 4×, 8×

Eye relief 45 mm

Display 0.39-inch, OLED, 1024×768, 50 Hz

Storage Built-in EMMC (16 GB)

Battery Type Two CR123 (3V) Lithium

CVBS Output Yes (via USB)

External power supply 5 VDC/2 A, USB Type-C interface

Operating Temperature Range -20°C to +55°C (-4°F to +131°F)

Degree of Protection IP67

Weight 568 g ( 1.16 lb)

Overall Dimensions 187 × 63 × 80 mm (7.4 × 2.5 × 3.1 in)

Package Includes Thermal Imaging Rifle Scope, Mount, USB Cable, Lens Cloth, Manual
