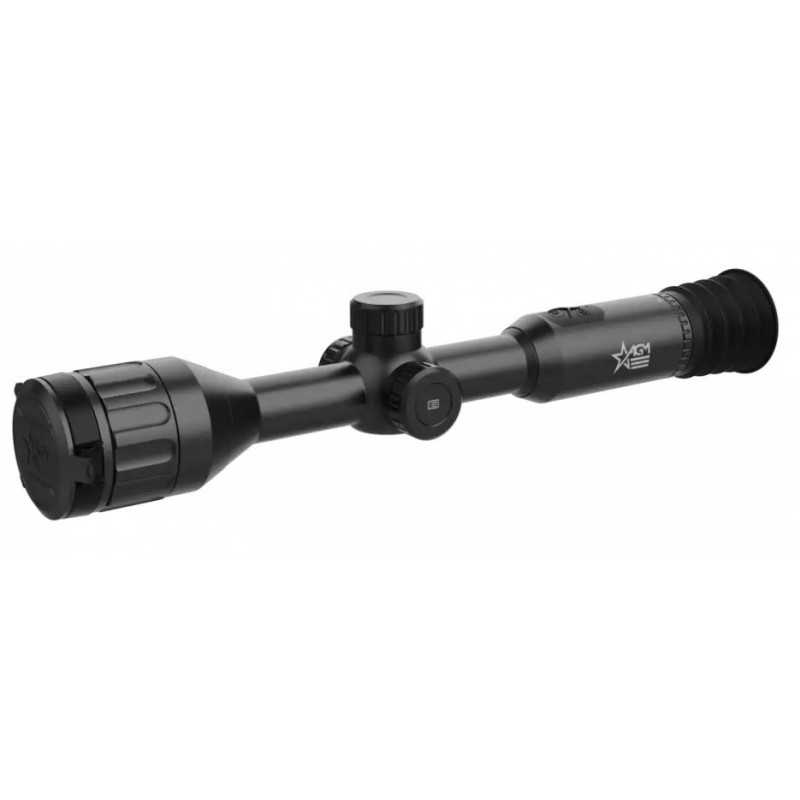

AGM Adder TS50-384 - Thermal Weapon Sight

AGM Adder is the thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Two objective lens options allow the customer to choose perfect unit for your needs where 35mm lens designed for medium range shooting, while the 50mm lens model will be great for long range missions.

Riflescope has 384×288 high-sensitivity thermal detector and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The scope is mainly applied to scenarios such as patrolling, and hunting, etc.

The scope is equipped with unique dual power system. Two builtin 18650 rechargeable batteries with one CR123A replaceable Lithium battery provide up to 15 hours of continuous operation. The device has fast 64GB EMMC storage for on-board video recording and image capturing. Shot Activated Recording (SAR) function allows you not to worry about having to start recording manually each time. Wi-Fi module for live video streaming and video/images recording via application are also available.

The Adder can be mounted to the weapon using standard scope mounts for 30mm tubes. The traditional-style 30mm tube meets the needs of professional hunters who value traditions and seek technological superiority, ensure an extreme detection range of up to 2600 meters.

• 384×288 thermal resolution
• 12μm high-sensitivity detector
• Fast 50 Hz imaging
• High-resolution OLED display
• 1x, 2x, 4x, 8x digital zoom
• On-board video and audio recording
• Shot Activated Recording (SAR)
• Wi-Fi data transmission
• Fast 64GB EMMC built-in storage
• Various reticle types and colors
• Adjustable color palettes
• Standby mode
• Waterproof & Shockproof
• Dual power system
• Up to 15 hours continuous working
• External power supply capability
• Limited 3-year warranty

SPECIFICATIONS

Palettes Black Hot, White Hot, Red Hot, Fusion

Reticle 5 types, 4 colors, on/off

Boresight Adjustment Digital Controlled

Boresight Increment 0.09 mil / 0.31 MOA

Distance Measurement Yes (Stadiametric)

Scene Mode Jungle, Recognition

Picture In Picture Mode (PIP) Yes

Video Recording Yes

Defective Pixels Correction (DPC) Yes

Uniformity Correction Auto, Manual, External Correction

Detector type 12μm, Uncooled, 50 Hz, < 35 mK (25°C, F# = 1.0)

Standby Mode Yes

Resolution 384 × 288

Detection Range 2600 m/yd

Snapshot Yes

Lens system 50 mm; F/1.0

Optical magnification 4× - 32×

Field of view (H × X) 5.4° × 4.0°

Digital zoom 1×, 2×, 4×, 8×

Diopter adjustment range -5 to +5 dpt

Eye relief ≥ 60 mm

Display 1024×768, 50 Hz, OLED

Battery Type Two 18650 Rechargeable Batteries (built-in) and one CR123 Battery

Wi-Fi Yes

CVBS Output Yes (via USB)

Battery Life (Operating) Up to 15 hr

Power supply 5 VDC/2 A, USB Type-C Supports QC3.0

Degree of Protection IP67

Weight 970 g ( 2.14 lb)

Overall Dimensions 420 × 78 × 82 mm (16.5 × 3.1 × 3.2 in)
