AGM Rattler TS25-384 - Thermal Weapon Sight
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

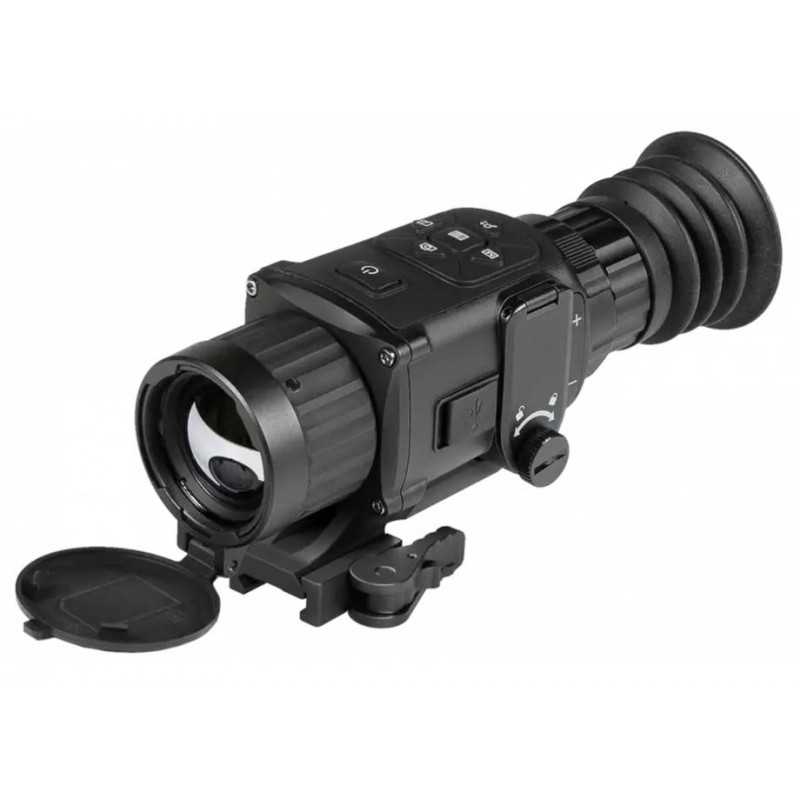

AGM Rattler TS25-384 - Thermal Weapon Sight

Introducing the AGM Rattler TS25-384, a state-of-the-art thermal weapon sight designed to enhance your shooting accuracy and efficiency. This high-performance sight features a 17µm uncooled detector with a rapid 50Hz refresh rate, ensuring a smooth and clear image on its OLED display. With an impressive 384x288 resolution, the Rattler TS25-384 offers a wide field of view (14.9° x 11.2°), making target acquisition faster and more accurate. The durable and reliable sight is perfect for various shooting applications and extreme conditions. Don't miss the chance to elevate your shooting experience with the AGM Rattler TS25-384 (part unit: 3092455004TH21).

2163.98 $
Tax included

1759.33 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The AGM Rattler TS25-384 and Rattler TS35-384 are the compact thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Two objective lens options allow the customer to choose perfect unit for your needs where 25 mm lens designed for short range shooting, while the 35 mm lens model will be great for medium range missions.

Thermal image riflescope has 384×288 thermal detector and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The device is used as a thermal rifle scope or handheld monocular. The scope is mainly applied to scenarios such as patrolling, and hunting, etc.

Powered with two CR123 batteries the AGM Rattler TS-384 gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.

  • 384 × 288 thermal resolution, high sensitivity detector
  • Image processing technology: Adaptive AGC, DDE, 3D DNR
  • 1024 × 768 resolution 0.39-inch OLED display
  • 8x digital zoom
  • Video recording and snapshot, built-in EMMC (16 GB)
  • Supports distance measurement
  • Adjustable color palettes
  • Wi-Fi data transmission
  • Waterproof, shockproof
  • Up to 4.5 hours continuous working
  • External power supply capability
  • Limited 3-year warranty



SPECIFICATIONS

Shock and vibration 750 g/ms

Detector type 17μm, Uncooled, 50Hz

Standby Mode Yes

Resolution 384x288

Detection Range 1250m/yd

Snapshot Yes

Lens system 25 mm; F/1.0

Optical magnification 1.5x

Field of view (H × X) 14.9° x 11.2°

Digital zoom 2x, 4x, 8x, PIP

Eye relief 45 mm

Imaging palettes Jungle, Recognition

Display 0.39-inch, OLED, 1024 × 768

Storage Built-in EMMC (16 GB)

Record Video Yes

Battery Type Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries

Wi-Fi Yes

Battery Life (Operating) Up to 4.5 hr

External power supply 5V USB

Operating Temperature Range -20°C to +55°C (-4°F to +131°F)

Degree of Protection IP67

Weight 0.41 kg ( 0.91 lb)

Overall Dimensions 187.2 × 62.5 × 59.2 mm (7.37 × 2.46 × 2.33 in)

Data sheet

SA2VJE8NE4
