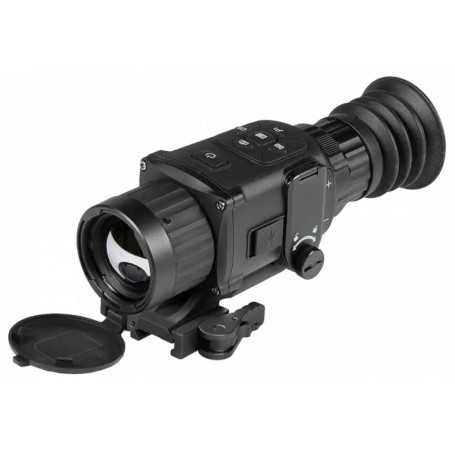

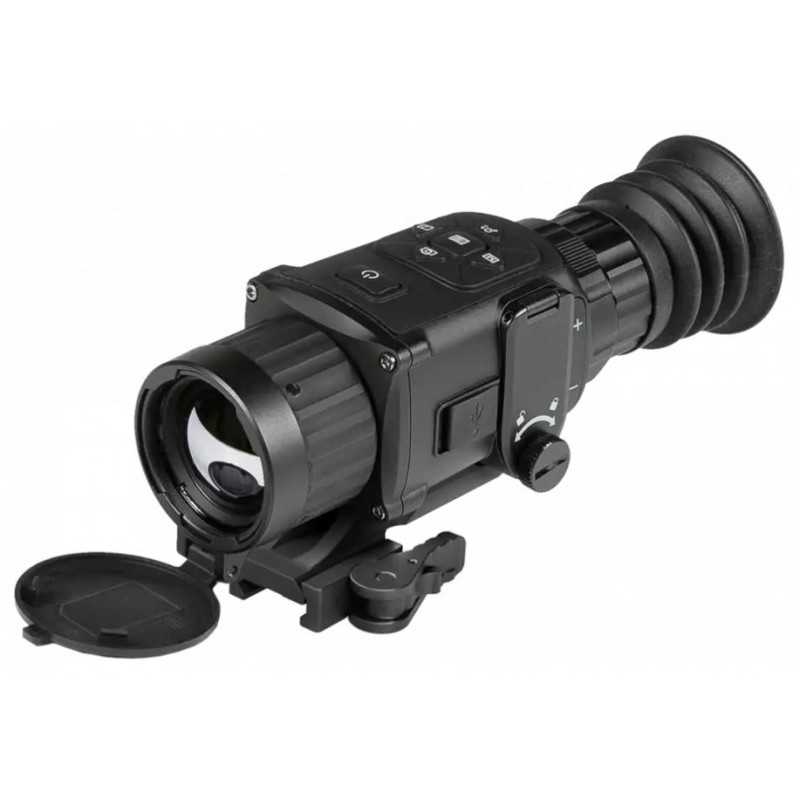

AGM Rattler TS35-384 - Thermal Weapon Sight

Introducing the AGM Rattler TS35-384 - a high-performance thermal weapon sight designed for unparalleled accuracy and reliability. Equipped with a 17µm, uncooled 50Hz detector, this powerful sight ensures rapid target acquisition and a fast refresh rate. Boasting a 384x288 resolution and 10.0° x 8.0° field of view (FOV), the Rattler TS35-384 provides crystal-clear images and enhanced situational awareness, making it the perfect choice for tactical operations and hunting adventures. The OLED 50Hz display offers exceptional visual quality, while the part unit 3092455005TH31 ensures compatibility with various weapon systems. Experience the next level of precision and performance with the AGM Rattler TS35-384 thermal weapon sight.

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The AGM Rattler TS25-384 and Rattler TS35-384 are the compact thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Two objective lens options allow the customer to choose perfect unit for your needs where 25 mm lens designed for short range shooting, while the 35 mm lens model will be great for medium range missions.

Thermal image riflescope has 384×288 thermal detector and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The device is used as a thermal rifle scope or handheld monocular. The scope is mainly applied to scenarios such as patrolling, and hunting, etc.

Powered with two CR123 batteries the AGM Rattler TS-384 gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.

  • 384 × 288 thermal resolution, high sensitivity detector
  • Image processing technology: Adaptive AGC, DDE, 3D DNR
  • 1024 × 768 resolution 0.39-inch OLED display
  • 8x digital zoom
  • Video recording and snapshot, built-in EMMC (16 GB)
  • Supports distance measurement
  • Adjustable color palettes
  • Wi-Fi data transmission
  • Waterproof, shockproof
  • Up to 4.5 hours continuous working
  • External power supply capability
  • Limited 3-year warranty



SPECIFICATIONS

Shock and vibration 750 g/ms

Detector type 17μm, Uncooled, 50Hz

Standby Mode Yes

Resolution 384x288

Detection Range 1750m/yd

Snapshot Yes

Lens system 35 mm; F/1.0

Optical magnification 2.14x

Field of view (H × X) 10.0° x 8.0°

Digital zoom 2x, 4x, 8x, PIP

Eye relief 45 mm

Imaging palettes Jungle, Recognition

Display 0.39-inch, OLED, 1024 × 768

Storage Built-in EMMC (16 GB)

Record Video Yes

Battery Type Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries

Wi-Fi Yes

Battery Life (Operating) Up to 4.5 hr

External power supply 5V USB

Operating Temperature Range -20°C to +55°C (-4°F to +131°F)

Degree of Protection IP67

Weight 511 g (1.13 lb)

Overall Dimensions 226 × 62 × 82 mm (8.9 × 2.4 × 3.2 in)
