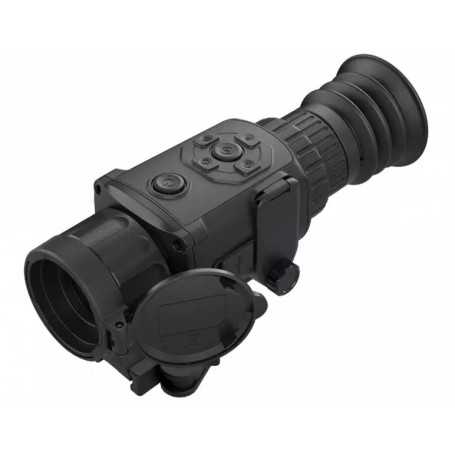

AGM Rattler TS35-640 - Thermal Weapon Sight
Introducing the AGM Rattler TS35-640, a high-performance thermal weapon sight designed to enhance your shooting accuracy and efficiency. Equipped with a 12µm uncooled detector and a 50Hz refresh rate, this thermal sight delivers crisp and clear images with a resolution of 640x512. Its field of view spans 12.5° x 10.0°, ensuring you have a wide coverage area while targeting. Part number: 3143755005R361. Upgrade your weapon setup today with this powerful, reliable, and cutting-edge thermal imaging solution – the AGM Rattler TS35-640.
2300 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
AGM Rattler TS35-640 is the compact thermal imaging scope developed for 24 hours operation under any weather and environmental conditions. This rifle scope with 35 mm Germanium lens is perfect unit for medium range shooting.
Thermal image riflescope has 640×512, 12μm thermal detector with 50 Hz refresh rate and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The device is used as a thermal rifle scope or handheld monocular. The scope is mainly applied to scenarios such as patrolling, hunting, etc.
Powered with two CR123 batteries the AGM Rattler TS35-640 gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.
- 640×512 thermal resolution
- 12 μm, 35 mK NETD high sensitivity detector
- Fast 50Hz imaging
- 1024×768 resolution, 0.39-inch OLED display
- 2x optical magnification
- 1x, 2x, 4x, 8x digital zoom
- Digital image processing technology
- Video recording and snapshot, built-in EMMC (16 GB)
- Various reticle types and colors
- Stadiametric rangefinder
- Adjustable color palettes
- Wi-Fi data transmission
- Standby mode
- Waterproof, shockproof
- Up to 4.5 hours continuous working
- External power supply capability
- Limited 3-year warranty
SPECIFICATIONS
Palettes Black Hot, White Hot, Red Hot, Fusion
Reticle 5 types, 4 colors, on/off
Drop Test Height 1.5m (4.9 feet)
Boresight Adjustment Digital Controlled
Distance Measurement Yes (Stadiametric Rangefinder)
Scene Mode Jungle, Recognition
Picture In Picture Mode (PIP) Yes (2× Zoom)
Video Recording Yes
Defective Pixels Correction (DPC) Yes
Uniformity Correction Auto, Manual, External Correction
Detector type 12μm, Uncooled, 50 Hz
Standby Mode Yes
Resolution 640 × 512
Detection Range 1,750m/yd
Lens system 35 mm; F/1.0
Optical magnification 2x
Field of view (H × X) 12.5° × 10.0°
Digital zoom 1×, 2×, 4×, 8×
Eye relief 45 mm
Display 0.39-inch, OLED, 1024×768, 50 Hz
Storage Built-in EMMC (16 GB)
Battery Type Two CR123 (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
CVBS Output Yes (via USB)
Battery Life (Operating) Up to 4.5 hr
External power supply 5 VDC/2 A, USB Type-C interface
Operating Temperature Range -20°C to +55°C (-4°F to +131°F)
Degree of Protection IP67
Weight 535 g (1.18 lb)
Overall Dimensions 187× 63 × 80 mm (7.4 × 2.5 × 3.1 in)
Package Includes Thermal Imaging Rifle Scope, Mount, USB Cable, Lens Cloth, Manual
Data sheet
