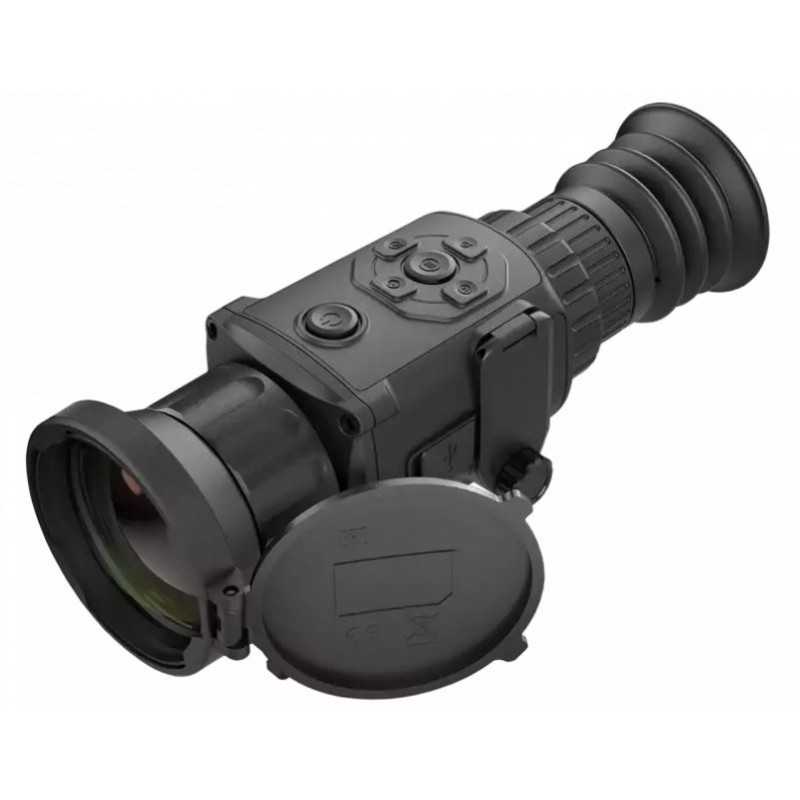

AGM Rattler TS50-640 Thermal Weapon Sight
Introducing the AGM Rattler TS50-640 Thermal Weapon Sight - a high-performance, compact and reliable imaging solution for your shooting needs. Equipped with a 12µm uncooled detector that operates at a 50 Hz refresh rate, it delivers crisp and clear 640x512 resolution images. With a field of view (FOV) of 8.8° x 7.0°, this sight offers broad coverage for easier target acquisition and tracking. Built for seamless integration with various weapon platforms, the AGM Rattler TS50-640 (Part Unit 3143555006RS51) is perfect for hunters, marksmen, and security personnel seeking a versatile and efficient thermal weapon sight.
2670 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
AGM Rattler TS50-640 is the compact thermal imaging scope developed for 24 hours operation under any weather and environmental conditions. This rifle scope with 50 mm Germanium lens and 20x digital zoom is perfect unit for long range shooting.
Thermal image riflescope has 640×512, 12μm thermal detector with 50 Hz refresh rate and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The device is used as a thermal rifle scope or handheld monocular. The scope is mainly applied to scenarios such as patrolling, hunting, etc.
Powered with two CR123 batteries the AGM Rattler TS50-640 gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.
- 640×512 thermal resolution
- 12 μm, 35 mK NETD high sensitivity detector
- Fast 50Hz imaging
- 1024×768 resolution, 0.39-inch OLED display
- 2.5x optical magnification
- 1x, 2x, 4x, 8x digital zoom
- Digital image processing technology
- Video recording and snapshot, built-in EMMC (16 GB)
- Various reticle types and colors
- Stadiametric rangefinder
- Adjustable color palettes
- Wi-Fi data transmission
- Standby mode
- Waterproof, shockproof
- Up to 4.5 hours continuous working
- External power supply capability
- Limited 3-year warranty
SPECIFICATIONS
Palettes Black Hot, White Hot, Red Hot, Fusion
Reticle 5 types, 4 colors, on/off
Drop Test Height 1.5m (4.9 feet)
Boresight Adjustment Digital Controlled
Boresight Increment 0.15 mil / 0.52 MOA
Distance Measurement Yes (Stadiametric Rangefinder)
Scene Mode Jungle, Recognition
Picture In Picture Mode (PIP) Yes (2× Zoom)
Video Recording Yes
Defective Pixels Correction (DPC) Yes
Uniformity Correction Auto, Manual, External Correction
Detector type 12μm, Uncooled, 50 Hz
Standby Mode Yes
Resolution 640 × 512
Detection Range 2,500m/yd
Lens system 50 mm; F/1.0
Optical magnification 2.5× - 20×
Field of view (H × X) 8.8° × 7.0°
Digital zoom 1×, 2×, 4×, 8×
Eye relief 45 mm
Display 0.39-inch, OLED, 1024×768, 50 Hz
Storage Built-in EMMC (16 GB)
Battery Type Two CR123 (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
CVBS Output Yes (via USB)
Battery Life (Operating) Up to 4.5 hr
External power supply 5 VDC/2 A, USB Type-C interface
Operating Temperature Rang -20°C to +55°C (-4°F to +131°F)
Degree of Protection IP67
Weight 605 g (1.33 lb)
Overall Dimensions 200 x 73 x 84 mm (7.8 × 2.9 × 3.3 in)
Package Includes Thermal Imaging Rifle Scope, Mount, USB Cable, Lens Cloth, Manual
Data sheet
