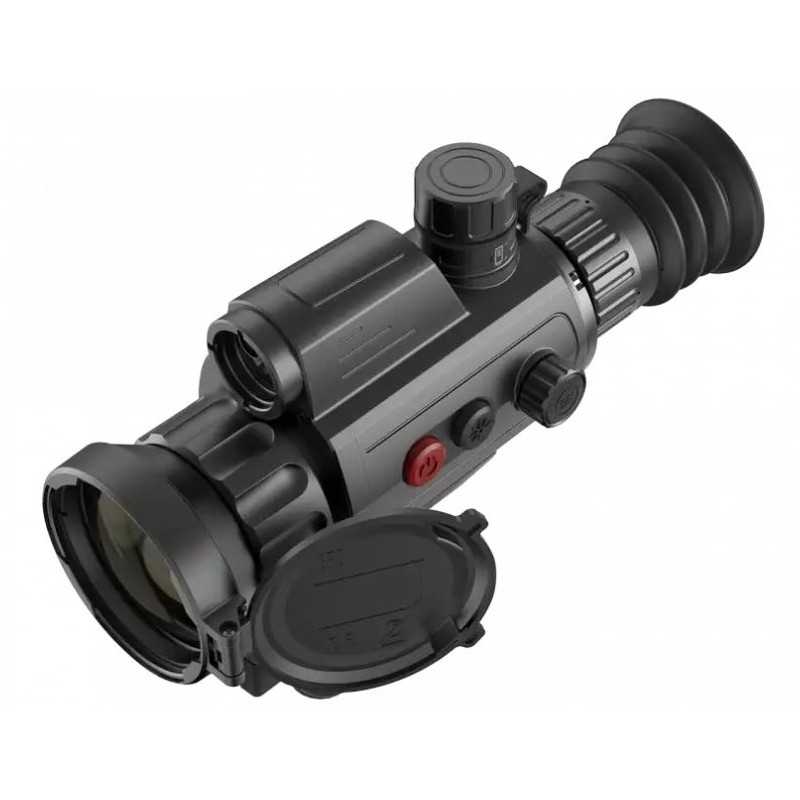

AGM Varmint LRF TS50-640 - Thermal Weapon Sight

The AGM Varmint LRF is a compact thermal imaging scope developed for 24-hour operation under any weather and environmental conditions. Available in multiple configurations: 384x288(50 Hz) thermal detector or 640x512 (50 Hz) thermal detector, and 35mm or 50mm objective lens. These options allow the customer to choose the perfect unit for their needs. The 35mm lens is designed for medium-range applications, while the 50mm lens will be better suited for long-range engagements. Equipped with a highly sensitive, 12μm thermal detector and 1024×768 OLED monitor, the AGM Varmint LRF provides a clear image under harsh environment conditions including darkness, fog, smoke, dust, rain, snow, brush, camouflage, etc. The device can be used as a thermal riflescope or handheld monocular, and can be applied to scenarios such as patrolling, hunting, static observation, and more. The built-in laser range finder of the AGM Varmint LRF is designed to determine the exact distance between the observer and the target. Measurement results are displayed on the scopes monitor. One 18650 rechargeable battery gives the device up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB to USB-C connector for a significant increase of operating time. The device is equipped with fast EMMC storage for on board video recording and image capturing. An internal Wi-Fi module for live video streaming and video/image recording via application are also included.

• 12μm high sensitivity thermal detector
• Fast 50Hz imaging
• 1x, 2x, 4x, 8x Digital zoom
• Adjustable color palettes
• Built-in laser rangefinder
• High resolution OLED display
• Various reticle types and colors
• On-board video recording and snapshot
• Built-in EMMC storage (16 GB)
• Wi-Fi data transmission
• Standby mode
• Up to 4.5 hours continuous runtime
• External power supply compatibility
• Waterproof & shockproof
• Limited 3-year warranty

SPECIFICATIONS

Palettes Black Hot, White Hot, Red Hot, Fusion

Reticle 5 types, 4 colors, on/off

Drop Test Height 1.5 m (4.9 ft)

Boresight Adjustment Digital Controlled

Boresight Increment 0.15 mil / 0.51 MOA

Scene Mode Yes

Picture In Picture Mode (PIP) Yes

Hotspot Yes

Detector type 12 μm VOx Uncooled Focal Plane Arrays

Response Waveband 8 μm to 14 μm

FFC (Flat Field Correction) Auto, Manual, External Correction

Highest Temperature Spot Tracking Yes

Standby Mode Yes

Refresh rate Sensor 50Hz / OLED 50Hz

Aperture F1.0

Resolution 640 × 512

Laser Rangefinder Up to 600 m, ±2 m accuracy

Laser Wavelength 905 nm

Detection Range 2,500m/yd

Optical magnification 2.5x – 20x

Lens (focal length) 50 mm

Field of view (H × X) 8.78° × 7.03°

Digital zoom 1x, 2x, 4x, 8x

Monitor 1024x768, 0.39 inch, OLED

Eye relief 45 mm

Storage Built-in 16 GB EMMC

Record Video On-board video recording

Capture Snapshot Yes

Battery Type One 18650 (3.7V) Lithium Rechargeable Batteries

CVBS Output Yes (via USB)

Battery Operating Time Up to 4.5 hours

Battery Capacity Display Yes

External power supply 5 VDC/2 A, USB Type-C

Operating Temperature Range -20°C to 55°C (-4°F to 131°F)

Weight 722 g (1.59 lb)

Overall Dimensions 210 x 74 x 109 mm (8.3 × 2.9 × 4.3 in)

Protection Level IP67
