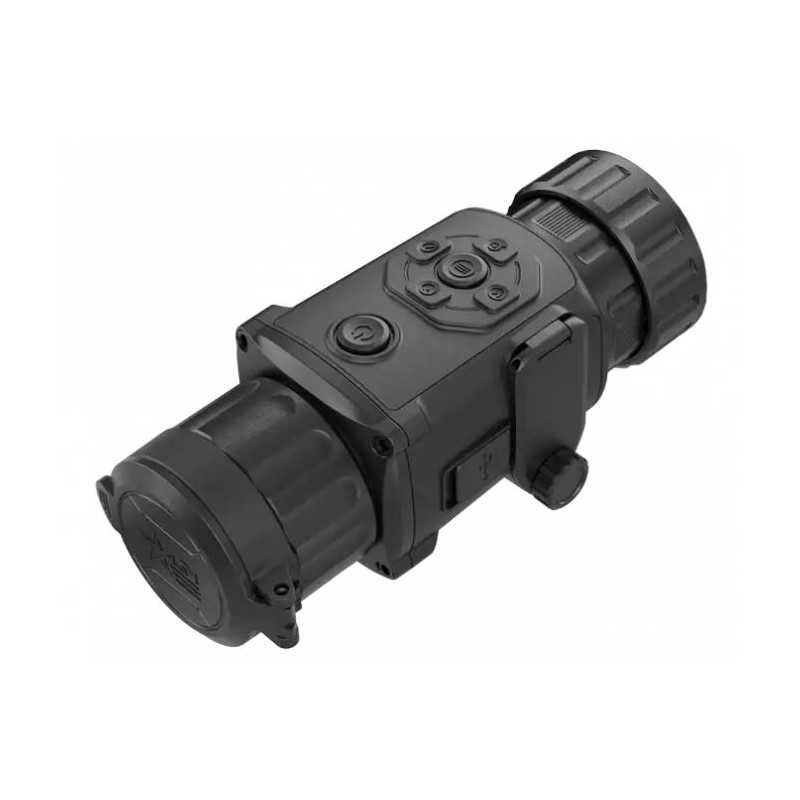

AGM Rattler TC19-256 - Thermal Clip-On System
Introducing the AGM Rattler TC19-256 Thermal Clip-On System, a cutting-edge device designed to enhance your night vision capabilities. Equipped with a 12 µm VOx Uncooled Focal Plane Array detector, this advanced system offers a smooth 25 Hz refresh rate to ensure clear and seamless imaging. With a resolution of 256 x 192 and a Field of View (FOV) of 9.2° x 6.9°, you'll gain better situational awareness in low-light conditions. The versatile AGM Rattler TC19-256 (Part Unit 3092856003TC91) is the ultimate addition to your tactical gear for superior nighttime performance and reliability.
870 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The AGM Rattler TC19-256 is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. Rattler TC19-256 has high sensitivity 12μm thermal detector with 256×192 resolution and 1024x768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc.
The product is mainly applied to scenarios such as patrolling, hunting, etc. The Rattler TC19-256 can easily be attached in front of rifle scopes with magnification up to 6x for short range use.
Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.
- Quick conversion of daytime optics into thermal imaging scope
- 12μm high sensitivity detector
- 256×192 thermal resolution
- 1024x768 resolution 0.39-inch OLED display
- 8x digital zoom
- Video recording and snapshot, built-in EMMC (16 GB)
- Supports distance measurement
- Adjustable color palettes
- Wi-Fi data transmission
- Waterproof, shockproof
- Up to 4.5 hours continuous working
- External power supply capability
- Limited 3-year warranty
SPECIFICATIONS
Palettes Black Hot, White Hot, Red Hot, Fusion
Shock and vibration 750 g/ms
Exit Pupil Diameter 22 mm
Distance Measurement Yes (Stadiometric Rangefinder)
Scene Mode Jungle, Recognition
Detector type 12 μm VOx Uncooled Focal Plane Arrays
Response Waveband 8 μm to 14 μm
FFC (Flat Field Correction) Auto, Manual, External Correction
Highest Temperature Spot Tracking Yes
Standby Mode Yes
Refresh rate Sensor 25 Hz / OLED 50 Hz
Resolution 256 x 192
Detection Range 950m/yd
Lens system 19 mm, F1.0
Optical magnification 1x
Power 5 VDC/2 A, USB Type-C interface Supports external power supply
Mounting Optional Front Quick Release Adapters for different front lens diameter or Quick Release Mount for Picatinny/Weaver rail
Field of view (H × X) 9.2° x 6.9°
Monitor 1024x768, 0.39 inch, OLED
Storage 16 GB EMMC
Record Video On-board video recording
Capture Snapshot Yes
Battery Type Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
CVBS Output Yes (via USB)
Battery Operating Time Up to 4.5 hours continuous running (@25°C, WiFi off) Up to 4.0 hours continuous running (@25°C, WiFi on)
Battery Capacity Display Yes
Operating Temperature Range -20°C to 55°C (-4°F to 131°F)
Overall Dimensions 153 mm × 62 mm × 59 mm (6.0 × 2.4 × 2.3 in)
Protection Level IP67
Data sheet
