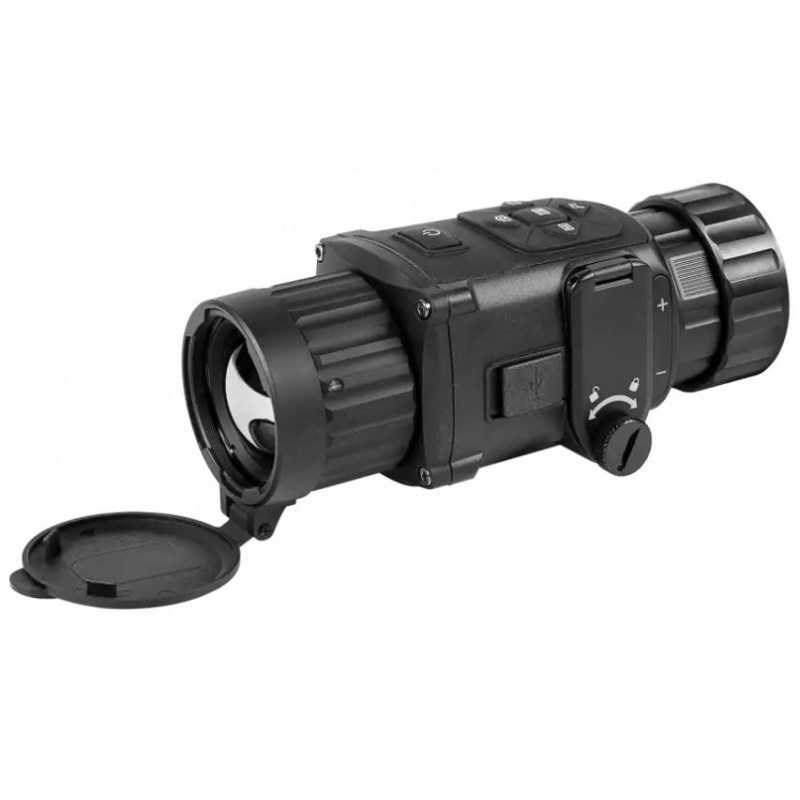

AGM Rattler TC35-384 - Thermal Clip-On System
Introducing the AGM Rattler TC35-384, a cutting-edge thermal clip-on system featuring a 17μm uncooled detector with a refresh rate of 50Hz for seamless thermal imaging. This reliable and high-performance device boasts a resolution of 384x288, providing clear and detailed visibility in various environments. The Rattler TC35-384 is perfect for enhancing your nighttime vision capabilities, adding versatility to a range of outdoor applications, such as hunting, security, and wildlife observation. Equip your gear with the AGM Rattler TC35-384 (Part Unit 3092456005TC31) and experience the unparalleled advantage of advanced thermal imaging technology.
1630 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The AGM Rattler TC35-384 is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. Rattler TC35-384 has 384×288 thermal detector and 748×561 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The product is mainly applied to scenarios such as patrolling, hunting, etc. The Rattler TC35-384 can easily be attached in front of rifle scopes with magnification up to 8x for medium range use. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.
- Quick conversion of daytime optics into thermal imaging scope
- 384×288 thermal resolution, high sensitivity detector
- Image processing technology: Adaptive AGC, DDE, 3D DNR
- 748 × 561 resolution 0.39-inch OLED display
- 8x digital zoom
- Video recording and snapshot, built-in EMMC (16 GB)
- Supports distance measurement
- Adjustable color palettes
- Wi-Fi data transmission
- Waterproof, shockproof
- Up to 4.5 hours continuous working
- External power supply capability
- Limited 3-year warranty
SPECIFICATIONS
Shock and vibration 750 g/ms
Detector type 17μm, Uncooled, 50Hz
Standby Mode Yes
Resolution 384x288
Detection Range 1750m/yd
Snapshot Yes
Lens system 35 mm; F/1.0
Optical magnification 1x
Field of view (H × X) 10.0° x 8.0°
Digital zoom 2x, 4x, 8x
Imaging palettes Jungle, Recognition
Display Yes
Storage Built-in EMMC (16 GB)
Video/Photo Format Yes
Battery Type Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
Wi-Fi Yes
Battery Life (Operating) Up to 4.5 hr
External power supply 5V USB
Operating Temperature Range -20°C to +55°C (-4°F to +131°F)
Degree of Protection IP67
Weight 0.42 kg (0.93 lb)
Overall Dimensions 153.2 × 62.5 × 59.2 mm (6.03 × 2.46 × 2.33 in)
