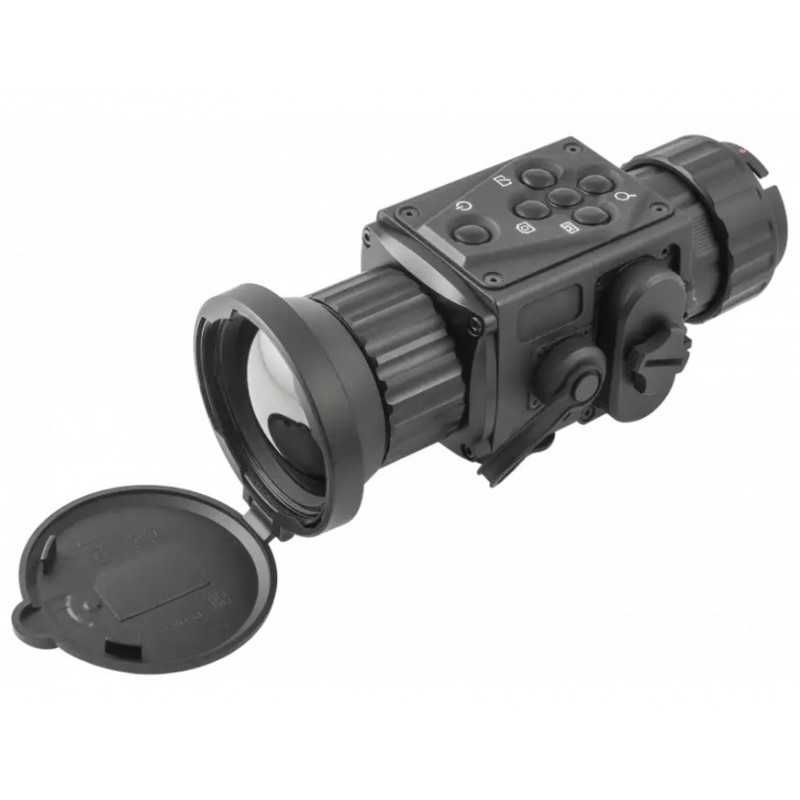

AGM Victrix Pro TC50-384 - Thermal Clip-On System
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The AGM Victrix PRO is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment.
Victrix PRO has a high-sensitivity thermal detector with and a 1024x768 OLED monitor, which provides a clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The product is mainly applied to scenarios such as patrolling, hunting, etc. The Victrix PRO can easily be attached in front of rifle scopes with magnification up to 8x for medium range use.
Powered with two CR123 batteries the AGM Victrix PRO gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. The device is equipped with 16 GB storage for on-board video recording and image capturing. Onboard Wi-Fi module is also available for live video streaming and video/images recording via mobile application.
- Quick conversion of daytime optics into thermal imaging scope
- Mounts in front of any daytime scope, no re-zeroing is required
- High sensitivity detector
- 384x288 or 640×512 thermal resolution
- 1024x768 resolution 0.39-inch OLED display
- Automatic or manual (silent) calibration
- Up to 8x digital zoom
- Video recording and snapshot
- Built-in 16 GB EMMC memory module
- Supports distance measurement
- Adjustable color palettes
- Wi-Fi data transmission
- Waterproof, shockproof
- Up to 4.5 hours continuous working
- External power supply capability
- Limited 3-year warranty
SPECIFICATIONS
Shock and vibration 750 g/ms
Distance Measurement Yes (Stadiametric Rangefinder)
Scene Mode Jungle, Recognition
Hotspot Yes
Uniformity Correction Auto, Manual, External Correction
Detector type 12 μm VOx Uncooled Focal Plane Arrays
Response Waveband 8 μm to 14 μm
Highest Temperature Spot Tracking Yes
Standby Mode Yes
Refresh rate 50 Hz
Detection Range 2500 m/yd
Snapshot Yes
Lens system 35 mm, F1.0
Optical magnification 1x
Power 5 VDC/2 A, USB Type-C interface Supports external power supply
Mounting Optional Front Quick Release Adapters for different front lens diameter or Quick Release Mount for Picatinny/ Weaver rail
Field of view (H × X) 7.5° × 5.6°
Storage 16 GB EMMC
Record Video On-board video recording
Battery Type Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
CVBS Output Yes (via USB)
Battery Operating Time Up to 4.5 hours continuous running
Battery Capacity Display Yes
Weight 0.62 kg ( 1.36 lb)
Working Temperature/ Humidity -20°C to 55°C (-4°F to 131°F)
Overall Dimensions 166 × 82 × 66 mm (6.5 × 3.2 × 2.6 in)
Protection Level IP67
